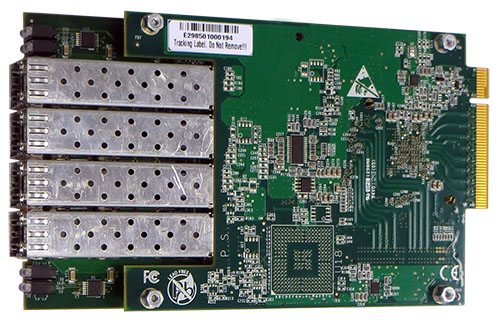

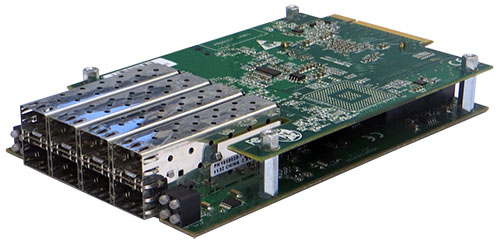

M1E2G8SPi35 SFP Express Module
Eight Port SFP Gigabit Ethernet Express Module Server Adapter
Silicom’s Eight Port SFP Gigabit Ethernet ExpressModule Server adapter is PCI-Express X8 Eight SFP Gigabit Ethernet network interface card that can fit into a 3.5” HD form factor.
The Silicom Eight Port SFP ExpressModule is the front I/O module in Silicom Server to Network Appliance Converter (SETAC) architecture.
Silicom’s Eight Port SFP Gigabit Ethernet ExpressModule Server adapter is designed for Servers and high-end appliances.
The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.
Silicom’s Eight Port SFP Gigabit Ethernet ExpressModule server adapters are based on Intel I350 Ethernet controller with quad fully integrated Gigabit Ethernet Media Access Control (MAC) and PHY.
Silicom’s Eight Port SFP Gigabit Ethernet ExpressModule server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
M1E2G8SPi35 SFP Express Module
Eight Port SFP Gigabit Ethernet Express Module Server Adapter
SFP Gigabit Ethernet:
- Gigabit Ethernet Adapters with SFP cage support:
- 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
- 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
- 1000Base-T (1000Mbit/s) Copper Gigabit Ethernet with 1000Base-T SFP transceiver
- Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
- 2PortLink synchronization
- Optional SGMII mode (future support)
Performance Features:
- 8 Transmit and 8 Receive queues per port.
- Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems.
- Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
- Support for up to 8 virtual function ( VFs)
- Partial replication of PCI Configuration space
- Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
- Support Direct Cache Access (DCA)
- Support Intel I/O Acceleration Technology v3.0
- TSO interleaving for reduced latency
- Minimized number of device I/O interrupts using MSI and MSI-X
- UDP, TCP and IP checksum offload
- UDP and TCP transmit segmentation offload (TSO). machine
- SCTP receive and transmit checksum offload
- Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
- EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods
Common Key features:
- PCI Express ExpressModule Electromechanical Specification Revision 1.0
- PCI Express Base Specification 2.1 (5 GTs)
- High performance, reliability, and low power use in Intel I350 Quad integrated MAC + PHY and SERDES chip Controllers
- Ultra deep, packet buffer per channel lowers CPU utilization
- Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
- Server class reliability, availability and performance features:
- Link Aggregation and Load Balancing
- Priority queuing – 802.1p layer 2 priority encoding
- Virtual LANs –802.1q VLAN tagging
- Jumbo Frame (9.5KB).
- 802.x flow control
- Multicast/ broadcast Packet replication on receive
- Supports Vital Product Data (VPD)
- LEDs indicators for link/Activity status
- Hot Plug not supported. Can be supported by assembly change
M1E2G8SPi35 SFP Express Module
Eight Port SFP Gigabit Ethernet Express Module Server Adapter
SFP Gigabit Ethernet Technical Specifications -(SFP) Adapters: |
|
| SFP (Small Form Factor Pluggable) supports: | 1 Gbit SERDES interfaces supports 1000Base-X in order to connect with SFP to 1000Base-SX / 1000Base-LX / 1000Base-T SFP transceivers. |
| IEEE Standard / Network topology: with 1000Base-T SFP |
Gigabit Ethernet (1000Mbit/s only), 1000Base-T, |
| IEEE Standard / Network topology: with 1000Base-SX SFP |
Fiber Gigabit Ethernet, 1000Base-SX (850nM) |
| IEEE Standard / Network topology: with 1000Base-LX SFP |
Fiber Gigabit Ethernet, 1000Base-LX (1310nM) |
Operating Systems Support |
|
| Operating system support: | Windows Linux VMware |
General Technical Specifications |
|
| Interface Standard: | PCI ExpressModule Specification revision 1.0 Silicom SETAC PCI-Express Base Specification Revision 2.0 ( 5 GTs) |
| Board Size: | 168.2mm x 98mm (6.62”X3.858”) |
| PCI Express Card Type: | X8 |
| PCI Express Voltage: | +12V +- 8% |
| PCI Connector: | Gold Finger: X8 |
| Controller: | Intel i350AM4 |
| Holder: | Not included |
| I/O: | 8 x SFP located on edge of the board |
| Weight: | 270 gram (9.524 oz) |
| Power Consumption: | 16.44 W, 1.37 A at 12V: Typical all ports operate at 1000 BASE-LX 14.28 W, 1.19 A at 12V: Typical all ports operate at 1000 BASE-SX 20.04 W, 1.67 A at 12V: Typical all ports operate at 1000 BASE-T 15.84 W, 1.32 A at 12V: No links in all ports operate with LX transceivers. 9.84 W, 0.82 A at 12V: No links in all ports operate with SX transceivers 11.88 W, 0.99 A at 12V: No links in all ports operate with Copper transceivers 9.72 W, 0.81A at 12V: no transceivers |
| Operating Temperature: | -5°C – 40°C (23°F – 104°F) |
| Storage: | -40°C–65°C (-40°F–149°F) |
| EMC Certifications: | FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |
| MTBF: | 93 (years) * According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 40°C |
LEDs |
|
| LEDs: | Each port has its Yellow- Green bi- color Link speed LED: Turns on Yellow for 1G Link. Blinks on Yellow for 1G activity. Turns on Green for 100M Link. Blinks on Yellow for 100M activity |
| LEDs location: | LEDs are located on the PCB, visible via holes in the pannel. Each port has its Yellow- Green bi- color Link speed LED |
| Connectors: | (4) Dual Small Form Factor Pluggable (SFP) Cage (2X1) |
M1E2G8SPi35 SFP Express Module
Eight Port SFP Gigabit Ethernet Express Module Server Adapter
P/N |
Description |
Notes |
| M1E2G8SPI35-X-R | Eight Port SFP Gigabit Ethernet ExpressModule Server Adapter | X8, Based on Intel i350AM4, PCI-E ExpressModule, RoHS compliant |
| M1E2G8SPI35-SX-R | Eight Port Fiber (SX) Gigabit Ethernet ExpressModule Server Adapter | X8, Based on Intel i350AM4, PCI-E ExpressModule, RoHS compliant, SX |
| M1E2G8SPI35-LX-R | Eight Port Fiber (LX) Gigabit Ethernet ExpressModule Server Adapter | X8, Based on Intel i350AM4, PCI-E ExpressModule, RoHS compliant, LX |
-R: RoHS Compliant / Lead free adapter
-C: with canister
Advanced features may require driver software support
