M1E2G8i35 ExpressModule Card

Eight Port Copper Gigabit Ethernet Express Module Server Adapter

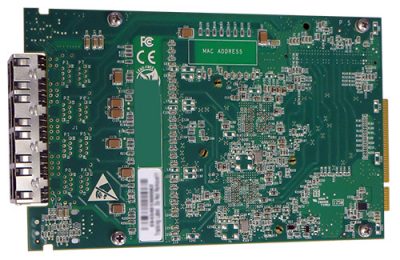

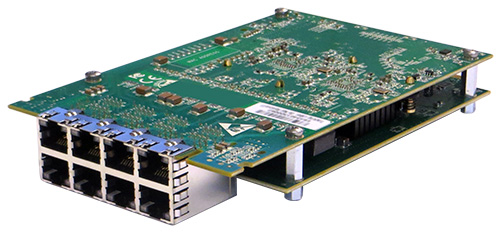

Silicom’s Eight Port Copper Gigabit Ethernet ExpressModule Server adapter is PCI-Express X8 Eight Copper Gigabit Ethernet network interface card that can fit into a 3.5” HD form factor.

The Silicom Eight Port Copper ExpressModule is the front I/O module in Silicom Server to Network Appliance Converter (SETAC) architecture.

Silicom’s Eight Port Copper Gigabit Ethernet ExpressModule Server adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.



Silicom’s Eight Port Copper Gigabit Ethernet ExpressModule server adapters are based on Intel i350 Ethernet controller with quad fully integrated Gigabit Ethernet Media Access Control (MAC) and PHY.

Silicom’s Eight Port Copper Gigabit Ethernet ExpressModule server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

M1E2G8i35 ExpressModule Card

Eight Port Copper Gigabit Ethernet Express Module Server Adapter

Copper Gigabit Ethernet 1000Base-T :

• Independently copper Gigabit Ethernet channels support four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).
• Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
• Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex
• RJ-45 female connectors.

Performance Features:

• 8 Transmit and 8 Receive queues per port
• Up 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
• Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
• Support for up to 8 virtual function ( VFs)
• Partial replication of PCI Configuration space
• Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
• Support Direct Cache Access (DCA)
• Support Intel I/O Acceleration Technology v3.0.
• TSO interleaving for reduced latency
• Minimized number of device I/O interrupts using MSI and MSI-X
• UDP, TCP and IP checksum offload
• UDP and TCP transmit segmentation offload (TSO). machine
• SCTP receive and transmit checksum offload
• Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
• EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods

Common Key features:

• PCI Express ExpressModule Electromechanical Specification Revision 1.0
• PCI Express Base Specification 2.1 (5 GTs)
• High performance, reliability, and low power use in Intel I350 Quad integrated MAC + PHY and SERDES chip Controllers
• Ultra deep, packet buffer per channel lowers CPU utilization.
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
• Server class reliability, availability and performance features:
• Link Aggregation and Load Balancing
• Priority queuing – 802.1p layer 2 priority encoding.
• Virtual LANs –802.1q VLAN tagging.
• Jumbo Frame (9.5KB)
• 802.x flow control
• Multicast/ broadcast Packet replication on receive
• Supports Vital Product Data (VPD)
• LEDs indicators for link/Activity status
• Hot Plug not supported. Can be supported by assembly change
