uCPE Madrid Desktop

uCPE Based on Intel Atom® C3000 Processor

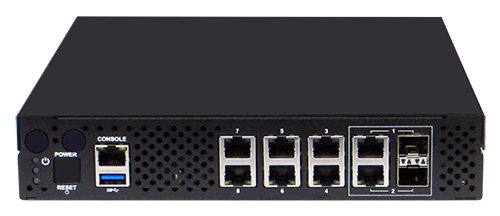

uCPE Madrid Desktop 8 ports

Silicom’s uCPE are based on the Intel Atom® C3000 Processor product line is a highly flexible network edge device that brings the agility of modular LAN, WAN, management, and compute to cost-sensitive applications in SD-WAN, uCPE, security, small cell, and IoT. The Madrid platform has two form factors: Desktop and 1U. The 1U support PCIe add in card.


Use Cases:

uCPE Madrid Desktop

uCPE Based on Intel Atom® C3000 Processor

General Technical Specifications – Madrid uCPE Desktop Specification

CPU Intel Atom® C3958 Processor/16C/2.0 GHz/TDP 31W
Intel Atom® C3858 Processor/12C/2.0 GHz/TDP 25W
Intel Atom® C3758 Processor/8C/2.2 GHz/TDP 25W
Intel Atom® C3558 Processor/4C/2.2 GHz/TDP 16W
Intel Atom® C3338 Processor/2C/1.5 GHz/TDP 8.5W
BIOS Coreboot
BIOS Flash SPI – Dual redundant
Operating System Linux
Memory Two Channels, Memory Down, SODIMM, Up to 32GB, ECC Support, 2400 MTs
Storage Soldered down eMMC,
M.2 M-Key SATA (supports for 2230/42/60/80), J13
M.2 B-Key SATA or PCIe x1G3( HSIO config) / USB2 and USB3 (support for 2230/42/60/80), J22
1xSATA for 2.5” SSD/HDD: J17
1xSATA DOM ( SATA DOM supports +5V): J16
Ethernet ports Up to 8 ports:
2 x1GbE RJ45 x via C3000 through Marvell 88E1514P,
4x 1GbE RJ45 via i350AM4 (with optionaal +2x1GbE (POE+), or 2x 1GbE RJ45 w/ i350AM2 no POE+.
2x 1GbE Combo (UTP or SFP), 2x via C3000 through Marvell 88E1543, SFP slots support 3W each.
Supports for SR-IOV
Console RS232 RJ45 (Cisco pinout) on front panel
USB 3.0 1x USB 3.0 on front panel
mPCIe 2x mini PCIe expansion slots
PCIe Expansion Not supported
LTE mini-PCIe Slot. PCIe x1G3 or USB 3.0 and USB 2.0. Externally accessible SIM slot on CS/ PCB. J9
M.2 LTE Slot (B-Key). USB 3.0 USB 2.0 Externally accessible SIM sloton PS/ PCB J30
WiFi Support for 2x mini-PCIe slots which supports simultaneous dual-band
Buttons Reset Button (programmable through 8051 MCU)
Short tap (<7 seconds) will cause platform reset.
Long tap (>7 seconds) will be used for resetting to defaults.
Power Button (programmable through 8051 MCU)
Very short tap filter (< 2 seconds) – tap shorter than 2 second will be filtered
Short tap (>2 seconds ) – initiate graceful shutdown to host CPU
Long tap (>13 seconds) – hard shutdown for immediate power off
LED’s Tri-color Power LED
Tri-color Status LED (programmable)
LED’s integrated in RJ45’s
Other Hardware Battery for RTC
Programmable FAN controller
Form Factor Desktop Form Factor, (WxDxH) = 222x241x44mm
Rack Mount option
Wall Mount option
OEM branding option
Power 12V@90W External Power Adapter with locking connector.
Optionional addition 12V@90W External Power Adapter with locking connector for redundency.
Optional: 54V@65W External Power Adapter with locking connector for POE+ ports
Optional: Dying Gasp
Cooling Number of Fans TBD, Design supports 2 FAN
Sensors/Monitors Thermal protection
Critical Error Detection
Voltage monitors
Current protection
Operating Temperature 0°C – 40°C
Storage Temperature -20°C – 70°C


  • FCC 47CFR part 15: 2019, subpart B, Class B ICES-003: 2017 Issue 6, Class B
  • VCCI-CISPR 32: 2016, Class B
  • AS/NZS CISPR 32: 2015, Class B
  • EN 55032: 2015 + A1(20) + A11(20), Class B
  • CISPR 32: 2015 + A1(19), Class B
  • EN 301 489-52: V1.1.0: 2016 (draft), Class B
  • EN 301 489-17: V3.2.2: 2019 (draft), Class B
  • EN 301 489-1: V2.2.3: 2019, Class B
  • EN 55035: 2017 + A11(20)
  • CISPR 35: 2016
  • EN 300 386 V2.1.1: 2016, Class B
  • EN 300 386 V1.6.1: 2012, Class B


  • IEC 62368-1:2014 (Second Edition)
  • IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013
  • CSA C22.2 NO. 62368-1-14, 2nd Ed., Issue Date: 2014-12-01
  • UL 62368-1, 2nd Ed., Issue Date: 2014-12-01

Carriers (LTE – Sierra EM7455):

  • Verizon Wireless
  • AT&T

GMA (Global Market Access):

  • CCC (China)
  • BIS (India)
  • MIC (Vietnam) – only 90500-0151-G61
  • NBTC (Thailand) – only 90500-0151-G61
  • RCM (Australia)
  • PSE (Japan)
  • Anatel (Brazil)
  • El Salvador
  • KC (S.Korea)
  • JATE&TELEC (Japan)
  • NICE (Mexico)

RoHS Directive 2011/65/EU and 2015/863
EN 50581:2012

* According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 40°C

uCPE Madrid Desktop

uCPE Based on Intel Atom® C3000 Processor

uCPE Desktop






90500-0151-G03 uCPE, Desktop/C3758(8C)/16GB DDR4 w/ECC/ 128GB M.2/6x1GbE IA3001 IA3001.01 w/o Dying Gasp, including +12V Power supply
90500-0151-G01 uCPE, Desktop/ C3558(4C)/8GB DDR4 w/ECC/ 64GB EMMC/6x1GbE IA3001 IA3001.02 w/o Dying Gasp, including +12V Power supply
90500-0151-G04 uCPE, Desktop/C3338(2C)/4GB DDR4 w/ECC/ 32GB EMMC / 6x1GbE IA3001 IA3001.03 w/o Dying Gasp, including +12V Power supply
90500-0151-G14 uCPE, Desktop/C3338(2C)/ 4GB DDR4 w/ECC/32GB M.2 /8x1Gb (2- POE ports) IA3001 IA3001.04 w/o Dying Gasp, including +12V Power supply, including +54V Power supply
