Seville 1U Networking Appliance Series

Universal CPE supporting up to 22 core Intel® Xeon® D-2700/D-2800 processors

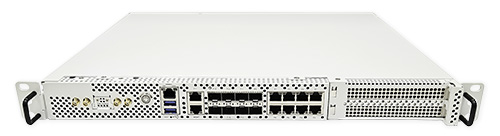

Silicom Seville Networking Appliance

Seville 1U Networking Appliance features a Next-gen Intel® Xeon® D-2700/D-2800 processors designed to deliver server-class computing, cyber security, and high-bandwidth with built-in AI acceleration, Deep Learning Boost and powerful real-time capabilities. The Seville is designed for fast network processing and cutting-edge developments including next-generation WAN optimization and security.

The Seville platform is a groundbreaking solution that creates an excellent platform for developing applications in the fields of networking uCPE SD-WAN, SASE, SSE, 5G DU and IoT Edge Computing. Its outstanding features allow it to improve packet processing performance while also providing network security within virtual network functions.

Based on Intel’s Xeon® D-2700/D-2800 the Seville Networking appliance can run multiple virtual machines and control systems. With its high-capacity support that includes real-time systems as well as Hypervisor Support, it consolidates many different types of workloads providing a one-stop-solution Networking Edge Appliance.

The Seville is a family of products powered by the Intel Ice Lake-D HCC (High Core Count) SoC, built using Intel 10-nanometer process technology. The Intel® Xeon® D-2700/D-2800 Processors are high-performance SoCs with integrated Ethernet in high-density Ball-Grid Array packages. They deliver server-class computing, hardware-based security, and high-bandwidth I/Os for embedded and rugged applications at the edge.​ The Intel® Xeon® D-2700/D-2800 Processors with Integrated AI acceleration, QAT, support for hard-real-time workloads, extreme temperature range and industrial use conditions. This makes them ideal for demanding applications in high-bandwidth video analytics, as well as manufacturing, aerospace, etc.

Seville 1U Networking Appliance Series

Universal CPE supporting up to 22 core Intel® Xeon® D-2700/D-2800 processors

  • Intel® Xeon® D-2700/D-2800 Platform. Support 22,20,16, and 12-core CPU SKUs
  • Memory support up to 128GB DDR4
  • Supports a Dual x4 PCIe NVMe
  • Networking
    • 4x 1G/10G SFP+
    • 4x 10G/25G SFP28
    • 8x 1GBE RJ45
    • 1x 2.5GbE MGMT
  • Redundant 1+1 800W AC Power Supplies
  • Commercial Temperature
  • Enclosure depth 14.6’’/430mm
  • 2x PCIe x16 Gen4 Full-Height ¾-Length: Bypass, ACCL, additional Networking
  • 2x USB3.0 front-panel I/O ports, 1x USB3.0 Internal
  • TPM support for Secure Boot.
  • BMC with in-band support

Seville 1U Networking Appliance Series

Universal CPE supporting up to 22 core Intel® Xeon® D-2700/D-2800 processors

General Technical Specifications

CPU Intel® Ice Lake-D HCC CPU Processor, Supports all NAC-enabled SKUs.
Cores: 12C – 22C
TDP: 87W – 135W
Max: 2.2Ghz
System Memory
  • Four channel 288-pin DDR4 DIMM sockets (SKU Dependent)
  • Single rank or dual rank per DIMM channel
  • 1x DIMM per channel
  • Speeds up to DDR4-3200 MT/s
  • Supports 8GB – 64GB registered DIMMs (RDIMM) or unbuffered DIMMs (UDIMM), ECC or non-ECC.
  • Max total 512GB
Storage
  • SOC eMMC 5.1 (4GB to 256GB options)
  • Multiple NVMe configurations through PCIe expansion ports
  • Supports Two SATA Gen 3 6Gbps on-board connectors and one on-board 12V/5V power connector for internal 2.5” HDDs.
Network Interfaces
  • CPU/SoC LAN
    • QUAD0: 4x SFP28 (option to support only 2x SFP28). Supports 1G,10G, 25G (SKU Dependent)
    • QUAD1: 4x SFP+ Supports 1G,10G (SKU Dependent)
  • One 2500Base-T (Intel i226) CPU/SoC LAN
  • Eight 1000Base-T (2 x Intel i350) CPU/SoC LAN
PCIe x32 Riser Connector
  • Supports 2×16 PCIe Gen4
  • Includes Power Blades for 12V and 3.3V – powers two 75W PCIe add-in cards. Riser card provides 12V AUX power to PCIe add-in cards.
  • 4C+ (168 position) and 1C (56 position) connectors
  • Supports Riser Card and Cabling options.
  • Riser options to support multiple PCIe Cards
  • Two PCIe clocks provide support for 2×16 Gen4
NVMe Riser Connector
  • Supports x8 PCIe Gen 3
  • Supports up to two x4 NVMe 2242/2280 cards
Wireless Expansion Board Connector
  • Supports 2x HSIO which can be configured as follows:
    • 2x PCie
    • 1x PCIe, 1x USB3.0
  • Sideband signals for wireless module
  • Intended use case is LTE/5G modem module.
  • MCIO board-to-wire connector
BMC
  • Aspeed AST2620
  • Thermal monitor/fan control
  • DC Voltage monitors
  • Remote Updates
  • Remote Power MGMT
  • In-band Management
  • Serial over LAN
  • eMMC 5.1, 8GB
  • Internal 100Base-TX Ethernet port for in-band management to Silicom NIC’s
  • 1000Base-T management port
Console
  • RS232 RJ-45 (Cisco pinout)
  • Supports auto-detect
USB
  • 2x USB3.0 front-panel I/O ports
  • 1x USB3.0 Internal
Buttons
  • 1x momentary power button
  • 1x recessed reset button
LEDs
  • Three front-panel programmable RGB/Amber LED’s
Security
  • TPM2.0
  • Hardware root of trust/ Intel PFR
  • Intrusion switch support over header
Fans
  • Support up to 7 fans
Debug
  • Intel XDP Connector
  • ICE Debugger for Aspeed BMC
  • JTAG Support for single-chain scan for manufacturing
  • Test points for ICT
Other
  • CR2032 RTC Battery
  • Watchdog
Power Input
  • 12V, 800W
Operating Temperatures
  • Standard: 0°C – 40°C
  • Extended: -20°C – 55°C
Dimensions
  • Motherboard: ~372 x 430 mm (W x D)

Seville 1U Networking Appliance Series

Universal CPE supporting up to 22 core Intel® Xeon® D-2700/D-2800 processors

P/N

Description

Notes

90500-0171-G00 Seville, Intel® Xeon® D-2700, 20 Core CPU, 64GB RAM D-2798NT, Mid End SKU
90500-0171-G01 Seville, Intel® Xeon® D-2800, 22 Core CPU, 128GB RAM D-2899NT, High End SKU
90500-0171-G02 Seville, Intel® Xeon® D-2700, 16 Core CPU, 32GB RAM D-2776NT, Traditional End SKU
90500-0171-G03 Seville, Intel® Xeon® D-2700, 12C Core CPU, 64GB RAM D-2753NT, Low End SKU
90500-0171-G04 Seville, Intel® Xeon® D-2700, 20C Core CPU, 64GB RAM D-2798NT, OEM End SKU
