FPGA Tarjeta Inteligente N6010/6011 basada en Intel® AgileX

Flexible Multi-port Ethernet Intel® AgileX Basado SmartNIC

Silicom FPGA tarjeta inteligente N6010/N6011 es una plataforma de hardware OEM de alto desempeño diseñada para la aceleración de redes celulares 4G y 5G. El producto normalmente se coloca en las “Unidades de banda base” (BU) o las “Unidades distribuidas” (DU).

Dos módulos QSFP28 permiten la conexión de hasta 4 “unidades de radio” de RU portadoras de 100 MHz a través de enlaces 4x 25G eCPRI/CPRI.

Se admite la conexión IEEE-1588 Grandmaster para una sincronización horaria de alta precision.

La tarjeta se basa en un chip Intel® AgileX AGF014, que combina un sistema de procesador duro (HPS) que consta de cuatro procesadores ARM Cortex-A53 de 64 bits junto con una potente parte lógica programable (FPGA).

El producto está diseñado para funcionar en ORAN LLS-C1 y C2 en combinación con una pila IP 3GPP 4G/5G adecuada.

Se admite “xRAN Functional split” 6 con CPRI y 7.2x con eCPRI.

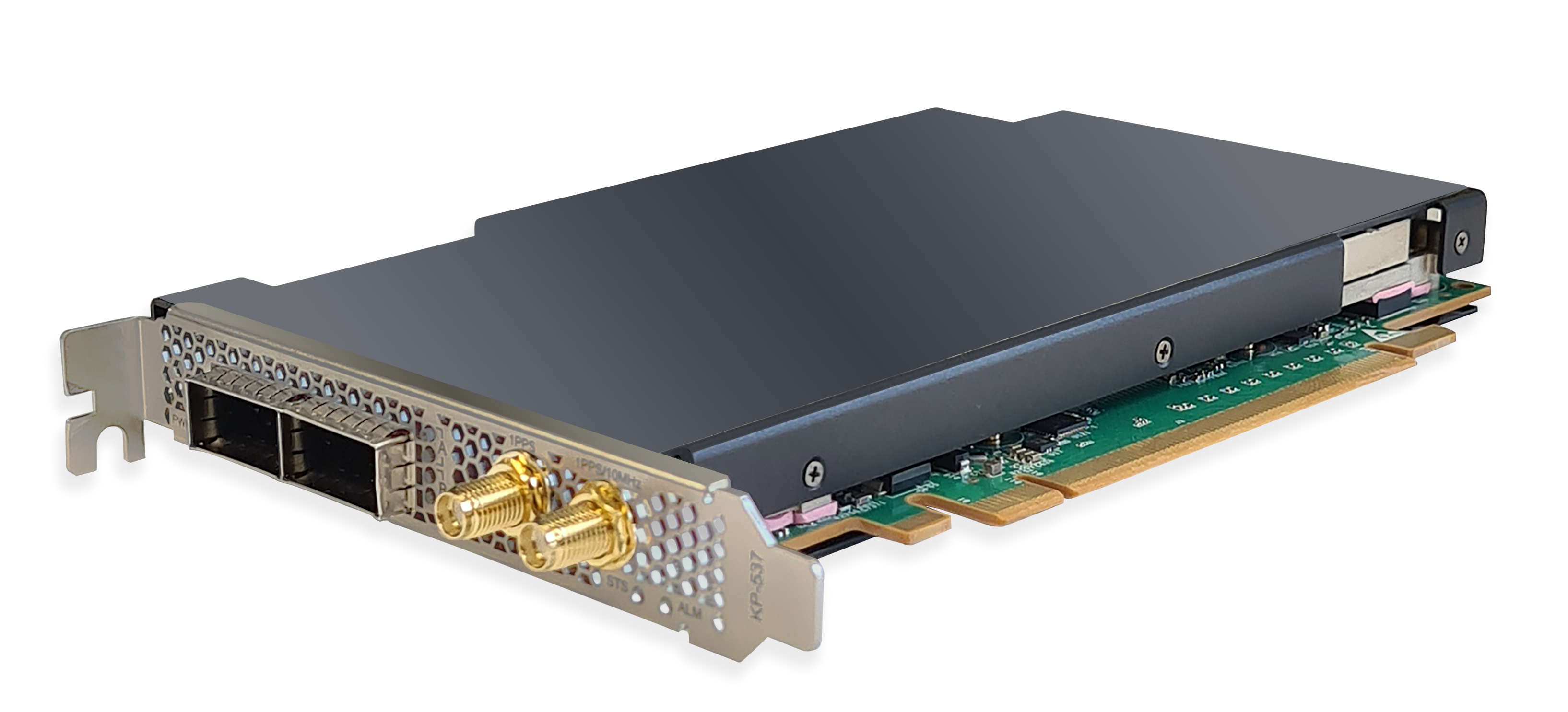

Tarjeta Inteligente N6010 Ethernet PCIe Intel AgileX Based SmartNIC FPGA

Silicom FPGA SmartNIC N6011 es compatible con Intel® Open FPGA Stack (OFS) e Intel OFS FPGA Interface Manager (FIM), que proporcionan una interfaz de desarrollador común para desarrolladores de aplicaciones y funciones de aceleración.

También incluye el software de controlador necesario.
La tarjeta inteligente FPGA de Silicom es compatible con la aceleración programable de hardware de la infraestructura de virtualización de funciones de redes (NFVi), y tambien la red de acceso por radio virtualizada (vRAN) para despliegues de 4G/5G.

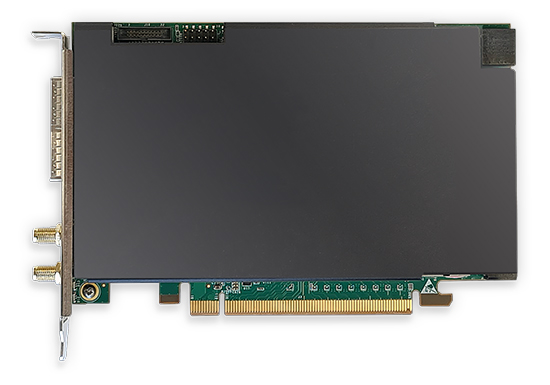

Tarjeta Inteligente Ethernet PCIe Intel AgileX SmartNIC FPGA N6010

FPGA Tarjeta Inteligente N6010/6011 basada en Intel® AgileX

Flexible Multi-port Ethernet Intel® AgileX Basado SmartNIC

Intel® Agilex® FPGA
Intel® e810-CAM2 NIC
2 x 100 GbE/4 x 25GbE/8 x 10GbE
PCIe v4 x 8 (x16 physical)

Key Use Cases

4G/5G vRAN Acceleration
Network Function Virtualization (NFV)
Multi-Access Edge Computing (MEC)
Video Transcoding
Cyber Security
High-Performance Computing
Finance

passphrase ssl LANDING PAGE

FPGA Tarjeta Inteligente N6010/6011 basada en Intel® AgileX

Flexible Multi-port Ethernet Intel® AgileX Basado SmartNIC

Network Interface:
IEEE standard	IEEE 802.3 10GE, 25GE, 100GE
Interfaces	Physical interface: 2 x QSFP28/56 slots Supports QSFP28/56 modules with Multimode SR (850nm), single mode LR (1310nm), multimode LRM (1310 nm) Data rate: Each module 100G, 4x25G, 4x10G Support for SyncE
Interfaces:
Network	2x100GbE, using QSFP28/56
Host	PCIe 4.0 x 16 (N6011 is bifurcated x8, x8) NCSI RBT Support for SMBUS
General Technical Specifications:
NIC details	Intel® E810-CAM2 Interfaces to PCIe 4.0 x8 Supports 2x100GE (active/protect), 4x25GE and 8x10GE
FPGA Details	Intel® Agilex™ AGF014 1.4M Logic Element Fabric Provides Ethernet or Ethernet and Common Public Radio Interface (CPRI) interface over QSFP28/56 ports P-Tile – Provides PCIe Gen4 x8 interface to the host Hard Processor System (HPS) DDR4 Memory controllers interfacing to the FPGA fabric Platform Management Communications Interface (PMCI) module
Configuration	Configuration flash can be made to support multiple boot images for automatic fallback to factory default image Upload of FPGA configuration to flash via PCIe Direct FPGA configuration via the onboard JTAG dongle
On-board Memory	8 GB DDR4 memory, with ECC (2 channels) 8 GB DDR4 memory, without ECC (2 channels) 1 GB DDR4 memory for HPS 280 MB Flash memory for non-volatile storage
On-board Clock	PCIe clock: 100 MHz 8 output reprogrammable clock generator Supports network synchronization
Additional Board Support	On-board power and temperature sensors (via SMBus/I2C) FPGA controlled Link and Activity LED for each port. 2 for each QSFP28 Board status LEDs FPGA Reset via host I2C
Environment	Full height, ½ length 111.28 x 167.65 mm with bracket Storage temperature: -40 – 65°C -40 – 149°F Operating temperature (card inlet): -5 – 50°C, 23 – 122°F Operating humidity: 5 – 85% Hardware compliance: RoHS, FCC, CE
Power	Max 125W, above 75W PCIe AUX power must be used Passive cooling Power and temperature monitoring via SMBus/I2C PCIe AUX power connector available
Manageability Features	Full card BMC solution host communication via SMBus (PLDM & NC-SI) FPGA image remote update capability Full security implementation using MAX10 FPGA as RoT
Networking	A configurable packet processor IP core Extensive configuration API Packet forwarding and bridging across network, main host and SoC Parsing, match and action operations Bandwidth rate limit
Hardware Acceleration	SR-IOV, 256 virtual functions 32 physical functions
Software Support	Open FPGA Stack (IOFS) Contrail OVS SRv6 vFW acceleration 4G and 5G vRAN enablement package DPDK BBDev FlexRAN
