Programmable FPGA Server Adapter
fb4XG@V7 FPGA Card
Quad Port SFP+ 1/10 Gigabit Ethernet PCI Express FPGA Card

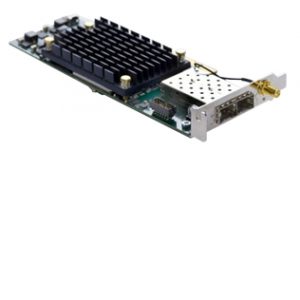

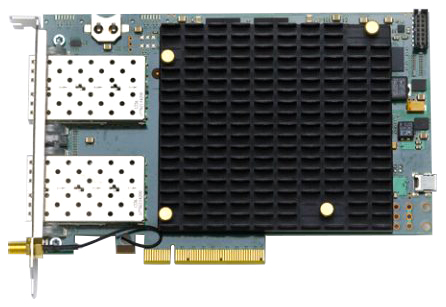

The fb4XG@7 series is a high performance OEM hardware platform for 10 Gigabit Ethernet with quad port SFP+ network interface. The standard configuration is based on Xilinx Virtex7 VX690T FPGA.
The card is also offered with a variety of different FPGAs to provide flexibility for the intended application.
As an optional feature, the card can be fitted with two SATA connectors which can provide connectivity to a wide range of standard storage devices directly to the FPGA NIC.
fb4XG@V7 FPGA Card
Quad Port SFP+ 1/10 Gigabit Ethernet PCI Express FPGA Card
Host Interface:
- Physical bus connector: 8-lane PCIe
- PCIe bus type: 1-8 lane PCIe Gen1/Gen2/Gen3
Network Interface:
- IEEE standard: IEEE 802.3 10 Gbit/s Ethernet
- Physical interface: 4 x SFP+ ports
- Supported SFP+ modules: Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), singlemode ER (1550 nm) or Direct Attached Copper (Twinax)
- Data rate: 4 x 10 Gbit/s
- Ethernet PHY directly embedded in FPGA for full packet control
Configuration:
- 16 bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Support for encrypted FPGA bit file (optional)
- Upload of FPGA configuration to flash via PCIe
fb4XG@V7 FPGA Card
Quad Port SFP+ 1/10 Gigabit Ethernet PCI Express FPGA Card
General Technical Specifications |
|
| On Board Clock: | PCIe clock: 100MHz 125 MHz oscillator 156.25 MHz oscillator 150 MHz oscillator for SATA (optional) |
| On Board Memory: | 2 x 64 bit DDR3@1600MT/s 4GB (total 8GB memory) 1 MB user configurable space in flash for permanent storage 1 x 36 bit QDRII+@2200MT/s 144 Mb / 288 Mb / 576 Mb (optional) |
| FPGA: | fB4XG@V7690: Xilinx Virtex7 XC7VX690T-2 fB4XG@V7693: Xilinx Virtex7 XC7VX690T-3 fB4XG@V7330: Xilinx Virtex7 XC7VX330T-2 Xilinx Virtex7 XC7VX415T (optional) |
Environment: |
|
| Physical dimensions: | half length, standard height PCIe |
| Power consumption: | less than 6W with uninitialized FPGA |
| Operating temperature: | 0 – 55°C, 30 – 130°F |
| Operating humidity: | 20 – 80% |
| Hardware compliance: | RoHS, CE |
| Passive cooling: | no on-board fan required |
| Active cooling: | optional |
| Additional Board Support: | On board temperature sensor Board status LED 2 user configurable dual color LED FPGA controlled Link and Activity LED for each port PPS clock synchronization connector 2 x SATA connector (optional) |
| Optional Intellectual Property Support: | Flash configuration I/F 8 lane PCIe DDR3 Memory controller QDRII+ Memory controller Fast Ethernet MAC (optional) MDIO controller (optional) I2C controller (optional) SPI master I/F (optional) TCP-offload engine (optional) |
fb4XG@V7 FPGA Card
Quad Port SFP+ 1/10 Gigabit Ethernet PCI Express FPGA Card
P/N |
Description |
Notes |
| fb4XG@V7 | Quad port SFP+ card supporting 4x1GE/10GE, PCIe Gen3 x8 lanes, optional SATA connectors | RoHS Compliant |
1V0
