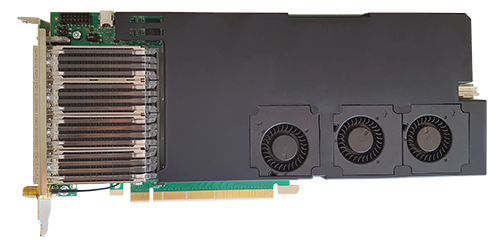

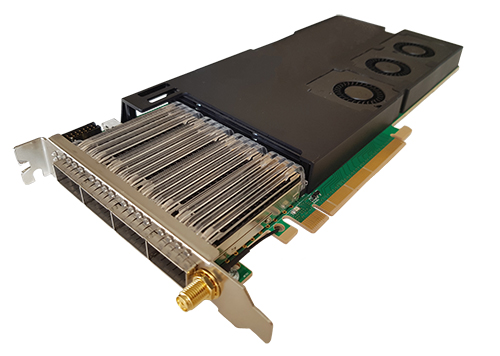

FB4CGG5@VU09P TimeSync

Quad QSFP28 port card supporting 4x100GE, 16xPCIe Gen3, AMD® Virtex Ultrascale+ V09P

The FB4CGG5@VU09P TimeSync is a high-performance OEM hardware platform intended for 10/40/25/100 Gigabit Ethernet via its quad QSFP28 slots.

The card supports various FPGA models, and in its standard version it is fitted with an AMD® Virtex UltraScale+ VU9P FPGA SG3, to provide ample capacity for the quad QSFP28 interface.

The card is mounted with 2 x 64-bit DDR4 2400MT/s 4GB for a total of 8 GB. In addition to this it features 2 SODIMM sockets for use with DDR4 or QDRII+ modules for low latency applications.

The card features the ZL30793 DPLL for optimal clock control, allowing compliance with IEEE-1588-2019 SyncE and PTP.

FB4CGG5@VU09P TimeSync

Quad QSFP28 port card supporting 4x100GE, 16xPCIe Gen3, AMD® Virtex Ultrascale+ V09P

AMD® Virtex UltraScale+ VU9P FPGA
4 x QSFP28 ports
DPLL ZL30793
2 x 64-bit DDR4@2400MT/s
2 x SODIMM for optional QDRII+ or extra DDR4
Configuration flash RAM for boot images
PCIe form-factor: 3/4 length, standard height PCIe
On-board power and temperature sensors
FPGA controlled link and status LEDs
Passive cooling (optional)

FB4CGG5@VU09P TimeSync

Quad QSFP28 port card supporting 4x100GE, 16xPCIe Gen3, AMD® Virtex Ultrascale+ V09P

Network Interface
IEEE standard:	IEEE 802.3 10/40/25/100 GE
Interfaces:	Physical interface: 4 x QSFP28 ports (2 port variant available) Supported QSFP+/QSFP28 modules: including fan-out modules for 4x10G/4x25GE, Multimode SR4 (850nm), singlemode LR4 (1310nm), multimode LRM4 (1310nm), or Direct Attached Copper (Twinax) and others. Data rate: 16×10, 4×40, 16×25, 4×100 Gbps
Host Interface
PCI bus:	Physical bus connector: 16-lane PCIe PCIe bus type: 1-16 lane PCIe Gen1/Gen2/Gen3 via on-board PLX PCIe switch. Optional 2×8 PCIe lanes via secondary High speed serial connector
General Technical Specifications
Configuration:	16-bit fast parallel programming interface from supporting preprogrammed controller Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails Upload of FPGA configuration to flash via PCIe Support for encrypted FPGA bit file (optional)
On-board Memory:	2 x 64-bit DDR4@2400MT/s 4 GB 2 x Optional SODIMM – 64-bit DDR4@2400MT/s 4 GB 8 MB user configurable space in flash for permanent storage
On-board Clock:	PCIe clock: 100 MHz 200 MHz clock 50 MHz clock 161.13 MHz clock DPLL ZL30793
FPGA Details:	AMD® Virtex Ultrascale+ XCVU9P
Environment:	Physical dimensions: 3/4 length, standard height PCIe Power consumption: Operating temperature: 0 – 55°C, 30 – 130°F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Active cooling (heat sink with fan) Passive cooling (optional)
Time Synchronization:	PTP: Yes, with PTP4L or zlsptp on x86 Support Sync-E/ 1588 standard DPLL: ZL30793
Additional Intellectual Property Modules:	PacketMover framework (optional) SmartNIC framework (optional) Ultra low latency 10GE MAC (optional) TCP-offload engine (optional)
