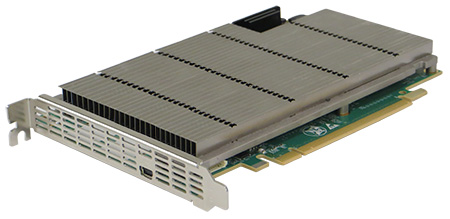

FB1C1XLG@A10X0900 FPGA Server Adapter
Programmable PCI Express Server Adapter Based on Intel® Arria 10 GX/GT FPGA
Silicom’s Cardiff/8 Intel/PSG FPGA Accelerator server adapter is based on a high performance Arria10 GT/GX, FPGAs.
FB1C1XLG@A10X0900 FPGA Server Adapter
Programmable PCI Express Server Adapter Based on Intel® Arria 10 GX/GT FPGA
Host Interface:
• Physical bus connector: x16 mechianincal, x8 lane PCIe
Configuration:
• Upload of FPGA configuration to flash via PCIe
• USB Blaster II on Board
• Serial Configuration EPCQ-L device memory size of 1Gb , using Active
Serial x4 configuration mode
On Board Memory: ( optional)
• DDR4 – 9 x devices on board of 8Gbx16 each DDR4 device, running up to 2400MT/s
• QDRIV- 1x device 144Mb density 18 bit data channels, running up to 1066 MHz
Board Management:
• Voltage level monitoring
• Thermal shut-down protection
• Over current protection on 12V input
FB1C1XLG@A10X0900 FPGA Server Adapter
Programmable PCI Express Server Adapter Based on Intel® Arria 10 GX/GT FPGA
General Technical Specifications: |
|
| Interface Standard: | PCI-Express Base Specification Revision 3.0 (8 GTs) |
| Board Size: | Standard height short add-in card 167.65mm X 111.15mm (6.6”X 4.376”) |
| PCI Express Card Type: |
8-Lanes to Arria 10 GT/GX Note: Can be plug only in 16xPCIe slot, future re-spin will change to x8 |
| PCI Express Voltage: | +12V ± 8% |
| On Board Connector Voltage | +12V ± 8% On board auxiliary power connector to support power over 75W |
| PCIe Connector: | x16 Lanes |
| FPGA: | Intel® FPGA Arria 10 900/1150 GT or GX • See ordering information about types Arria 10 GX/GT |
| Memory: Optional | Onboard DDR4, 2400MT, total memory 8GB Onboard QDR-IV, 2132MT, 144Mb (4Mx36) |
| Holder: | Metal Bracket |
| Weight: | 350g (12.34oz) With Passive Heat-Sink and without optical modules |
| Cooling: | - Passive heat sink or active heat sink solution - Built-in thermal protection |
| Sensors/Monitors: | - Thermal protection - Voltage monitors - Current protection |
| Operating Temperature: | 0°C – 45°C (32°F - 113°F) |
| Storage: | -40°C–65°C (-40°F–149°F) |
| Regulation: | CE, FCC Class B, ROHS requirements. |
Leds: |
|
| Connectors: | (1) Auxiliary 12V power supply connector on board (1) Mini-USB Type B connector, located on front of panel for on board USB Blaster II interface (1) On board right angle JTAG connector 8 pins (custom) for FPGA |
FB1C1XLG@A10X0900 FPGA Server Adapter
Programmable PCI Express Server Adapter Based on Intel® Arria 10 GX/GT FPGA
P/N |
Description |
Notes |
| FB1C1XLG@A10T1150-1PU | Programmable PCI Express Server Adapter Based on Intel® FPGA Arria 10 1150GT |
x8 Gen 3, mechanincal x8, Arria 10 GT 1150, QSFP28 FPGA PN: |
| FB1C1XLG@A10X0900-1PL | Programmable PCI Express Server Adapter Based on Intel® FPGA Arria 10 900GX, |
x8 Gen 3, mechanincal x16, Arria10 GX900, FPGA: PN 10AX090S1F45E1SG -1AL, with Active heat sink |
| FB1C1XLG@A10T1150-1AU | Programmable PCI Express Server Adapter Based on Intel® FPGA Arria 10 1150GT |
x8 Gen 3, mechanincal x8, Arria 10 GT 1150, QSFP28 FPGA PN: |
