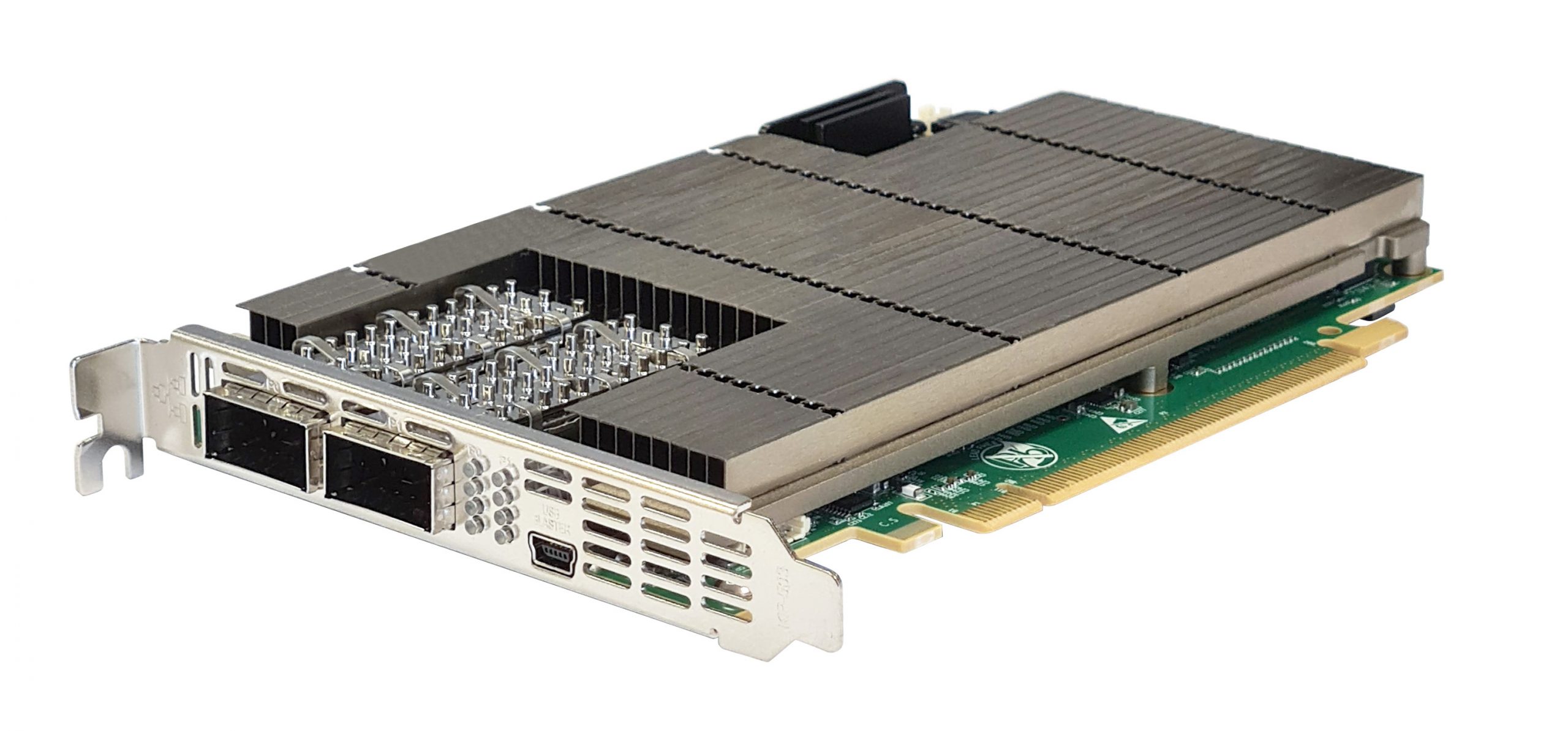

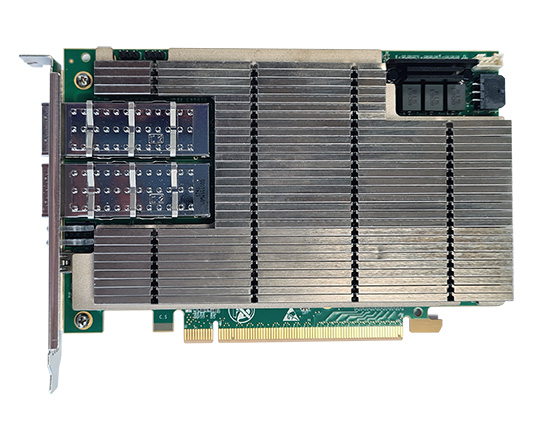

FB1C1XLG@A10T1150E Programmable PCIe NIC
Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based
The card offered with a variety of different FPGAs to provide flexibility for the intended application. The card is mounted with DDR4 devices running up to 2400MT/s*, total memory 8GB, one device DDR4 1Gbx8 running up to 2400MT/s.
For options on alternate hardware configuration see ordering information.
Cardiff2/E-SKU*
– Does not support QDR-IV
– Supports DDR4 with ECC.
– Support 10G SERDES based only on the QSFP interfaces
FB1C1XLG@A10T1150E Programmable PCIe NIC
Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based
Host Interface:
- Physical bus connector: 16-lane PCIe
- PCIe bus type: 2 x 1-8 lane PCIe Gen1/Gen2/Gen3 with bifurcation
Fortville Ethernet Network Controller XL710BM2:
- Network Virtualization offloads for VXLAN and NVGRE
- Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
- Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
- Physical Functions – Up to 8 per port, up to 16 per device
- Support for 128 Virtual Device Queues (VMDq) per port
- Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
- Virtualization – Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
- Receive Side Scaling (RSS)
- Large Send Offload (LSO)
- TCP/UDP/IP/SCTP Checksum Offload
- IPV4, IPV6
Network Interface:
- IEEE standard: IEEE 802.3 10/40 GE
- Physical interface: QSFP+
- Supported QSFP+ modules: including fan-out modules for 4x10G , Multimode SR4 (850nm), Single Mode LR4 (1310nm), Multimode LRM4 (1310nm), or Direct Attached Copper (Twinax)
- Data rate: 8x10 Gbps or 2x40 Gbps
- Support Sync-E standard (optional feature depending on FPGA image)
Configuration:
- Upload of FPGA configuration to flash via PCIe – with supported image and tool.
- USB Blaster II on Board
- Serial Configuration EPCQ-L device memory size of 1Gb , using Active Serial x4 configuration mode
On Board Memory:
- DDR4
- 8GByte+ECC on ping pong interface ( x12 devices )
- 1GByte ,(x1 device)
Board Management:
- Voltage level monitoring
- Thermal shut-down protection
- Over current protection on 12V input
FB1C1XLG@A10T1150E Programmable PCIe NIC
Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based
|
General Technical Specifications Adapters: |
|
| Interface Standard: | PCI-Express Base Specification Revision 3.0 (8 GTs) |
| Board Size: | Standard height short add-in card 167.65mm X 111.15mm (6.6”X 4.376”) |
| PCI Express Card Type: |
x8x8 Lanes Bifurcation 8-Lanes to Arria 10 GT/GX 8-Lanes to XL710 Note: Can be plug only in 16xPCIe slot |
| PCI Express Voltage: | +12V ± 8% - Limited to 6A |
| On Board Connector Voltage |
+12V ± 8% On board auxiliary power connector to support power over 75W – *The +12V must be installed when power is over 75W |
| PCIe Connector: | x16 Lanes |
| FPGA: | Intel FPGA Arria 10 900/1150 GT or GX · See ordering information about types Arria 10 GX/GT |
| Ethernet Controller: | Intel Fortville Ethernet Controller XL710-BM2 |
| Memory: | Onboard DDR4*, 2400MT, total memory 9GB + 2GB ECC |
| Holder: | Metal Bracket |
| Weight: | 350g (12.34oz) With Passive Heat-Sink and without optical modules |
| Power Consumption: | Maximum 130W Maximum 124W (Without XL710 Fortville device) · The total power consumption of the card is depending on user application |
| Cooling: |
- Passive heat sink, or active heat sink solution - Built-in thermal protection |
| Sensors/Monitors: |
- Thermal protection - Voltage monitors - Current protectio |
| Operating Temperature: | 0°C – 45°C (32°F - 113°F) |
| Air Flow Requirements: | Passive heat sink, short PCIe, single slot: 600 LFM. @ 40C, Max PCIe card power 100W, Max FPGA Core Current 60A, FPGA Core Temp 90C |
| Storage: | -40°C–65°C (-40°F–149°F) |
| Regulation: | CE, FCC Class B, ROHS requirements. |
| MTBF*: |
157 years, passive heat sink, * According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 50°C |
|
LEDs/ Connectors Specifications: |
|
| LEDs: | Each QSFP Ports has 4 LEDs |
| LEDs location: | LEDs are located on the PCB, indication visible through light pipe. |
| Connector: |
(2) QSFP+ Cages (1) Auxiliary 12V power supply connector on board (1) Mini-USB Type B connector located on front of panel for on board USB Blaster II interface (1) On board right angle JTAG connector 8 pins (custom) for FPGA |
FB1C1XLG@A10T1150E Programmable PCIe NIC
Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based
P/N |
Description |
Notes: |
| FB1C1XLG@A10T1150E | Programmable PCI Express Server Adapter Based on Intel FPGA Arria 10 1150GT, forum factor short size, full height with passive heat sink |
PCIe 2x8 Gen 3, mechanical x16 Based on Intel FPGA Arria10 GT1150/ 10AT115S1F45E1SG Passive Heat-Sink. Consists on board: XL710, 13xDDR4, 2xQSFP cages Generic |
2V2
