fbC4G Capture Card
Quad Port SFP+ Gigabit Ethernet PCI Express Capture Card
The Silicom fbC4G Card performs at line rate with zero packet loss. It allows for pure data capture as well as inline applications. It is a high performance OEM hardware platform intended for 4 x 1Gbit network connectivity with quad port SFP interfaces.
The 1 GE is still the most widespread interface in networks today, and the fbC4G offers direct and unhindered visibility interface into the traffic carried in these networks.

Utilizing the power of FPGAs, the traffic can easily be controlled and processed to provide the insight required of a wide range of applications.
All Capture Cards from Silicom FPGA Solutions are part of the fbCAPTURE family that is provided with a powerful Software API.

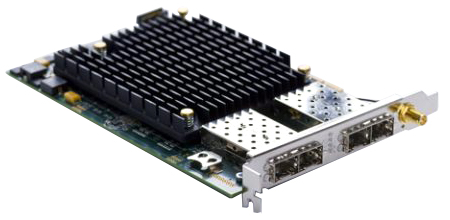

fbC4G Capture Card
Quad Port SFP+ Gigabit Ethernet PCI Express Capture Card
- 1 Gbit/s Ethernet, IEEE 802.3
- 4 x 1GE ports via 4 x SFP ports
- Full line rate, all interfaces
- Precision timestamping
- 3.2 nano second resolution
- Micro second latency
- fbCAPTURE API
- Inline operation for traffic modification
- Hardware filtering and distribution
- Application acceleration and scalability
- 64 logical channels to DMA or egress via Tx

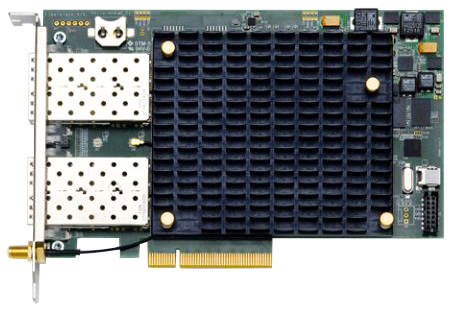

fbC4G Capture Card
Quad Port SFP+ Gigabit Ethernet PCI Express Capture Card
Network Interface: |
|
IEEE standard: | IEEE 802.3 1 Gbit/s Ethernet |
Physical interface: | 4 x SFP ports |
Supported SFP modules: | Multimode SX (850 nm) Singlemode LX (1310 nm) Multimode ZX (1310 nm) Gigabit RJ45 Copper transceiver |
Data rate: | 4 x 1 Gbit/s |
Host Interface: |
|
Physical bus connector: | 8-lane PCIe |
PCIe bus type: | 1-8 lane PCIe Gen1/Gen2 |
On Board Memory: | 4GB (1x4GB 64 bit DDR3) |
Performance: |
|
Capture rate (card internal): | Full line rate |
Capture rate (bursts): | Full line rate |
Capture rate (sustained): | Full line rate |
Transmission rate (inline host DMA): | Full line rate |
Transmission rate (inline bypass): | Full line rate |
Transmission rate (daisy chain): | Full line rate |
General Technical Specifications |
|
Latency: | Less than 4 μs to host memory Less than 4 μs from host memory to Tx Non-blocking sending, allowing user applications to operate independently |
Time Stamping & Sync: | Resolution = 3.2 ns Accuracy down to 20 ns Optional external synchronization via PPS Customization for PTP IEEE 1588-2008 RJ45 Master/slave time sync between multiple cards |
Environment: |
|
Physical dimensions: | Half length, standard height |
PCIe: | 111 x 169 mm |
Weight: | 261g |
Operational power consumption: | Less than 39W |
Operating temperature: | 0 – 55°C, 30 – 130°F |
Operating humidity: | 20 – 80% |
Hardware compliance: | RoHS, CE |
Additional Board Support: | fbCAPTURE API On-board temperature sensor 4 Multi-color status LEDs Link and Activity LEDs for each port SMA connector for external PPS time synchronization pulse |
fbC4G Capture Card
Quad Port SFP+ Gigabit Ethernet PCI Express Capture Card
P/N |
Description |
Notes |
fbC4G | Quad port SFP+ capture card supporting 4x1G Ethernet, PCIe Gen2 x8 lanes | RoHS Compliant |
fbC4G-SX | Quad port (SX) capture card supporting 4x1G Ethernet, PCIe Gen2 x8 lanes | RoHS Compliant |
fbC4G-LX | Quad port (LX) capture card supporting 4x1G Ethernet, PCIe Gen2 x8 lanes | RoHS Compliant |
fbC4G-ZX | Quad port (ZX) capture card supporting 4x1G Ethernet, PCIe Gen2 x8 lanes | RoHS Compliant |
1V0
