OE325G2I71 OCP Mezzanine Card Intel® XL710 Based

Dual Port 25 Gigabit Ethernet OCP Mezzanine Card

Silicom’s 25 Gigabit Ethernet Open Compute Project (OCP) mezzanine card is designed for use in any mother board that can utilize “OCP_Mezz 2.0_rev1.00” MEZZ cards.
The Silicom’s 25 Gigabit Ethernet OCP mezzanine dual 25 Gigabit Ethenet connectivity to the OCP Server node.

The Silicom 25 Gigabit Ethernet OCP mezzanine card is based on Intel XXV710 Ethernet controller with fully integrated Gigabit Ethernet Media Access Control (MAC) and SFI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

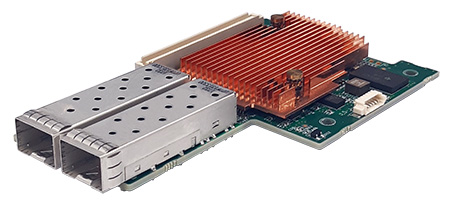

OE325G2I71 OCP Card

The Silicom 25 Gigabit Ethernet OCP mezzanine card implement a type C NC-SI interface (single package, common bus buffers and shared RX queue).

Silicom’s 25 Gigabit Ethernet OCP Mezzanine cards is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance OCP servers.

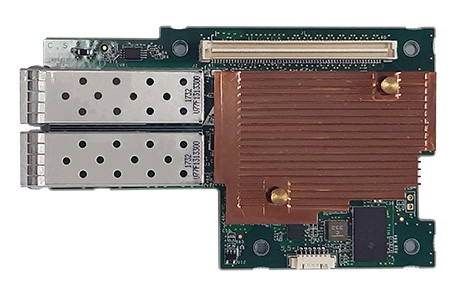

OE325G2I71 OCP server adapter

OE325G2I71 OCP Mezzanine Card Intel® XL710 Based

Dual Port 25 Gigabit Ethernet OCP Mezzanine Card

Host Interface:

  • Supports OCP Mezzanine card 2.0 Design Specification
  • Supports FCI 61083-124402LT or equivalent mounted on the mezzanine card
  • PCI Express Gen 3.0 X8 lanes in Connector A
  • NC-SI for Manageability connection to BMC

SFP28 25Gigabit Ethernet:

25Gigabit Ethernet Adapter with SFP cage support:.

  • -ZS: Fiber 25 Gigabit Ethernet 25GBASE-SR:
    • 25GBase-SR with 25G 850nM Small Form Factor Pluggable (SFP28)
  • -ZL: Fiber 25 Gigabit Ethernet 25GBASE-LR:
    • 25GBase-LR with 25G 1310nM Small Form Factor Pluggable (SFP28)
  • -SR: Fiber 10 Gigabit Ethernet 10GBASE-SR:
    • 10GBASE-SR with 10Gigabit 850nM Small form Factor Pluggable (SFP+)
  • -LR: Fiber 10 Gigabit Ethernet 10GBASE-LR:
    • 10GBASE-LR with 10Gigabit 1310nM Small form Factor Pluggable (SFP+)

-ZS: Fiber 25 Gigabit Ethernet 25GBASE-SR:

  • 25 Gigabit Fiber Ethernet port supports 25GBASE-SR (850nM LAN PHY)
  • 25Gigabit 850nM Small form Factor Pluggable (SFP28)

-ZL: Fiber 25 Gigabit Ethernet 25GBASE-LR:

  • 25 Gigabit Fiber Ethernet port supports 25GBASE-LR (1310nM LAN PHY)
  • 25Gigabit 1310nM Small form Factor Pluggable (SFP28)

-SR: Fiber 10 Gigabit Ethernet 10GBASE-SR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-SR (850nM LAN PHY)
  • 10Gigabit 850nM Small form Factor Pluggable (SFP+)

-LR: Fiber 10 Gigabit Ethernet 10GBASE-LR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-LR (1310nM LAN PHY)
  • 10Gigabit 1310nM Small form Factor Pluggable (SFP+)

Performance Features:

  • Support for jumbo frame up to 9.5KB
  • Flow control support
  • Priority Flow Control (draft IEEE 802.1Qbb)
  • Enhanced Transmission Selection (draft IEEE802.1az)
  • Statistics management and RMON
  • 802.1q VLAN support
  • DCB/DCB-X support
  • Message Signal interrupts (MSI-X)
  • Storage – Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE

LAN and Virtualization Features:

  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
  • Remote SAN boot with data path intelligent offload
  • VEB (Virtual Ethernet Bridge) & Edge Virtual Bridging / 802.1Qbg
  • VMDq for VMware Netqueue* and Microsoft DVMQ*
  • SR-IOV (Single Root I/O Virtualization): up to 128 Virtual Functions
  • iSCSI and PXE boot (legacy and UEFI)
  • Support for standard and custom network headers
  • Partially Programmable Pipeline and Advanced Traffic Steering
  • Intel® Ethernet Flow Director – 8000 On-Die perfect match filters
  • 1536 queues/Physical Function (PF), >64 RSS/PF and 256 VMDq/PF
  • Data Center Bridging (DCB) up to 8 traffic classes

OE325G2I71 OCP Mezzanine Card Intel® XL710 Based

Dual Port 25 Gigabit Ethernet OCP Mezzanine Card

General Technical Specifications

Interface Standard: OCP Mezzanine card 2.0 Design Specification 1.00
PCI-Express Base Specification Revision 3.0 (8GT/s)
Mezzanine Form Factor Vertical Stack Open Compute Project Mezzanine Card
Type 1
PCI Express Card Type: PCI Express Gen 3.0 X8 lanes in Connector A
PCI Express Voltage +12V +- 8%
PCI Connector: FCI 61083-124402LF or equivalent mounted on the mezzanine card
Controller: Intel XXV710-AM2
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Storage: -40°C–65°C (-40°F–149°F)
Regulation: Card shall meet CE, FCC Class B, ROHS requirements.

SFP28 25Gigabit Ethernet Technical Specifications Adapters:

SFP28 (Small Form Factor Pluggable) supports: SFI interfaces supports 25GBase-R PCS and 25 Gigabit PMA in order to connect with SFP28 to 25GBase-SR
25GBase-SR SFP28:
IEEE Standard / Network topology:
Fiber 25Gigabit Ethernet, 25GBASE-SR (850nM LAN PHY).
25GBase-SR SFP28:
Data Transfer Rate :
25.78125Gbps
25GBase-LR SFP28:
IEEE Standard / Network topology:
Fiber 25Gigabit Ethernet, 25GBASE-LR (1310nM LAN PHY)
25GBase-LR SFP28:
Data Transfer Rate:
25.78125Gbps
25GBase-LR SFP28:
Cables and Operating distance Up to:
Single-Mode: 10000m at 9um

-ZS: Fiber 25GBASE-SR Technical Specifications:

Output Transmit Power (25G): Minimum: -1.42 dBm
Optical Receive Sensitivity (25G): Maximum: -5.98 dBm

Operating Systems:

Operating system support: Windows
Linux
FreeBSD
VMware

LEDs/ Connectors Specifications:

LEDs:

Each Port has 2 LEDs to indicate link status and speed.

Link: Physical link Speed:
Green stay on – physical link on with 25G Speed
Yellow stay on – physical link on with 10G Speed
Off – physical link off.

Link /ACT: Logic Link/Activity, Green
Green stay on – logic link up, no activity
Green blinking – logic link up, activity
Off – logic link off

LEDs location: LEDs are located on the PCB
Link/Act and Speed LED located below its own SFP connector port.
Connector: (2) SFP28 cage



OE325G2I71 OCP Mezzanine Card Intel® XL710 Based

Dual Port 25 Gigabit Ethernet OCP Mezzanine Card

P/N

Description

Notes:

OE325G2i71-XR Dual Port SFP28 25 Gigabit Ethernet OCP Mezzanine Card X8 Gen3 , Based on Intel XXV710-AM2, Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver. RoHS compliant,
OE325G2i71-ZS Dual Port Fiber (SR) 25 Gigabit Ethernet OCP Mezzanine Card X8 Gen3 , Based on Intel XXV710-AM2, Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver. RoHS compliant,
OE325G2i71-ZL Dual Port Fiber (LR) 25 Gigabit Ethernet OCP Mezzanine Card X8 Gen3 , Based on Intel XXV710-AM2, Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver. RoHS compliant,
OE325G2i71-SR Dual Port Fiber (SR) 10 Gigabit Ethernet OCP Mezzanine Card X8 Gen3 , Based on Intel XXV710-AM2, Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver. RoHS compliant,
OE325G2i71-LR Dual Port Fiber (LR) 10 Gigabit Ethernet OCP Mezzanine Card X8 Gen3 , Based on Intel XXV710-AM2, Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver. RoHS compliant,



1V1
