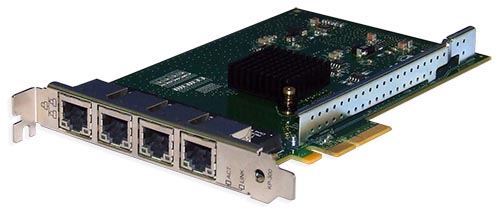

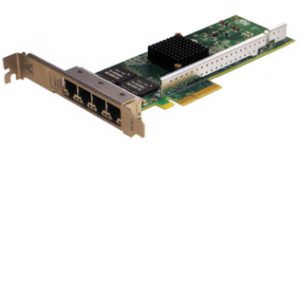

PE2G4I35 Server Adapter

Quad Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

Silicom’s Quad Port Copper Gigabit Ethernet Cloud Computing PCI Express Server adapter is PCI-Express X4 Copper Gigabit Ethernet network interface card that is based on a single chip, non-Bridged quad port GBE controller.

Silicom’s Quad Port Copper Gigabit Ethernet Cloud Computing PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.



Silicom’s Quad Port Copper Gigabit Ethernet server adapter is based on Intel i350 Quad port Gigabit Ethernet MAC+PHY of Intel Controller.

The Silicom i350 support PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV).

PE2G4I35 Server Adapter

Quad Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

Performance Features:

  • 8 Transmit and 8 Receive queues per port.
  • Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
  • Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
    • Support for up to 8 virtual function ( VFs)
  • Partial replication of PCI Configuration space
  • Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
  • Support Direct Cache Access (DCA).
  • Support Intel I/O Acceleration Technology v3.0.
  • TSO interleaving for reduced latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • UDP, TCP and IP checksum offload
  • UDP and TCP transmit segmentation offload (TSO). machine
  • SCTP receive and transmit checksum offload.
  • Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation.
  • EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods.

Copper Gigabit Ethernet 1000Base-T :

  • Independently copper Gigabit Ethernet channels support four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).
  • Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation.
  • Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
  • RJ-45 female connectors

Common Key features:

  • Support PCI Express Base Specification 2.1 (5 GTs)
  • High performance, reliability, and low power use in Intel i350 Quad integrated MAC + PHY and SERDES chip Controllers.
  • Ultra deep, packet buffer per channel lowers CPU utilization.
  • Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
  • Server class reliability, availability and performance features:
    • Link Aggregation and Load Balancing
  • Priority queuing – 802.1p layer 2 priority encoding
  • Virtual LANs –802.1q VLAN tagging.
  • Jumbo Frame (9.5KB)
  • 802.x flow control.
  • Multicast/ broadcast Packet replication
  • Supports Vital Product Data (VPD)
  • LEDs indicators for link/Activity/Speed status

PE2G4I35 Server Adapter

Quad Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

Copper Gigabit Ethernet Technical Specifications - (1000Base-T) Adapters:

IEEE Standard / Network topology: Gigabit Ethernet, 1000Base-T
Fast Ethernet, 100Base-TX
Ethernet, 10Base-T
Full duplex / Simplex:Support both Simplex & Full duplex operation in all operating speeds
Auto negotiation:Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s
Data Transfer Rate:1000 Mb/s, 100 Mb/s and 10 Mb/sec in simplex mode per port.
2000Mb/s 200 and 20 Mb/s in full duplex mode per port
Cables and Operating distance: 10Base-T Category 3, 4, or 5 maximum 100m
100Base-Tx Category 5 maximum 100m
1000Base-T Category 5E maximum 100m

Operating Systems Support

Operating system support: Linux
Windows
FreeBSD
VMware

General Technical Specifications

Interface Standard:PCI-Express Base Specification Revision 2.1 ( 5 GTs)
Board Size: Standard height short add-in card 167.64mm X 111.18mm (6.60”X 4.377”)
PCI Express Card Type:X4 Lane
PCI Express Voltage:+3.3V +-9%,
+12V +- 8%
PCI Connector: Gold Finger: X4
Controller: Intel i350AM4
I/O:Quad RJ45 located on edge of the board
Power Consumption: 5.04 W, 0.42A at 12V:
Typical all ports operate at 1000Mb/s.
3.6 W, 0.3 at 12V:
Typical all ports operate at 100Mb/s.
3.36 W. 0.28 at 12V:
Typical all ports operate at 10Mb/s.
2.88 W, 0.24 A at 12V:
Typical No link at all ports
Holder:Metal Bracket: Full Height
Operating Humidity:0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F - 113°F)
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC Part 15, Subpart B Class A
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Clas Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
MTBF:286
*According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 40°C

LEDs

LEDs:(2) LEDs per port
Link / Act Led:
Turn on any Link speed , Blinks on Activity (green)
Speed (Bi-color) Led:
1000Mb/s: Turns on Orange.
100Mb/s: Turns on Green.
10Mb/s: Turns off
LEDs location:LEDs are integrated on RJ-45 connector
Connectors:(4) Shielded RJ-45

PE2G4I35 Server Adapter

Quad Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based

P/N

Description

Notes

PE2G4i35Quad Port Copper Gigabit Ethernet PCI Express Server AdapterX4, Based on Intel i350AM4, Standard Height, RoHS compliant
