PE2G2SFPI35 Server Adapter

Dual Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM2 Based

Silicom’s Dual Port SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 SFP Gigabit Ethernet network interface card that is based on a single chip, non-Bridged Dual port GBE controller.

Silicom’s Dual Port SFP Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

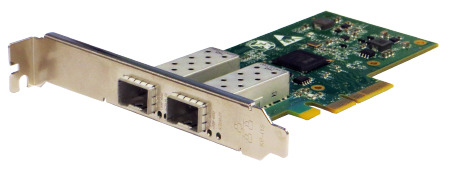

PE2G2SFPI35 1G NIC

Silicom’s Dual Port SFP Gigabit Ethernet Server adapter is based on Intel i350 Dual port Gigabit Ethernet MAC+PHY of Intel Controller. The Silicom i350 support PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV).

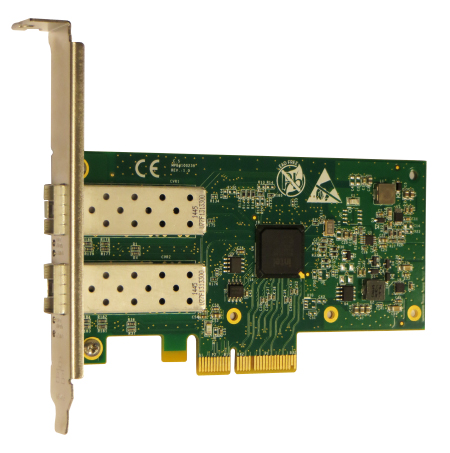

PE2G2SFPI35 1G Server Adapter

PE2G2SFPI35 Server Adapter

Dual Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM2 Based

Performance Features:

  • 8 Transmit and 8 Receive queues per port
  • Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
  • Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
    • Support for up to 8 virtual function ( VFs)
    • Partial replication of PCI Configuration space
  • Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
  • Support Direct Cache Access (DCA)
  • Support Intel I/O Acceleration Technology v3.0.
  • TSO interleaving for reduced latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • UDP, TCP and IP checksum offload
  • UDP and TCP transmit segmentation offload (TSO). machine
  • SCTP receive and transmit checksum offload
  • Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
  • EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods

SFP Gigabit Ethernet:

  • Gigabit Ethernet Adapters with SFP cage support:
    • 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
    • 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
    • Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
  • 2PortLink synchronization
  • Optional SGMII mode (future support)

Common Key features:

  • Support PCI Express Base Specification 2.1 (5 GTs)
  • High performance, reliability, and low power use in Intel i350 Dual integrated MAC + PHY and SERDES chip Controllers
  • Ultra deep, packet buffer per channel lowers CPU utilization
  • Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
  • Server class reliability, availability and performance features:
    • Link Aggregation and Load Balancing
  • Priority queuing – 802.1p layer 2 priority encoding
  • Virtual LANs –802.1q VLAN tagging
  • Jumbo Frame (9.5KB)
  • 802.x flow control
  • Multicast/ broadcast Packet replication
  • Supports Vital Product Data (VPD)
  • LEDs indicators for link/Activity/Speed status

PE2G2SFPI35 Server Adapter

Dual Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM2 Based

SFP Gigabit Ethernet Technical Specifications - (SFP) Adapters:

SFP (Small Form Factor Pluggable) supports: 1Gb SERDES interfaces supports 1000Base-X in order to connect with SFP to 1000Base-SX / 1000Base-LX / 1000Base-T SFP transceivers.
IEEE Standard / Network topology:
with 1000Base-T SFP
Gigabit Ethernet (1000Mb/s only), 1000Base-T
IEEE Standard / Network topology:
with 1000Base-SX SFP
Fiber Gigabit Ethernet, 1000Base-SX (850nM)
IEEE Standard / Network topology:
with 1000Base-LX SFP
Fiber Gigabit Ethernet, 1000Base-LX (1310nM)

SFP Gigabit Ethernet Technical Specifications - (SFP 1000Base-SX) Adapters:

IEEE Standard / Network topology:
with 1000Base-SX S
Fiber Gigabit Ethernet, 1000Base-SX (850nM)
Cables and Operating distance: Multimode fiber:
220m at 62.5 um
550m at 50 um
Optical Output Power: Minimum: -9 dBm
Optical Receive Sensitivity: Maximum: -18 dBm

SFP Gigabit Ethernet Technical Specifications - (SFP 1000Base-LX) Adapters:

IEEE Standard / Network topology:
with 1000Base-LX SFP
Fiber Gigabit Ethernet, 1000Base-LX (1310nM)
Cables and Operating distance: Single-Mode: 5000m at 9um
Multimode fiber: 550m at 50 um
550m at 62.5 um
Optical Output Power: Minimum: -3 dBm
Optical Receive Sensitivity: Maximum: -20 dBm

Operating Systems Support

Operating system support: Linux
Windows
VMware

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 2.1 ( 5 GTs)
Board Size: Low profile short add-in card: 127mm X 68.91mm (5.0”X 2.713”)
PCI Express Card Type: X4 Lane
PCI Express Voltage: +12V +- 8%
PCI Connector: Gold Finger: X4
Controllers: Intel i350AM2
I/O: 2 x SFP Transceivers located on internal bracket
Weight: 100gr (3.528 oz)
Power Consumption (-SX): Both ports at 1G: 3.12W, 0.26A @12V
Power Consumption (-LX): Both ports at 1G: 3.6W, 0.30A @12V
Power Consumption (-T): Both ports at 1G: 3.6W, 0.30A @12V
Holder: Metal Bracket: Full Height/Low profile Height
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F - 113°F)
Storage: -40°C–65°C (-40°F–149°F)
Regulation:

FCC 47CFR Part 15:2015, Subpart B, Class B
Conducted Emissions
Radiated Emissions
ICES-003: 2012 Issue 5, ClassB
VCCI V-3/2015.04, Class B
AS/NZS CISPR 22:2009 + A1(10), Class B
CE EN 55022: 2010 + AC(11), Class B
Conducted Emissions
Radiated Emissions
CE EN 55024: 2010 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2014
Harmonic Current Emissions
CE EN 61000 3-3 2013
Voltage Fluctuations and Flicker
CE IEC 61000-4-2: 2009
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:2006+A1(08)+A2(10)
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:2004+A1(10)

EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:2006
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:2009
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:2004
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per

MTBF: 128 years
* According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 40°C

LEDs

LEDs: 2 LEDs per port
Left LED : Link:
Turns on Yellow 1G Link
Turns on Green 100M Link
Right LED: Link / Act:
Turn on Link (Green),
Blinks on Activity (Green)
LEDs location: LEDs are located on the PCB, visible via holes in the metal bracket holder
Connectors: (2) Small Form Factor Pluggable (SFP) Cage

PE2G2SFPI35 Server Adapter

Dual Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM2 Based

P/N

Description

Notes

PE2G2SFPI35 Dual Port SFP Gigabit Ethernet PCI Express Server Adapter X4, Based on Intel i350AM2, Low-Profile, RoHS compliant
PE2G2SFPI35-SX Dual Port SFP (SX) Gigabit Ethernet PCI Express Server Adapter X4, Based on Intel i350AM2, Low-Profile, with 1000Base-SX SFP, RoHS compliant
PE2G2SFPI35-LX Dual Port SFP (LX) Gigabit Ethernet PCI Express Server Adapter X4, Based on Intel i350AM2, Low-Profile, with 1000Base-LX SFP, RoHS compliant
PE2G2SFPI35-T Dual Port SFP (T) Gigabit Ethernet PCI Express Server Adapter X4, Based on Intel i350AM2, Low-Profile, with 1000Base-T SFP, RoHS compliant



Model P/N -LP

-LP: Assemble Low Profile Metal Bracket

1V1
