PE2G2SFPi35-GXX Server Adapter

Dual Port SGMII SFP Gigabit Intel® i350 Based

Silicom’s Dual Port SGMII SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 SFP Gigabit Ethernet network interface card that is based on a single chip, non-Bridged Dual port GBE controller.

Silicom’s Dual Port SGMII SFP Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

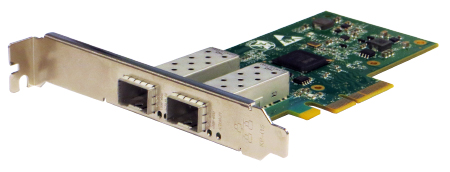

PE2G2SFPI35-GXX 1G NIC

Silicom’s Dual Port SGMII SFP Gigabit Ethernet Server adapter is based on Intel i350 Dual port Gigabit Ethernet MAC+PHY of Intel Controller. The Silicom i350 support PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV).

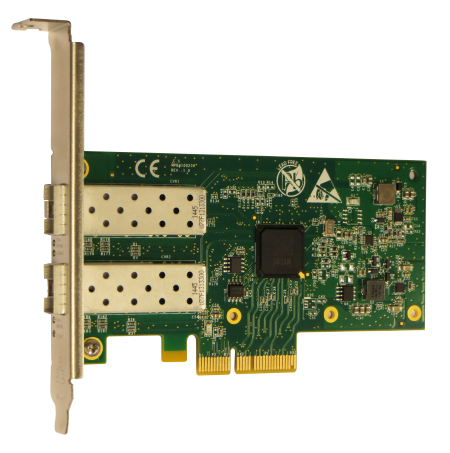

PE2G2SFPI35-GXX 1G Server Adapter

PE2G2SFPi35-GXX Server Adapter

Dual Port SGMII SFP Gigabit Intel® i350 Based

Performance Features:

  • 8 Transmit and 8 Receive queues per port.
  • Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems.
  • Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
  • Support for up to 8 virtual function ( VFs)
  • Partial replication of PCI Configuration space
  • Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port.
  • Support Direct Cache Access (DCA).
  • Support Intel I/O Acceleration Technology v3.0.
  • TSO interleaving for reduced latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • UDP, TCP and IP checksum offload
  • UDP and TCP transmit segmentation offload (TSO). machine
  • SCTP receive and transmit checksum offload.
  • Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation.
  • EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods.

-GXX: Fiber Fast/Gigabit Ethernet:

  • Support SFP transceivers with Built-in PHY supporting SGMII Interface:
  • Small Form Factor Pluggable (SFP) Cage for SFP LC connectors

-GLX10S: Fiber Fast Ethernet:

  • Single Mode 100Base-LX10 Fiber Fast Ethernet with Built-in PHY supporting SGMII Interface
  • Small Form Factor Pluggable (SFP) Cage for SFP LC connectors

-GFLXM: Fiber Fast/Gigabit Ethernet:

  • Support SFP Dual rate transceiver with Built-in PHY supporting SGMII Interface:
  • Multimode 1000Base-LX Fiber Gigabit Ethernet.
  • Multimode 100Base-FX Fiber Fast Ethernet.
  • Small Form Factor Pluggable (SFP) Cage for SFP LC connectors

Common Key features:

  • Support PCI Express Base Specification 2.1 (5 GTs)
  • High performance, reliability, and low power use in Intel i350 Dual integrated MAC + PHY and SERDES chip Controllers.
  • Ultra deep, packet buffer per channel lowers CPU utilization.
  • Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
  • Server class reliability, availability and performance features:
  • Link Aggregation and Load Balancing
  • Priority queuing – 802.1p layer 2 priority encoding.
  • Virtual LANs –802.1q VLAN tagging.
  • Jumbo Frame (9.5KB).
  • 802.x flow control.
  • Multicast/ broadcast Packet replication
  • Supports Vital Product Data (VPD)
  • LEDs indicators for link/Activity/Speed status

PE2G2SFPi35-GXX Server Adapter

Dual Port SGMII SFP Gigabit Intel® i350 Based

SFP Gigabit Ethernet Technical Specifications – (SFP) Adapters:

SFP (Small Form Factor Pluggable) supports: SGMII interfaces supports 100Base-X and 1000Base-X in order to connect with SFP to 100Base-X / 1000Base-X SFP transceivers.
Data Transfer Rate: 2000Mbit/s in full duplex mode per port (1000Base-X)
200Mbit/s in full duplex mode per port (100Base-X)
IEEE Standard / Network topology: Copper Gigabit Ethernet, 1000Base-T
Fiber Gigabit Ethernet, 1000Base-X
Fiber Fast Ethernet, 100Base-X

SFP Fast Ethernet Technical Specifications (SFP 100Base-LX10) Adapters:

SFP (Small Form Factor Pluggable) supports: SGMII interfaces supports 100Base-X in order to connect with SFP to 100Base-LX10 SFP transceivers.
Data Transfer Rate: 125Mbit/s per port (100Base-LX10)
IEEE Standard / Network topology: Fiber Fast Ethernet, 100Base-LX10 (1310nM)
Cables and Operating distance: Single mode fiber:
10Km maximum at MMF 9uM/125um
Optical Output Power: Minimum: -8 dBm
Optical Receive Sensitivity: Maximum: -31.5 dBm

SFP Gigabit Ethernet Technical Specifications (SFP 1000Base-LX , 100Base-FX) Adapters:

SFP (Small Form Factor Pluggable) supports: SGMII interfaces supports 100Base-X and 1000Base-X in order to connect with SFP to 100Base-FX and 1000Base-LX SFP transceivers.
Data Transfer Rate: 2000Mbit/s in full duplex mode per port (1000Base-LX)
200Mbit/s in full duplex mode per port (100Base-FX)
IEEE Standard / Network topology: Fiber Gigabit Ethernet, 1000Base-LX (1310nM)
Fiber Fast Ethernet, 100Base-FX (1310nM)
Cables and Operating distance: Multimode fiber:
2000m maximum at MMF 62.5/125um and 50/125uM
(100Base-FX)
550m maximum at MMF 62.5/125um and 50/125uM
(1000Base-LX)
Optical Output Power: Minimum: -9.5 dBm
Optical Receive Sensitivity: Maximum: -19 dBm

Operating Systems Support

Operating system support: Linux
Windows
VMware

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 2.1 ( 5 GTs)
Board Size: Low profile short add-in card: 127mm X 68.91mm (5.0”X 2.713”)
PCI Express Card Type: X4 Lane
PCI Express Voltage +12V +- 8%
PCI Connector: Gold Finger: X4
Controllers: Intel i350AM2
I/O: (2) SFP Cage
Holder: Metal Bracket: Full Height/Low profile Height
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC 47CFR Part 15:2013, Subpart B Class B
Conducted emissions
Radiated emissions
EN 55022: 2010, Class B
Conducted disturbance at mains terminals
Conducted disturbance at telecommunication port
Radiated disturbance
EN 61000-3-2: 2006+A1(09)+A2(09)
Harmonic current emissions
EN 61000-3-3: 2008
Voltage fluctuations and flicker
EN 55024: 2010
Immunity to electrostatic discharge (ESD)
Radiated immunity to radio frequency electromagnetic field
Conducted immunity to electrical fast transients / bursts (EFT/ B)
Conducted immunity to voltage surges
Conducted immunity to disturbances induced by radio frequency field
Conducted immunity to voltage dips and short interruptions

LEDs

LEDs:

Each Port has 2 LEDs to indicate link status and speed.

Left LED : Physical link Speed:
Yellow stay on – physical link on with 1G Speed

Right LED: Logic Link/Activity, Green
Green stay on – logic link up, no activity
Green blinking – logic link up, activity
Off – logic link off

LEDs location: LEDs are located on the PCB, visible via holes in the metal bracket holder
Connectors: (2) Small Form Factor Pluggable (SFP) Cage

PE2G2SFPi35-GXX Server Adapter

Dual Port SGMII SFP Gigabit Intel® i350 Based

P/N

Description

Notes

PE2G2SFPi35-GXX Dual Port SGMII SFP Gigabit Ethernet PCI Express Server Adapter Based on Intel SGMII i350AM2, Low-Profile, PCI-E X4, RoHS compliant
PE2G2SFPi35-GLX10S Dual Port SGMII SFP (LX10) Gigabit Ethernet PCI Express Server Adapter Support SGMII SMF, 100Base-LX, X4, Based on Intel i350AM2, Low-Profile, PCI-E X4, RoHS compliant
PE2G2SFPi35-GFLXM Dual Port SGMII SFP (FX/LX) Gigabit Ethernet PCI Express Server Adapter Support SGMII MMF (62.5u/50uM), 100Base-FX and 1000Base-LX, Based on Intel i350AM2, Low-Profile, PCI-E X4, RoHS compliant



Order information: Model P/N -LP
-LP: Assemble Low Profile Metal Bracket
