PE425G4TSi81L TimeSync Card STS1

25Gigabit Ethernet TimeSync PCI Express Gen4 Server Adapter

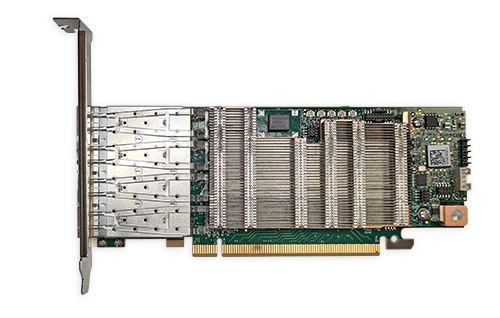

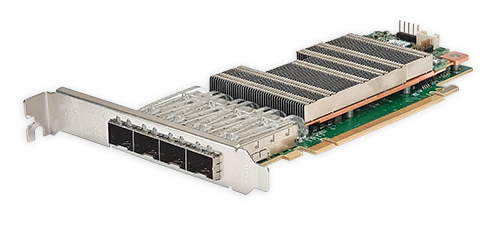

Silicom’s Time Sync (STS1) PE425G4TSi81L is a 25 Gigabit Ethernet PCI Express Gen4 TimeSync server adapter, designed for X86 Servers and high-end appliances.
The 25 Gigabit Ethernet TimeSync PCIe server adapter is based on Intel E810 chipset and best in the industry timing solution targeting 5G/ Class C wireless base station and carrier-grade systems.

Silicom’s STS1 Support 4 port of 10G/25G capabilities to synchronize host system with external clock source using 1PPS and 10MHz. The STS1 TimeSync server adapter support both 1588v2/PTP and SyncE for high clock accuracy in Master and Slave mode. STS1 design is meeting O-RAN requirements for LLS-C1, LLS-C2 and LLS-C3, modes of operations with both Boundary and Transparent clocks.

TimeSync NIC

Silicom STS line card for 4G and 5G NIC enable real-time data transmission with high timing accuracy at the lowest cost to power 5G DRAN and CRAN edge deployments:

  • Support 1588/PTP over IPv4 / IPV6, IEEE1588v2
  • Support SyncE /ITU-T G.8262
  • T-BC/T-TSC Boundary Clock and TSC Slave Clock /G.8273.2
  • T-GM Grand Master /G.8273.1 per G.8275.1 PTP Profile
  • PRTC Primary Reference Time Clock Class B/G.8272
  • T-TC Transparent Clock /G.8273.3
  • 1588 Software Stack and Servo Software in x86

TimeSync STS1

PE425G4TSi81L TimeSync Card STS1

25Gigabit Ethernet TimeSync PCI Express Gen4 Server Adapter

TymeSync:

  • Supports PTP Transparent Clock (TC) Boundary Clock (BC) OC (Master / Slave)
  • PTP over IPv4 (IEEE-1588v2) / SyncE
  • One step clock mode operation for PTP Master
  • 10Mhz and 1PPS output for measurement purpose
  • Full HW and SW TimeSync solution based on industry leading DPLL, Servo stack and PTP1588
  • Incorporated accurate OCXO +/-10ppb to keep Long-term Holdover over 4h without physical layer assist < 25us
  • Option for larger OCXO, +/-5ppb to keep Holdover over 4h < 3.5us
  • Based on Three DPLL channels
    • Packet and physical-layer frequency, phase and time synchronization
    • Physical-layer compliance ITU-T G.8262, G.8262., G.813, G.812, Telcordia GR-1244. GR-253
    • Packet-timing compliance with ITU-T G.8261, G.8263, G.8273.2, G.8273.2 (class A, B &C), G.8273.4
    • Enable 5G/Class C wireless application with sub 10nS time/ phase alignment requirements

LAN and Virtualization Features:

  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
  • Remote SAN boot with data path intelligent offload
  • VEB (Virtual Ethernet Bridge) & Edge Virtual Bridging / 802.1Qbg
  • VMDq for VMware Netqueue* and Microsoft DVMQ*
  • SR-IOV (Single Root I/O Virtualization): up to 256 Virtual Functions
  • iSCSI and PXE boot (legacy and UEFI)
  • Support for standard and custom network headers
  • Partially Programmable Pipeline and Advanced Traffic Steering
  • Intel® Ethernet Flow Director – 8000 On-Die perfect match filters
  • 1536 queues/Physical Function (PF), >64 RSS/PF and 256 VMDq/PF
  • Data Center Bridging (DCB) up to 8 traffic classes

SFP28 25Gigabit Ethernet:

  • 25Gigabit Ethernet Adapter with SFP cage supports :
  • -ZS: Fiber 25 Gigabit Ethernet 25GBASE-SR:
    • 25GBase-SR with 25G 850nM Small Form Factor Pluggable (SFP28)
  • -ZL: Fiber 25 Gigabit Ethernet 25GBASE-LR:
    • 25GBase-LR with 25G 1310nM Small Form Factor Pluggable (SFP28)
  • -SR: Fiber 10 Gigabit Ethernet 10GBASE-SR:
    • 10GBASE-SR with 10Gigabit 850nM Small form Factor Pluggable (SFP+)
  • -LR: Fiber 10 Gigabit Ethernet 10GBASE-LR:
    • 10GBASE-LR with 10Gigabit 1310nM Small form Factor Pluggable (SFP+)

-ZS: Fiber 25 Gigabit Ethernet 25GBASE-SR:

  • 25 Gigabit Fiber Ethernet port supports 25GBASE-SR (850nM LAN PHY)
  • 25Gigabit 850nM Small form Factor Pluggable (SFP28)

-ZL: Fiber 25 Gigabit Ethernet 25GBASE-LR:

  • 25 Gigabit Fiber Ethernet port supports 25GBASE-LR (1310nM LAN PHY)
  • 25Gigabit 1310nM Small form Factor Pluggable (SFP28)

-SR: Fiber 10 Gigabit Ethernet 10GBASE-SR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-SR (850nM LAN PHY)
  • 10Gigabit 850nM Small form Factor Pluggable (SFP+)

-LR: Fiber 10 Gigabit Ethernet 10GBASE-LR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-LR (1310nM LAN PHY)
  • 10Gigabit 1310nM Small form Factor Pluggable (SFP+)

LAN and Virtualization Features:

  • SR-IOV (Single Root I/O Virtualization): up to 256 Virtual Functions
  • Support for standard and custom network headers
  • Partially Programmable Pipeline and Advanced Traffic Steering
  • Intel® Ethernet Flow Director – 8000 On-Die perfect match filters
  • 1536 queues/Physical Function (PF), >64 RSS/PF and 256 VMDq/PF

Host Interface:

  • PCIe x16 lanes from/to host via gold fingers of edge card
  • Support PCI Express Base Specification Revision 4.0, 16GT/s, 8GT/s, 5GT/s or 2.5GT/s

PE425G4TSi81L TimeSync Card STS1

25Gigabit Ethernet TimeSync PCI Express Gen4 Server Adapter

General Technical Specifications: PE425G4TSi81L-XR

Interface Standard:PCI-Express Base Specification Revision 4.0 (16 GTs)
Board Size: Low profile short add-in card:
167.64mm X 64.39mm (6.6”X 2.535”)
PCI Express Card Type:x16 Lane
On Board Connector Voltage:+12V +/-8%
+3.3 =/- 8%
PCI Connector:Gold Finger: x16 Lane
Controllers:Intel E810-CAM1
DPLL:1588 / SyncE
Holdover:Long-term Transient Response (Holdover) performance, without physical layer assist, in 50 +/-10°C TA:
For TBD, expected 3.5us TE over 4 hours
For TBD, expected 25us TE over 4 hours
Holder:Metal Bracket
Power Consumption:Estimated maximum power consumption :40.05W- 46.1W
Operating Temperature:0°C – 45°C (32°F – 113°F)
Air Flow Requirements:200 ft./min
Storage:-40°C–65°C (-40°F–149°F)
Regulation:Card shall meet CE, FCC Class B, ROHS requirements.
MTBF*:

Operating conditions: Environment: GB, Temperature: 40.00 °C
Current mode: Operating
FR Units: FIT
Default prediction Method: Telcordia Issue 4

Assembly Ref.Des.: PE425G4TSI81L, ID: 1, Description: Quad Port Fiber 25Gb TimeSync PCI-E Server Adapt.
Environment: GB, Temperature: 40.00 °C,F.R.( FIT ): 276.28 ,
MTBF(hours): 3619520.13
MTBF(years): 413.19

LEDs

LEDs:

Each Port has 2 LEDs to indicate link status and speed.
Link: Physical link Speed:

  • Green stay on – physical link on with 25G Speed (Max speed)
  • Yellow stay on – physical link on with 10G / 1G / 100M (Not max Speed)
  • Off – physical link off.

Link /ACT: Logic Link/Activity, Green

  • Green stay on – logic link up, no activity
  • Green blinking – logic link up, activity
  • Off – logic link off
LEDs location: LEDs are located on the PCB, visible via holes in the metal bracket.
Connector: Quad Port SFP28 / zSFP+ Cage

SFP28 25Gigabit Ethernet Technical Specifications Adapters:

SFP28 (Small Form Factor Pluggable) supports:SFI interfaces supports 25GBase-R PCS and 25 Gigabit PMA in order to connect with SFP28 to 25GBase-SR
25GBase-SR SFP28:
IEEE Standard / Network topology:		Fiber 25Gigabit Ethernet, 25GBASE-SR (850nM LAN PHY).
25GBase-SR SFP28:
Data Transfer Rate:		25.78125Gbps
25GBase-LR SFP28:
IEEE Standard / Network topology:		Fiber 25Gigabit Ethernet, 25GBASE-LR (1310nM LAN PHY)
25GBase-LR SFP28:
Data Transfer Rate:		25.78125Gbps
25GBase-LR SFP28:
Cables and Operating distance Up to:		Single-Mode: 10000m at 9um

-ZS: Fiber 25GBASE-SR Technical Specifications:

Output Transmit Power (25G):Minimum: -1.42 dBm
Optical Receive Sensitivity (25G):Maximum: -5.98 dBm

Operating Systems:

Operating system support: Linux



PE425G4TSi81L TimeSync Card STS1

25Gigabit Ethernet TimeSync PCI Express Gen4 Server Adapter

P/N

Description

Notes

PE425G4TSi81L-XRQuad Port SFP28 25 Gigabit Ethernet PCI Express Server Adapterx16 Gen4, Low Profile, Based on Intel E810-CAM1, Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver.
PE425G4TSi81L-ZSQuad Port Fiber (SR) 25 Gigabit Ethernet PCI Express Server Adapterx16 Gen4, Based on Intel E810-CAM1, Low-profile, on board support for Fiber SR
PE425G4TSi81L-ZLQuad Port Fiber (LR) 25 Gigabit Ethernet PCI Express Server Adapterx16 Gen4, Based on Intel E810-CAM1, Low-profile, on board support for Fiber LR
PE425G4TSi81L-SRQuad Port Fiber (SR) 10 Gigabit Ethernet PCI Express Server Adapterx16 Gen4, Based on Intel E810-CAM1, Low-profile, on board support for Fiber SR
PE425G4TSi81L-LRQuad Port Fiber (LR) 10 Gigabit Ethernet PCI Express Server Adapterx16 Gen4, Based on Intel E810-CAM1, Low-profile, on board support for Fiber LR
