PE425G4i71L Server Adapter Intel® XXV710-AM2 Based

Quad Port Fiber SFP28 25G Ethernet PCIe Server Adapter Intel® Based

Get Optimal Network Performance with Silicom’s PE425G4i71L 25 Gigabit Ethernet PCI Express Server Adapter

Silicom’s PE425G4i71L 25G Ethernet PCI Express server adapter Intel XXV710 AM2 Based is designed for Servers and high-end appliances. The Silicom PE425G4i71L 25 Gigabit Ethernet PCI Express Server adapter offer simple integration into PCI Express x8 to 25 Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.

Streamlined Networking with Silicom’s Fully Integrated 25 Gigabit Ethernet Media Access Control (MAC) and SFI Interface

The Silicom 25 Gigabit Ethernet PCI Express server adapters are based on Intel XXV710 Ethernet controller with fully integrated 25 Gigabit Ethernet Media Access Control (MAC), and SFI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

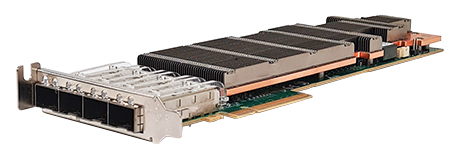

Intel XXV710 AM2 Based PE425G4I71L Server Adapter

Silicom’s PE425G4i71L: The Ultimate Solution for Mission-Critical High-Powered Networking Applications in High-Performance Servers

Silicom’s PE425G4i71L 25G Ethernet PCI-Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

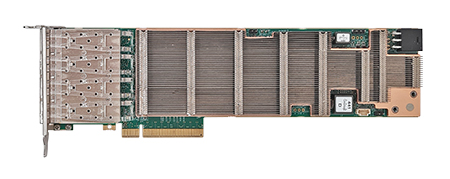

Intel XXV710 AM2 Based PE425G4I71L Server Adapter nic

PE425G4i71L Server Adapter Intel® XXV710-AM2 Based

Quad Port Fiber SFP28 25G Ethernet PCIe Server Adapter Intel® Based

SFP28 25 Gigabit Ethernet:

  • 25 Gigabit Ethernet Adapter with SFP cage support:

-ZS: Fiber 25 Gigabit Ethernet 25GBASE-SR:

  • 25 Gigabit Fiber Ethernet port supports 25GBASE-SR (850nM LAN PHY)
  • 25GBase-SR with 25G 850nM Small Form Factor Pluggable (SFP28 100m MMF)

-ZL: Fiber 25 Gigabit Ethernet 25GBASE-LR:

  • 25 Gigabit Fiber Ethernet port supports 25GBASE-LR (1310nM LAN PHY)
  • 25GBase-LR with 25G 1310nM Small Form Factor Pluggable (SFP28 10km SMF)

-SR: Fiber 10 Gigabit Ethernet 10GBASE-SR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-SR (850nM LAN PHY)
  • 10GBASE-SR with 10 Gigabit 850nM Small form Factor Pluggable (SFP+ 400m MMF)

-LR: Fiber 10 Gigabit Ethernet 10GBASE-LR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-LR (1310nM LAN PHY)
  • 10GBASE-LR with 10 Gigabit 1310nM Small form Factor Pluggable (SFP+ 10km SMF)

LAN and Virtualization Features:

  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
  • Remote SAN boot with data path intelligent offload
  • VEB (Virtual Ethernet Bridge) & Edge Virtual Bridging / 802.1Qbg
  • VMDq for VMware Netqueue* and Microsoft DVMQ*
  • SR-IOV (Single Root I/O Virtualization): up to 128 Virtual Functions
  • iSCSI and PXE boot (legacy and UEFI)
  • Support for standard and custom network headers
  • Partially Programmable Pipeline and Advanced Traffic Steering
  • Intel® Ethernet Flow Director – 8000 On-Die perfect match filters
  • 1536 queues/Physical Function (PF), >64 RSS/PF and 256 VMDq/PF
  • Data Center Bridging (DCB) up to 8 traffic classes

Host Interface:

  • PCIe x8/G4 lanes from/to host via gold fingers of edge card

PE425G4i71L Server Adapter Intel® XXV710-AM2 Based

Quad Port Fiber SFP28 25G Ethernet PCIe Server Adapter Intel® Based

SFP28 25Gigabit Ethernet Technical Specifications Adapters:

SFP28 (Small Form Factor Pluggable) supports: SFI interfaces supports 25GBase-R PCS and 25 Gigabit PMA in order to connect with SFP28 to 25GBase-SR
25GBase-SR SFP28:
IEEE Standard / Network topology
Fiber 25 Gigabit Ethernet, 25GBASE-SR (850nM LAN PHY).
25GBase-SR SFP28:
Data Transfer Rate :
25.78125Gbps
25GBase-LR SFP28:
IEEE Standard / Network topology:
Fiber 25 Gigabit Ethernet, 25GBASE-LR (1310nM LAN PHY)
25GBase-LR SFP28:
Data Transfer Rate:
25.78125Gbps
25GBase-LR SFP28:
Cables and Operating distance Up to:
Single-Mode: 10000m at 9um

-ZS: Fiber 25GBASE-SR Technical Specifications:

Output Transmit Power (25G): Minimum: -1.42 dBm
Optical Receive Sensitivity (25G): Maximum: -5.98 dBm

-ZL: Fiber 25GBASE-LR Technical Specifications:

Output Transmit Power (25G): Minimum: -5.0 dBm
Optical Receive Sensitivity (25G): Maximum: -11.3 dBm

General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 4.0 (16 GT/s)
Board Size: Low profile height – ¾ add-in card.
PCI Express Card Type: X8 Lane
On Board Connector Voltage: +12V +/-8%
PCI Connector: X8 Lane
Controllers: (2) Intel XXV710-AM2
Holder: Metal Bracket
Power Consumption: Chipset (without transceivers):
Max: Intel 23.2W + PCie Switch 16.7W
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Air Flow Requirements: 200 ft./min
SRIOV Capable: Yes
Storage: -40°C–65°C (-40°F–149°F)
Regulation: Card shall meet CE, FCC Class B, ROHS requirements
Operating system support: Windows
Linux
FreeBSD
VMware

LEDs

LEDs:

Each Port has 2 LEDs to indicate link status and speed.

Link: Physical link Speed:
Green stay on – physical link on with 25G Speed
Yellow stay on – physical link on with 10G Speed
Off – physical link off.

Link /ACT: Logic Link/Activity, Green
Green stay on – logic link up, no activity
Green blinking – logic link up, activity
Off – logic link off

LEDs location: LEDs are located on the PCB, visible via light pipe to the holes on the metal bracket.
Connectors: Quad Port SFP28 / zSFP+ Cage

PE425G4i71L Server Adapter Intel® XXV710-AM2 Based

Quad Port Fiber SFP28 25G Ethernet PCIe Server Adapter Intel® Based

P/N

Description

Notes

PE425G4i71L-XR Quad Port SFP28 25 Gigabit Ethernet PCI Express Server Adapter

X8 GEN4, Low Profile, Based on Intel XXV710-AM2,

Support Direct Attached Copper cable, Support Silicom SFP28 approved transceiver. RoHS compliant



Order information: Model P/N -LP /

-LP: Assemble Low Profile Metal Bracket
