PE310G4I71-T Server Adapter

Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® XL710 based

Silicom’s 10 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances. The Silicom 10 Gigabit Ethernet PCI Express Server adapters offer simple integration into any PCI Express X8 to 10GBase-T Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.

The Silicom 10 Gigabit Ethernet PCI Express server adapters are based on Intel® XL710BM1 Ethernet controller with fully integrated Gigabit Ethernet Media Access Control (MAC) and Intel® X557-AT4 10 GbE PHY. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

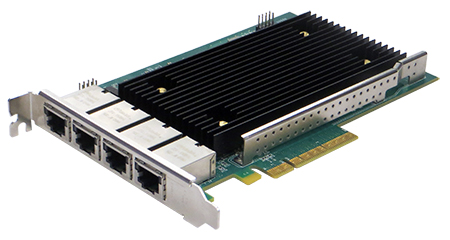

PE310G4i71-T card

Silicom’s 10 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

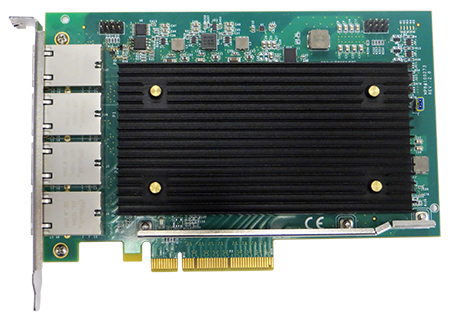

PE310G4i71-T server adapter

PE310G4I71-T Server Adapter

Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® XL710 based

Copper 10 Gigabit Ethernet 10GBASE-T:
• Integrated 10 Gigabit Copper PHY supports 10GBASE-T, 1000 BASE- T and 100BASE- TX.
• Triple speed 10Gbps (10GBase-T), 1000Mbps (1000Base-T) and 100 Mbps (100Base-Tx).
• RJ-45 connector supports CAT 6A cable.

Performance Features:
• Support for jumbo frame up to 9.5KB
• Flow control support
• Priority Flow Control (draft IEEE 802.1Qbb)
• Enhanced Transmission Selection (draft IEEE802.1az)
• Statistics management and RMON
• 802.1q VLAN support
• DCB/DCB-X support
• Message Signal interrupts (MSI-X)
• Storage – Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE

Host Interface:
• PCI Express X8 lanes
• Support PCI Express Base Specification 3.0 (8GT/sec)

LAN and Virtualization Features:
• Network Virtualization offloads for VXLAN and NVGRE
• Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
• Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
• Physical Functions – Up to 8 per port, up to 16 per device
• Support for 128 Virtual Device Queues (VMDq) per port
• Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
• Virtualization – Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
• TCP/IP/L2 features:
• Receive Side Scaling (RSS)
• Large Send Offload (LSO)
• TCP/UDP/IP/SCTP Checksum Offload
• IPV4, IPV6

PE310G4I71-T Server Adapter

Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® XL710 based

10GBASE-T Copper Ethernet Adapters Technical Specifications:

IEEE Standard / Network topology: Copper 10Gigabit Ethernet, 10GBASE-T, IEEE 802.3an
Gigabit Ethernet, 1000Base-T
100 Mb Ethernet : 100BASE- TX
Data Transfer Rate: 20 Gb/s, 2000Mb/s and 200 Mb/s in full duplex mode per port
Cables and Operating distance: 100Base-Tx Category 5 maximum 100m
1000Base-T Category 5E maximum 100m
10GBase-T Category 6A maximum 100m

-Operating Systems:

Operating system support: Windows
Linux

-PE310G4I71-T: General Technical Specifications

Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GT/sec)
Board Size: 167.6mm X 106.6mm(6.600″ X 4.200″)
PCB thickness is 0.062 inch
PCI Express Card Type: X8 Lane
PCI Express Voltage: +12V +- 8%
PCI Connector: X8 Lane
Controller: Intel® XL710BM1
Intel® X557-AT4
Holder: Metal Bracket
Weight: 160gr (5.64 oz)
Power Consumption: 18.36W (1.53A at 12v) – Full 10GBase-T traffic
12.60W (1.05A at 12v) – Full 1000Base-T traffic
12.84W (1.07A at 12v) – Full 100Base-T traffic
10.32W (0.86A at 12V) – No Link
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F – 113°F)
SRIOV Capable: Yes
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC 47CFR Part 15:2013, Subpart B Class B
Conducted emissions
Radiated emissions
EN 55022: 2010, Class B
Conducted disturbance at mains terminals
Conducted disturbance at telecommunication port
Radiated disturbance
EN 61000-3-2: 2006+A1(09)+A2(09)
Harmonic current emissions
EN 61000-3-3: 2008
Voltage fluctuations and flicker
EN 55024: 2010
Immunity to electrostatic discharge (ESD)
Radiated immunity to radio frequency electromagnetic field
Conducted immunity to electrical fast transients / bursts (EFT/ B)
Conducted immunity to voltage surges
Conducted immunity to disturbances induced by radio frequency field
Conducted immunity to voltage dips and short interruptions

Leds/ Connectors Specifications:

LEDs: (2) LED per port
Speed LED(Left):
Link of 1Gb/s: Turns on link (yellow)
Link of 10Gb/s: Turns on link (green)
Link /ACT LED(Right) :
Turns on link , blinks on activity (green)
LEDs location: LEDs are located in the RJ45 connector port.
Connector: (4) Shielded RJ-45

PE310G4I71-T Server Adapter

Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® XL710 based

P/N

Description

Notes

PE310G4I71-T Quad Port Copper 10GBE PCI-E G3 Server Adapter X8 Gen3, Based on Intel® XL710BM1 + X557-T4, RoHS compliant



Order information: Model P/N

1V2
