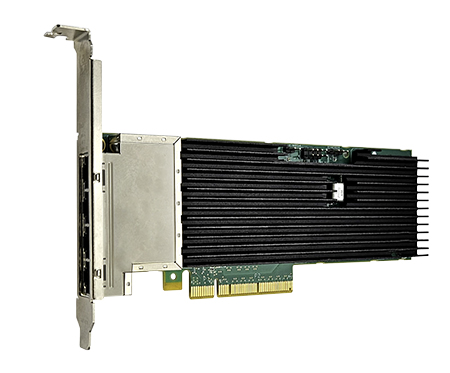

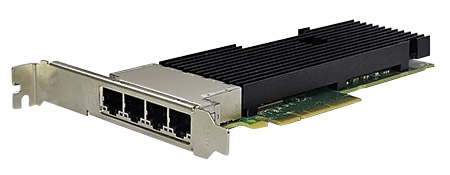

PE310G4I50L-T Server Adapter

Quad Port Copper 10 Gigabit Intel® X550 Based

Silicom’s 10GB Ethernet card PCI Express designed for Servers and high-end network appliances. The Silicom 10 Gigabit Ethernet PCI Express Server adapter offers simple integration into PCI Express Bifurcation x8 (2×4) to UTP 10GBase-T Gigabit Networks.

The Silicom’s 10GB Ethernet card PCI Express based on Intel X550. The Intel X550 10 Gigabit Ethernet controller includes two fully integrated Ethernet Media Access Control (MAC) and two fully integrated 10GBASE-T copper PHYs.

The Intel X550 10 Gigabit Ethernet controllers includes hardware acceleration that can offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

Silicom’s 10GB Ethernet cards PCI-Express are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

PE310G4I50L-T Server Adapter

Quad Port Copper 10 Gigabit Intel® X550 Based

Copper 10 Gigabit Ethernet 10GBASE-T:

Integrated 10 Gigabit Copper PHY supports 10GBASE-T, 1000BASE- T and 100BASE- TX.
Triple speed 10Gbps (10GBase-T), 1000Mbps (1000Base-T) and 100 Mbps (100Base-Tx).
RJ-45 connector supports CAT 6A cable.

Performance Features:

Support for jumbo frame up to 15.5KB
Flow control support
Statistics management and RMON
802.1q VLAN support
TCP segmentation offload: up to 256KB.
IPV6 Supports for IP/ TCP and IP/UDP Receive Checksum offload
Fragmented UDP checksum offload for Packet Reassembly
Message Signal interrupts (MSI)
Message Signal interrupts (MSI-X)
Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
Flow Director (16 x 8 and 32 x 4)
128 Transmit queues
Support for 64 virtual machines per port (64 VMs x 2 queues)
Support Direct Cache Access (DCA)
Large on chip receive packet buffer (384 KB)
Large on chip transmit packet buffer (160KB)

Host Interface:

Bifurcation mode of PCIe x4x4 lanes from/to host via gold fingers of edge card
Support PCI Express Base Specification 3.0, 8GT/s, 5GT/s or 2.5GT/s

PE310G4I50L-T Server Adapter

Quad Port Copper 10 Gigabit Intel® X550 Based

10GBASE-T Copper Ethernet Adapters Technical Specifications
IEEE Standard / Network topology:	Copper 10Gigabit Ethernet, 10GBASE-T, IEEE 802.3an Gigabit Ethernet, 1000Base-T 100 Mb Ethernet : 100BASE- TX
Data Transfer Rate:	20 Gb/s, 2000Mb/s and 200 Mb/s in full duplex mode per port
Cables and Operating distance:	100Base-TX Category 5 maximum 100m 1000Base-T Category 5E maximum 100m 10GBase-T Category 6A maximum 100m
Operating Systems Support
Operating system support:	Windows Linux
General Technical Specifications
Interface Standard:	PCI-Express Base Specification Revision 3.0 (8GT/s)
Board Size:	Low profile half-length add-in card 167.65mm X 68.91mm (6.6”X 2.713”)
PCI Express Card Type:	X8 Lane (PCIe bifurcation 2×4)
PCI Express Voltage:	+12V +- 8%
PCI Connector:	Gold Finger: X8 Lane, PCIe bifurcation 2×4
Controller:	(2) Intel x550
Holder:	Metal Bracket
I/O:	RJ45
Operating Humidity:	0%–90%, non-condensing
Power Consumption:	17.05W, 1.4 A at 12V: Typical all ports operate at 10Gb/s, 11.05W, 0.92 A at 12V: Typical all ports operate at 1Gb/s, 7.2W, 0.666 A at 12V: Typical all ports operate at 100Mb/s, 10.2W, 0.85 A at 12V: Typical No link at all ports
Operating Temperature:	0°C – 40°C (32°F – 104°F)
Storage:	-40°C–65°C (-40°F–149°F)
EMC Certifications:	Card shall meet CE, FCC Class B, ROHS requirements
*MTBF:**	540 (Years) *According to Telcordia SR-332 Issue 2 Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature – 40°C.
LEDs
LEDs:	Each Port has 2 LEDs to indicate link status and speed. Link: Green stay on – physical link on with 10G Speed Yellow stay on – physical link on with 1G Speed Off – physical link on with 100M Speed Link /ACT: Logic Link/Activity, Green Green stay on – logic link up, no activity Green blinking – logic link up, activity Off – logic link off
LEDs location:	LEDs are located in the RJ45 connector port
Connectors:	(4) Shielded RJ-45

PE310G4I50L-T Server Adapter

Quad Port Copper 10 Gigabit Intel® X550 Based

P/N	Description	Notes
PE310G4i50L-T	Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter	2X4 PCIe Gen 3.0 Bifurcation, Based on Intel X550-AT2, RoHS compliant
