PE210G1SPI9 Server Adapter

Single Port Fiber 10 Gigabit Ethernet PCI Express Server Adapter Intel® 82599ES Based

Silicom’s 10 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances. The Silicom 10 Gigabit Ethernet PCI Express Server adapters offer simple integration into any PCI Express X8 to 10Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.

The Silicom 10GB Network Cards Ethernet PCI Express server adapters are based on Intel 82599ES Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and SFI ports.



PE210G1SPI9 10G Server Adapter

In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

Silicom’s 10 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

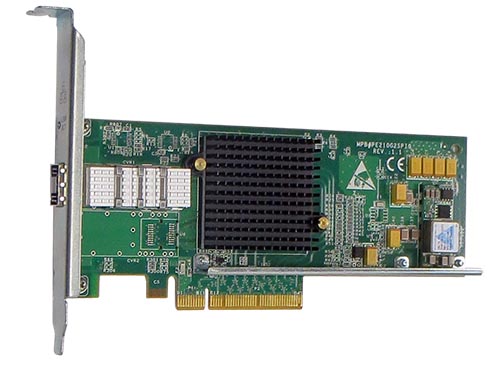

PE210G1SPI9 10g nic

PE210G1SPI9 Server Adapter

Single Port Fiber 10 Gigabit Ethernet PCI Express Server Adapter Intel® 82599ES Based

Fiber 10 Gigabit Ethernet 10GBASE-SR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-SR (850nM LAN PHY)
  • 10Gigabit 850nM Small form Factor Pluggable (SFP+)

Fiber 10 Gigabit Ethernet 10GBASE-LR:

  • 10 Gigabit Fiber Ethernet port supports 10GBASE-LR (1310nM LAN PHY)
  • 10 Gigabit 1310nM Small form Factor Pluggable (SFP+)

Fiber Gigabit Ethernet 10GBASE-SRD:

  • Dual rate (1 Gigabit and 10 Gigabit) Fiber Ethernet port supports 10GBASE-SR and 1000Base-SX (850nM LAN PHY)
  • 10 Gigabit 850nM Small form Factor Pluggable (SFP+)

Fiber Gigabit Ethernet 10GBASE-LRD:

  • Dual rate (1 Gigabit and 10 Gigabit) Fiber Ethernet port supports 10GBASE-LR and 1000Base-LX (1310nM LAN PHY)
  • 10 Gigabit 1310nM Small form Factor Pluggable (SFP+)

Host Interface:

  • PCI Express X8 lanes
  • Support PCI Express Base Specification 2.0 (5GT/sec)
  • Low-Profile Adapter
  • Low power
  • LC connector

Performance Features:

  • IPV4 and IPV6 Supports for IP/ TCP and IP/UDP Receive Checksum offload
  • Fragmented UDP checksum offload for Packet Reassembly
  • CPU utilization- the 82599 supports reduction in CPU utilization, mainly by supporting Receive Side Coalescing (RSC)
  • Support for 16 virtual machine Device Queues ( VMDq) per port
  • Support Direct Cache Access ( DCA)
  • Advanced memory architecture reduces latency by preceding TSO packets. A TSO packet may be interleaved with other packets going to the wire
  • Minimized device I/O interrupts using MSI and MSI-X
  • Offload of TCP / IP / UDP checksum calculation and TCP segmentation
  • Large on chip receive packet buffer (512 KB)
  • Large on chip transmit packet buffer (160KB)
  • Supports the VPD (Vital Product Data) capability defined in the PCI specification ver. 3.0
  • Time sync- IEEE1588- Precision Time Protocol (PTP)
  • Supports the BCN (Backward Congestion Notification) protocol in addition to the EEDC functionality

LAN Features:

  • IEEE 802.x flow control support
  • IEEE 802.q VLAN tagging support
  • Supports a mode where all received and sent packets have at least one VLAN tag in addition to the regular tagging
  • IEEE 802.1p layer 2 priority encoding
  • Jumbo Frame (up to 16KB).
  • Link Aggregation and Load Balancing.
  • RFC2819 RMON MIB statistics
  • TCP Segmentation Offload Up to 256KB
  • Ipv6 Support for IP/TCP Receive Checksum Offload
  • DDP Offload
  • LEDs indicators for link/Activity and speed.

Security Features:

  • IEEE P802.1AE LinkSec specification. It incorporates an inline packet crypto unit to support both privacy and integrity checks on a packet by packet basis. The transmit data path includes both encryption and signing engines. On the receive data path it includes both decryption and integrity checkers
  • IPsec off load for a given number of flows
  • Off-load IPsec for up to 1024 Security associations (SA) for each of TX and RX
  • AH and ESP protocols for authentication and encryption
  • AES-128-GMAC and AES-GCM crypto engines
  • Transport mode encapsulation

PE210G1SPI9 Server Adapter

Single Port Fiber 10 Gigabit Ethernet PCI Express Server Adapter Intel® 82599ES Based

Fiber Gigabit Ethernet Technical Specifications - (10GBASE-SR) Adapters:

IEEE Standard / Network topology:Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
Data Transfer Rate:
10.3125GBd
Cables and Operating distance Up to:
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
Optical Transmit Power:
Typical: -2.39 dBm
Minimum: -7.3 dBm
Optical Receive Sensitivity: Typical: -15.83 dBm
Maximum: -11.1 dBm
Maximum Input Power:Maximum: +0.5dBm

Fiber 10 Gigabit Ethernet Technical Specifications - (10Base-LR) Adapters:

IEEE Standard / Network topology: Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
Data Transfer Rate:10.3125GBd
Cables and Operating distance: Single-Mode: 10000m at 9um
Output Transmit Power:Typical: -1.5 dBm
Minimum: -8.2 dBm
Optical Receive Sensitivity:Typical: -20.26 dBm
Maximum: -14.4 dBm
Maximum Input Power:Maximum: +0.5dBm

Fiber Gigabit Ethernet Technical Specifications - (10GBASE-SRD) Adapters:

IEEE Standard / Network topology: Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM)
Fiber Gigabit Ethernet, 1000Base-SX (850nM)
Data Transfer Rate: 10.3125GBd
1.25GBd
Cables and Operating distance:
Up to:
10GBase-SR:
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
1000Base-SX:
62.5um, 160MHz/Km 220m
62.5um, (OM1)200MHz/Km 275m
50um, 400MHz/Km 500m
50um, (OM2)500 MHz/Km 550m
Output Transmit Power:10GBase-SR:
Minimum: -5 dBm
1000Base-SX:
Minimum: -9.5 dBm
Optical Receive Sensitivity:10GBase-SR:
Maximum: -11.1 dBm
1000Base-SX:
Minimum: -17 dBm
Maximum Input Power:10GBase-SR / 1000Base-SX: Maximum: +0.5dBm

Operating Systems Support

Operating system support: Windows
Linux

General Technical Specifications

Interface Standard:PCI-Express Base Specification Revision 2.0 (5 GT/sec)
Board Size: Low profile add-in card: 167.65mm X 68.91mm (6.60”X 2.713”)
PCI Express Card Type:X8 Lane
PCI Express Voltage:+12V +- 8%
PCI Connector: X8 Lane
Controller: Intel 82599ES
Holder:Metal Bracket
Weight:120gr (4.233 oz)
Power Consumption:3.96W, 0.33A at 12V: Typical all ports operate at 10Gbit/s.
3.96W, 0.33A at 12V: Typical No link at all ports
3.36W, 0.28A at 12V: Typical No SFP+
Operating Humidity:0%–90%, non-condensing
Operating Temperature: 0°C – 50°C (32°F - 122°F)
Storage: -20°C–65°C (-4°F–149°F)
EMC Certifications: FCC Part 15, Subpart B Class B
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per

LEDs

LEDs:LED per port
Link /ACT : Turns on link , blinks on activity (green)
LEDs location:LED is located on the PCB, visible via holes in the metal bracket holder
Connectors:LC

PE210G1SPI9 Server Adapter

Single Port Fiber 10 Gigabit Ethernet PCI Express Server Adapter Intel® 82599ES Based

P/N

Description

Notes

PE210G1SPI9-SR Single Port Fiber (SR) 10 Gigabit Ethernet PCI Express Server AdapterX8, Based on Intel 82599ES, Low-profile, on board support for Fiber SR, RoHS compliant
PE210G1SPI9-LRSingle Port Fiber (LR) 10 Gigabit Ethernet PCI Express Server AdapterX8, Based on Intel 82599ES, Low-profile, on board support for Fiber LR, RoHS compliant
PE210G1SPI9-SRDSingle Port Fiber (SX/SR) 10 Gigabit Ethernet PCI Express Server AdapterX8, Based on Intel 82599ES, Low-profile, on board support for Fiber SX and SR, RoHS compliant
PE210G1SPI9-LRDSingle Port Fiber (LX/LR) 10 Gigabit Ethernet PCI Express Server AdapterX8, Based on Intel 82599ES, Low-profile, on board support for Fiber LX and LR, RoHS compliant



Model P/N -LP /
-E: PXE Enable
-LP: Assemble Low Profile Metal Bracket
