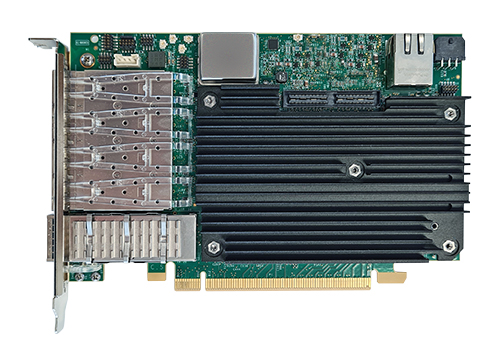

STS2 P410G8TS81 TimeSync Card
8 Ports 10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock, PCIe GEN4 TimeSync card
Maximize Your Network Efficiency with Silicom’s STS2 TimeSync Server Adapter
Silicom’s TimeSync (STS2) P410G8TS81 is a 1/10 Gigabit Ethernet PCI Express Gen4 TimeSync server adapter, designed for X86 Servers and high-end appliances.
The 1/10 Gigabit Ethernet TimeSync PCIe server adapter is based on Intel E810 chipset and best in the industry timing solution targeting 5G Class C wireless base station and carrier-grade systems.
Silicom’s STS2 Support 8 port of 1G/10G capabilities to synchronize host system with external clock source using 1PPS and 10MHz. The STS2 TimeSync server adapter support both 1588v2/PTP and SyncE for high clock accuracy in Master and Slave mode. STS2 design is meeting O-RAN requirements for LLS-C1, LLS-C2 and LLS-C3, modes of operations with both Boundary and Transparent clocks.
Silicom TimeSync STS Line Card: High Timing Accuracy at Low Cost for 5G DRAN and CRAN Edge Deployments
Silicom TimeSync STS line card for 4G and 5G NIC enable real-time data transmission with high timing accuracy at the lowest cost to power 5G DRAN and CRAN edge deployments:
- Support 1588/PTP over IPv4 / IPV6, IEEE1588v2
- Support SyncE /ITU-T G.8262
- T-BC/T-TSC Boundary Clock and TSC Slave Clock /G.8273.2
- T-GM Grand Master /G.8273.1 per G.8275.1 PTP Profile
- PRTC Primary Reference Time Clock Class B/G.8272
- T-TC Transparent Clock /G.8273.3
- 1588 Software Stack and Servo Software in x86
STS2 P410G8TS81 TimeSync Card
8 Ports 10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock, PCIe GEN4 TimeSync card
TimeSync:
- Supports Grand Master clock per G.8275.1 Class-A PRTC/T-GM
- Supports Boundary Clock (BC) OC (Master / Slave)
- PTP over IPv4 / IPV6 (IEEE-1588v2) / SyncE
- One step and two step clock modes operation for PTP Master
- 10Mhz and 1PPS programmable output
- Full HW and SW GM/TimeSync solution based on industry leading DPLL, Servo stack and PTP1588
- Incorporated accurate OCXO
- Incorporates Global Navigation Satellite System (GNSS) receiver
- Packet and physical-layer frequency, phase and Grand Master GM/Time Synchronization
- Enable 5G/Class C wireless application
LAN and Virtualization Features:
- SR-IOV (Single Root I/O Virtualization): up to 256 Virtual Functions
- Partially Programmable Pipeline and Advanced Traffic Steering
- Intel® Ethernet Flow Director – 8000 On-Die perfect match filters
- 1536 queues/Physical Function (PF), >64 RSS/PF and 256 VMDq/PF
STS2 P410G8TS81 TimeSync Card
8 Ports 10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock, PCIe GEN4 TimeSync card
Silicom Time Sync |
|
| Profile: IEEE-1588 ( 2008) ( Annex-J.3 Delay Request-Respond Default Profile | Ordinary Clock – Server Ordinary Clock- Client ( including slave only OC) Boundary Clock |
| Profile: IEEE-1588 ( 2008) ( Annex-J.4 Peer-to-Peer | Ordinary Clock – Server Ordinary Clock- Client ( including slave only OC) Boundary Clock |
| Profile: ITU-T G.8265.1 Telecom Profile for Frequency Synchronization | Telecom Grandmaster Telecom Slave |
| Profile: ITU-T G.8275.1 PTP Telecom Profile for Phase with Full timing Support: |
Telecom Grandmaster (T-GM) |
| Profile: ITU-T G.8275.2 PTP Telecom Profile for Phase with Partial timing Support: | Telecom Grandmaster (T-GM) Assisted / Partial Telecom Boundary Clock (T-BC) Assisted / Partial Telecom Time Slave Clock (T-TSC) |
| Device Types: | Ordinary Clock Boundary Clock |
| References Selection: | Default BMCA (Best Master Clock Algorithm) Alternate BMCA based on ITU G.781 – Synchronization layer functions for frequency synchronization based on the physical layer |
| Transport Mappings: | PTP/UDP/IPv4 Annex D PTP/UDP/IPv6 Annex E PTP/Ethernet Annex F |
| NIC TS (Time Stamp) granularity: | 1ns |
General Technical Specifications: 8 Ports P410G8TS81-XR |
|
| Interface Standard: | PCI-Express Base Specification Revision 4.0 (16 GTs) |
| Board Size: | Full Height, Half-length (FHHL) add-in card, single slot: 167.64mm X 111.15 mm (6.6”X 4.376”) |
| PCI Express Card Type: | Electrical x8G4, Mechanical x16 |
| On Board Connector Voltage: | PCIe +12V +/-8% |
| PCI Connector: | Gold Finger: x16 Lane |
| USB Connector: |
SKU Micro-AB connector replaced by 4×1 header |
| Controllers: | Intel E810-CAM2 (8x10G) |
| 1588/ SyncE PHY: | BCM82870 (8x10G) |
| DPLL: | 1588 / SyncE Microsemi ZL30793 |
| GNSS: | u-blox, ZED-F9T |
| OCXO: | OX-2281-EAE-5000-20M000 , 20MHz, 2 ppb, A1 |
| Network ports: | 1xQSFP+, 4xSFP+ |
| Management port: | RJ45 on daughter card |
| Timing Port PPS Out: | 1PPS, 10% DC TTL 0V-5V Imax 64mA |
| Timing Port 10MHz Out: | 10MHz, TTL 0V-5V, DC 50% Imax 64mA |
| Timing Port 1PPS In: | 1PPS 0V-5V/50Ohm 10%DC; |
| Timing Port 10MHz In: | 10MHz 0V-5V/50Ohm 40%-60% DC |
| Holder: | Metal bracket |
| Power Consumption-XR: | 17.28W, 1.44A at 12V: Full Typical No SFP+ 18.36W, 1.53A at 12V: Full Typical (8 port operate at 10Gb/s with DAC cable.) Max calculated: 28.35W |
| Power Consumption-SR: | 17.28W, 1.44A at 12V: Full Typical No SFP+ 22.44W, 1.87A at 12V: Full Typical (8 port operate at 10Gb/s.) Max calculated: 34.8W |
| Power Consumption-LR: | 17.28W, 1.44A at 12V: Full Typical No SFP+ 23.16W, 1.96A at 12V: Full Typical (8 port operate at 10Gb/s.) Max calculated: 34.8W |
| Operating Temperature / Air Flow requirements: Standard Temperature | 0°C – 45°C (32°F – 113°F) / 220 LFM |
| E-temp Operating Temperature / Air flow requirements (requires T-Temp Optical TR: | 0°C – 65°C (32°F – 113°F) / 700 LFM |
| Storage: | -40°C–65°C (-40°F–149°F) |
| Regulation: | CE, FCC Class A, ROHS requirements. |
| LEDs: | Turns on link (Green) |
| LEDs location: | Ports 0-3: On Metal Bracket, above 4 SFP+s Ports 4-7: On Metal Bracket, left side of QSFP+ |
QSFP+ 10Gigabit Ethernet Technical Specifications Adapters: |
|
| QSFP (Small Form Factor Pluggable) supports: | SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with QSFP+ to 10GBase-SR/ LR (MPO) |
| 10GBase-SR: IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nm LAN PHY) 10.3125GBd MMF Multi-Mode fiber |
| 10GBase-LR IEEE Standard / Network topology: |
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nm LAN PHY) 10G.3125GBd (SMF) Single-Mode fiber : 10000m at 9um |
STS2 P410G8TS81 TimeSync Card
8 Ports 10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock, PCIe GEN4 TimeSync card
P/N |
Description |
Notes |
| P410G8TS81-XR | 8 Port 10 Gigabit Ethernet GM/ TimeSync PCI Express Server Adapter | STS2, x16 Gen4, Electrical x8G4, x8 G4, FHHL single slot |
| P410G8TS81-SR |
8 Port 10 Gigabit (SR) Ethernet GM/ TimeSync PCI Express Server Adapter | STS2, x16 Gen4, Electrical x8G4, x8 G4, FHHL single slot |
| TS-MB-F5-200X5 | Assembly of 5x SMAs mounted on FH metal bracket | TS-MB-F5-200X5 kit |
Related Products
-

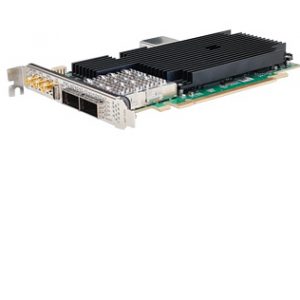

STS3 P425G8TS81 TimeSync Card
8 Ports 25 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock, PCIe GEN4 TimeSync card
-
STS4 TimeSync NIC P425G410G8TS81
12 Ports 25/10 Gigabit Ethernet Grand Master, Boundary Clock, Slave Clock, PCIe GEN4 TimeSync
-

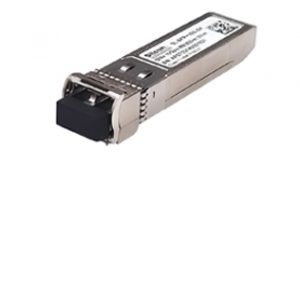

10G Ethernet transceivers SL-SFP+10G-SR
Small Form Factor Pluggable (SFP+) transceivers
-

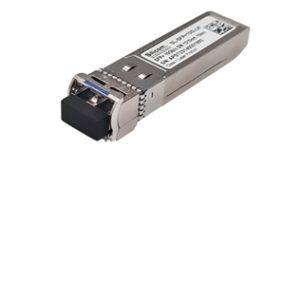

10G Ethernet transceivers SL-SFP+10G-LR
