PE316IS2LBLL Server Adapter

Dual Crypto / Compression LBG PCIe 3.0 Server Adapter

Silicom’s PE316IS2LBLL Server Adapter Dual LBG-x NS Crypto / Compression server adapters are 3rd generation of Silicom adapters which are based Intel 3rd generation chipset to integrate Intel® QuickAssist Technology.

Silicom’s Dual LBG-x NS Crypto / Compression server adapters are optimized to Intel® Architecture provide Data Centers and Cloud applications benefit greatly from the high performance security and compression capabilities, enabling more efficient network and storage architectures.
Simplest and highly mature architecture leading to highest reliability.

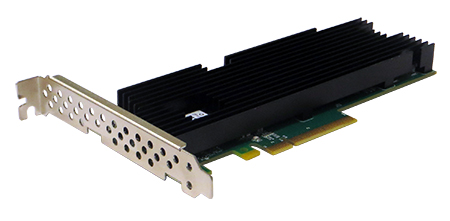

PE316IS2LBLL Server Adapter

Silicom’s Dual LBG-x NS Crypto/ Compression server adapters integrates 100Gbps accelerator.
Servers with Intel® QuickAssist technology create a new compute paradigm in cloud services. Virtualized machines with virtualized acceleration services allow for network function virtualization as standard practice.
Network elements share the same common standard hardware implementation. True software define network elements run on standard server

Silicom’s Dual LBG-x NS Crypto / Compression server adapters uses Intel solution and drivers: Seamless integration with the customer’s OS and application.

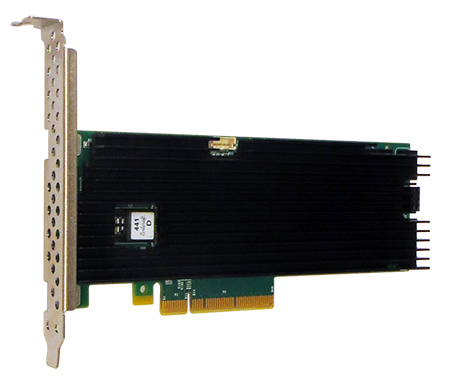

Encryption PE316IS2LBLL Server Adapter

PE316IS2LBLL Server Adapter

Dual Crypto / Compression LBG PCIe 3.0 Server Adapter

  • Intel® QuickAssist Technology for Crypto and Compression
    • Bulk: AES, 3DES, (A) RC4
    • Hash: MD5, SHA-1/2 SHA-3 HMAC
    • Wireless: KASUMI , ZUC, SNOW 3G
    • Public Key – DH, RSA, DSA, EDSA, ECDH
    • Compression/Decompression-Deflate
    • RDMA (iWARP) support per link
  • PCI Express X16 lanes
  • Support PCI Express Base Specification 3.0 (8 GTs)

System Acceleration Throughput per a single controller:



INTEL® C628 CHIPSET/ INTEL® C627 CHIPSET

INTEL® C626 CHIPSET

INTEL® C625 CHIPSET
SSL/IPSec 100Gbps 40Gbps 20Gbps
Compression Deflate 100Gbps 40Gbps 20Gbps
Decompression Deflate 100Gbps 100Gbps 100Gbps
RSA Decrypt 1k-bit 550K Ops/sec 550K Ops/sec 550K Ops/sec
RSA Decrypt 2k-bit 100 Ops/Sec 40 Ops/Sec 20 Ops/Sec
TLS Handshakes ECDH_RSA2K 440K Ops/sec
TLS Handshakes EDHE+ECDSA 51K Ops/sec
SSL/IPSec + Compression + PKE Total 120 Gbps +
100K Ops/sec


PE316IS2LBLL Server Adapter

Dual Crypto / Compression LBG PCIe 3.0 Server Adapter

General Technical Specifications:

Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GTs)
Board Size: Low profile short add-in card: 167.64 mm X 64.389mm (6.600”X 2.535”)
PCI Express Card Type: X16 Lane
PCI Express Voltage +12V +- 8% and external 3×2 connector
+3.3V AUX ± 9%
PCI Connector: Gold Finger: X16
Controllers: Intel® C628 Chipset
Intel® C627 Chipset
Intel® C626 Chipset
Intel® C625 Chipset
Holder: Metal Bracket: Full Height and Low Height
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 45°C (32°F – 113F)
Air flow requirement for this adapter is 200 LFM
Cooling Heatsink With Integrated Fan.
(Stretch-Goal of Fanless Operation, which will require modeling)
Storage: -40°C–65°C (-40°F–149°F)
Regulation: Card shall meet CE, FCC Class B, ROHS requirements.

Operating Systems Support:

Operating system support:  Linux

PE316IS2LBLL Server Adapter

Dual Crypto / Compression LBG PCIe 3.0 Server Adapter

P/N

Description

Notes

PE316IS2LBLL Dual Crypto / Compression LBG PCIe Server Adapter Based on Intel® C628 Chipset
Gen 3.0 x16
PE316IS2LBTL Dual Crypto / Compression LBG PCIe Server Adapter Based on Intel® C627 Chipset
Gen 3.0 x16
PE316IS2LBEL Dual Crypto / Compression LBG PCIe Server Adapter Based on Intel® C625 Chipset,
Gen 3.0 x16
PE316IS2LBML Dual Crypto / Compression LBG PCIe Server Adapter Based on Intel® C626 Chipset,
Gen 3.0 x16



Model P/N -LP
