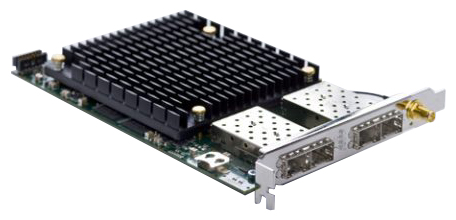

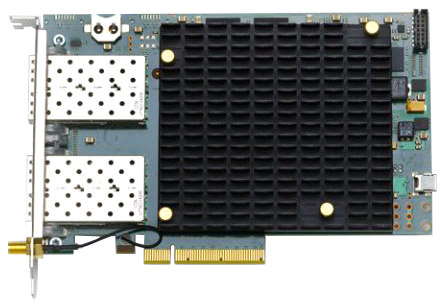

fbC4XGg3 Capture Card
Quad Port SFP+ 10 Gigabit PCIe Gen3 x8 lanes Capture Card
The Silicom fbC4XGg3 Capture card is a 4 x 1/10GE capture card that performs at full line rate with zero packet loss, on all four interfaces. Even while providing the full suite of features offered via fbCAPTURE API.
With its PCIe Gen3 support, it is without bottlenecks, and is ideal for interfacing to multiple 1/10 Gigabit Ethernet links. This can be as individual links or in a load-sharing or redundancy configuration, directly from network taps, via SPAN ports or similar devices.
It is a high performance OEM hardware platform with four SPF/SFP+ ports, allowing for optimal flexibility in connectivity. The card allows utilization of the transmission capabilities of these in conjunction with fbCAPTURE features.
The fbC4XGg3 capture card is part of the fbCAPTURE family which provides a powerful and flexible Software API, as well as standard libpcap integration. Through the integration of fbCAPTURE API, applications gain support for all fbCAPTURE cards, covering Ethernet speeds from 1GE to 100GE.
fbC4XGg3 Capture Card
Quad Port SFP+ 10 Gigabit PCIe Gen3 x8 lanes Capture Card
- 1/10 Gbit/s Ethernet, IEEE 802.3
- 4 x 1GE/10GE ports via 4 x SPF/SFP+ ports
- Capture at full line rate on all interfaces
- Precision timestamping
- 3.2 nano second resolution
- Micro second latency
- PCIe Gen3, 8 lanes
- fbCAPTURE API
- Hardware filtering and distribution
- Application acceleration and scalability
- 64 logical channels to DMA or egress via Tx
fbC4XGg3 Capture Card
Quad Port SFP+ 10 Gigabit PCIe Gen3 x8 lanes Capture Card
Host Interface: |
|
| Physical bus connector: | 8-lane PCIe |
| PCIe bus type: | 1-8 lane PCIe Gen1/Gen2/Gen3 |
| PCIe compliant 64 logical channels that can be connected to DMA or egressed to physical output ports |
|
| On Board Memory: | 8 GB (2x4GB 64 bit DDR3) |
Performance: |
|
| Capture rate (card internal): | Full line rate |
| Capture rate (bursts): | Full line rate |
| Capture rate (sustained): | Full line rate |
| Transmission rate (inline host DMA): | Full line rate |
| Transmission rate (inline bypass): | Full line rate |
| Transmission rate (daisy chain): | Full line rate |
General Technical Specifications |
|
| Latency: | Less than 3 μs to host memory Less than 3 μs from host memory to Tx Non-blocking sending, allowing user applications to operate independently |
| Time Stamping & Sync: | Resolution = 3.2 ns Accuracy down to 20 ns Optional external synchronization via PPS Customization for PTP IEEE 1588-2008 RJ45 Master/slave time sync between multiple cards |
Network Interface: |
|
| IEEE standard: | IEEE 802.3 10 Gbit/s Ethernet |
| Physical interface: | 4 x SFP+ ports |
| Supported SFP+ modules: |
|
| Data rate: | 4 x 10 Gbit/s |
| Ethernet PHY directly embedded in FPGA for full packet control | |
Configuration: |
|
| Configuration: | Dual boot images with automatic fallback to fail-safe image Full firmware upgrades via supplied tools or fbCAPTURE API |
Environment: |
|
| Physical dimensions: | Half length, standard height |
| PCIe: | 111 x 169 mm |
| Weight: | 268g |
| Operational power consumption: | Less than 39W |
| Operating temperature: | 0 – 55°C, 30 – 130°F |
| Operating humidity: | 20 – 80% |
| Hardware compliance: | RoHS, CE |
| Passive cooling: |
No on-board fan required |
| Additional Board Support: | fbCAPTURE API On-board temperature sensor 4 Multi-color status LEDs Link and Activity LEDs for each port |
fbC4XGg3 Capture Card
Quad Port SFP+ 10 Gigabit PCIe Gen3 x8 lanes Capture Card
P/N |
Description |
Notes |
| fbC4XGg3 | Quad port SFP+ capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
| fbC4XGg3-SR | Quad port (SR) capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
| fbC4XGg3-LRM | Quad port (LRM) capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
| fbC4XGg3-LR | Quad port (LR) capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
| fbC4XGg3-ER | Quad port (ER) capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
| fbC4XGg3-ZR | Quad port (ZR) capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
| fbC4XGg3-DA | Quad port (DA) capture card supporting 4x10GE, PCIe Gen3 x8 lanes | RoHS Compliant |
