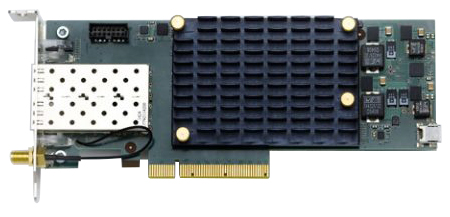

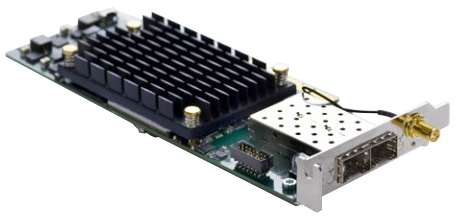

fbC2XGhh Capture Card
Dual SPF/SFP+ port card supporting 2 x 1/10GE Ethernet, half-height, PCIe Gen3 x8 lanes
The Silicom fbC2XGhh Capture card is a 2 x 1/10GE capture solution that performs at full line rate with zero packet loss, on both interfaces.
The card is based on the successful four port, full-height fbC4XGg3 card. Similar to the full-height version, the 2 x 1/10GE card uses PCIe Gen3, ensuring that no bottlenecks will affect the packet capture to host memory capability.
It is a high performance OEM hardware platform with dual SPF/SFP+ ports, and with a form factor of half-height and half-length, it provides a high level of flexibility for integrating into almost any host platform.
The fbC2XGhh card is part of the fbCAPTURE family which provides a powerful and flexible Software API, as well as standard libpcap integration. Through the integration of fbCAPTURE API, applications gain support for all fbCAPTURE cards, covering Ethernet speeds from 1GE to 100GE.
fbC2XGhh Capture Card
Dual SPF/SFP+ port card supporting 2 x 1/10GE Ethernet, half-height, PCIe Gen3 x8 lanes
- 1/10 Gbit/s Ethernet, IEEE 802.3
- 2 x 1/10GE ports via 2 x SPF/SFP+ ports
- Capture at full line rate on all interfaces
- Precision timestamping
- 3.2 nano second resolution
- Micro second latency
- PCIe Gen3, 8 lanes
- fbCAPTURE API
- Hardware filtering and distribution
- Application acceleration and scalability
- 64 logical channels to DMA or egress via Tx
fbC2XGhh Capture Card
Dual SPF/SFP+ port card supporting 2 x 1/10GE Ethernet, half-height, PCIe Gen3 x8 lanes
Network Interface: |
|
| IEEE standard: | IEEE 802.3 1/10 Gbit/s Ethernet |
| Physical interface: | 2 x SPF/SFP+ ports |
| Supported SFP+ modules: |
|
| Data rate: | 2 x 1/10 Gbit/s |
| Ethernet PHY: | directly embedded in FPGA for full packet control |
Host Interface: |
|
| Physical bus connector: | 8-lane PCIe |
| PCIe bus type: | 1-8 lane PCIe Gen1/Gen2/Gen3 |
| On Board Memory: | 8GB (1x8GB 64 bit DDR3) |
| PCIe compliant | |
| 64 logical channels that can be connected to DMA or egressed to physical output ports | |
| On-Board Memory: 4 GB (1 x 4 GB 64-bit DDR3) |
|
Performance: |
|
| Capture rate (card internal): | Full line rate |
| Capture rate (bursts): | Full line rate |
| Capture rate (sustained): | Full line rate |
| Transmission rate (inline host DMA): | Full line rate |
| Transmission rate (inline bypass): | Full line rate |
| Transmission rate (daisy chain): | Full line rate |
General Technical Specifications |
|
| Latency: | Less than 3 μs to host memory Less than 3 μs from host memory to Tx Non-blocking sending, allowing user applications to operate independently |
| Time Stamping & Sync: | Resolution = 3.2 ns Accuracy down to 20 ns Optional external synchronization via PPS Master/slave time sync between multiple cards |
| Configuration: | Dual boot images with automatic fallback to fail-safe image Full firmware upgrades via supplied tools or fbCAPTURE API |
Environment: |
|
| Physical dimensions: | Half length, half height |
| PCIe: | 111 x 169 mm |
| Weight: | 238g |
| Operational power consumption: | Less than 39W |
| Operating temperature: | 0 – 55°C, 30 – 130°F |
| Operating humidity: | 20 – 80% |
| Hardware compliance: | RoHS, CE |
| Passive cooling: | No on-board fan required |
| Additional Board Support: | fbCAPTURE API On-board temperature sensor Multi-color status LEDs Link and Activity LEDs for each port |
fbC2XGhh Capture Card
Dual SPF/SFP+ port card supporting 2 x 1/10GE Ethernet, half-height, PCIe Gen3 x8 lanes
P/N |
Description |
| fbC2XGhh-H | Half height bracket, full height bracket spare |
| fbC2XGhh-F | Full height bracket, half height bracket spare |
