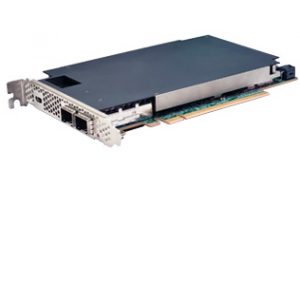

FPGA SmartNIC N6010/6011 Intel based

Flexible Multi-port Ethernet Intel® AgileX Based SmartNIC

Silicom FPGA SmartNIC N6010/N6011: High-Performance Hardware Acceleration for 4G and 5G

The Silicom FPGA SmartNIC N6010/N6011 is a high-performance OEM hardware platform intended for hardware acceleration for mobile 4G and 5G Baseband Units or Distributed Units with two QSFP28 modules. The cards are based on the Intel N6000 and N6001. Example: supports up to 4 100MHz carriers Radio Units via 4x 25G eCPRI/CPRI with SFP28 modules, as well as interfacing to a Grand master via QSFP28 at 10/25G.

The card is based on an Intel® AgileX AGF014, which embeds a Hard Processor System (HPS) with four 64-bit Application Processing Units (ARM Cortex-A53) along with a powerful Programmable Logic part.

Integrating Advanced Software Support for High-Performance Networking with Silicom FPGA SmartNIC N6011

The design is set to work in ORAN LLS-C1 and C2 with the intention to be utilized with a 4G/5G IP stack interfacing at 3GPP functional split options 6 for CPRI or 7.2x for eCPRI. The Silicom FPGA SmartNIC N6011 supports Intel FlexRAN, Open FPGA Stack (IOFS), Contrail, OVS, SRv6, and vFW acceleration. Additionally, Silicom validates each FPGA SmartNIC N6011 to support large scale deployments requiring FPGA acceleration. This OEM accelerator card is targeted for Intel® Xeon-SP and Intel® Xeon-D systems.

Accelerate Your Applications with Silicom FPGA SmartNIC N6011 and Intel OFS

The Silicom FPGA SmartNIC N6011 is supported by the Intel® Open FPGA Stack (OFS). The Intel OFS FPGA Interface Manager (FIM) provides a common developer interface to both application and acceleration function developers and includes drivers, Application Programming Interfaces (APIs) and an FPGA factory image.

The Silicom FPGA SmartNic platform is targeted for market-specific acceleration in applications listed below:

AgileX Based SmartNIC FPGA Intel Flexran

N6010/6011 Use Cases:

4G/5G vRAN Acceleration
Network Function Virtualization (NFV)
Multi-Access Edge Computing (MEC)
Video Transcoding
Cyber Security
High-Performance Computing
Finance

Download (PDF, 1.3MB)

Optimizing vRAN with Intel FPGA Platform

FPGA SmartNIC N6010/6011 Intel based

Flexible Multi-port Ethernet Intel® AgileX Based SmartNIC

Intel® Agilex® FPGA
Intel® e810-CAM2 NIC
2 x 100 GbE/4 x 25GbE/8 x 10GbE
PCIe v4 x 8 (x16 physical)

Key Use Cases

4G/5G vRAN Acceleration
Network Function Virtualization (NFV)
Multi-Access Edge Computing (MEC)
Video Transcoding
Cyber Security
High-Performance Computing
Finance

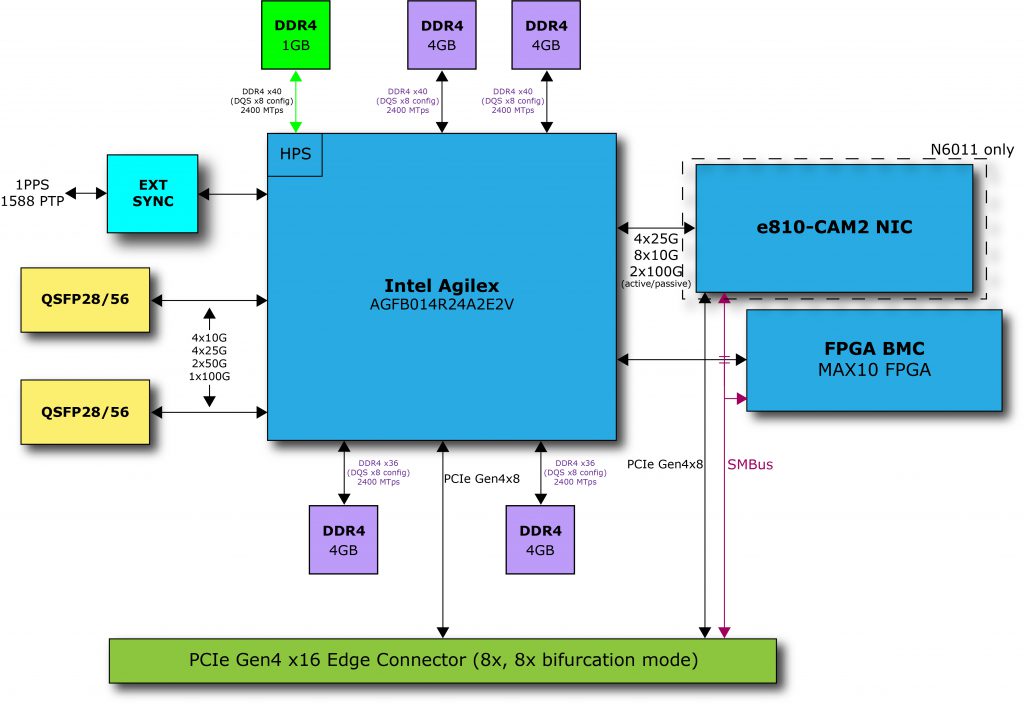

passphrase ssl LANDING PAGE

FPGA SmartNIC N6010/6011 Intel based

Flexible Multi-port Ethernet Intel® AgileX Based SmartNIC

Network Interface:
IEEE standard	IEEE 802.3 10GE, 25GE, 100GE
Interfaces	Physical interface: 2 x QSFP28/56 slots Supports QSFP28/56 modules with Multimode SR (850nm), single mode LR (1310nm), multimode LRM (1310 nm) Data rate: Each module 100G, 4x25G, 4x10G Support for SyncE
Interfaces:
Network	2x100GbE, using QSFP28/56
Host	PCIe 4.0 x 16 (N6011 is bifurcated x8, x8) NCSI RBT Support for SMBUS
General Technical Specifications:
NIC details	Intel® E810-CAM2 Interfaces to PCIe 4.0 x8 Supports 2x100GE (active/protect), 4x25GE and 8x10GE
FPGA Details	Intel® Agilex™ AGF014 1.4M Logic Element Fabric Provides Ethernet or Ethernet and Common Public Radio Interface (CPRI) interface over QSFP28/56 ports P-Tile – Provides PCIe Gen4 x8 interface to the host Hard Processor System (HPS) DDR4 Memory controllers interfacing to the FPGA fabric Platform Management Communications Interface (PMCI) module
Configuration	Configuration flash can be made to support multiple boot images for automatic fallback to factory default image Upload of FPGA configuration to flash via PCIe Direct FPGA configuration via the onboard JTAG dongle
On-board Memory	8 GB DDR4 memory, with ECC (2 channels) 8 GB DDR4 memory, without ECC (2 channels) 1 GB DDR4 memory for HPS 280 MB Flash memory for non-volatile storage
On-board Clock	PCIe clock: 100 MHz 8 output reprogrammable clock generator Supports network synchronization
Additional Board Support	On-board power and temperature sensors (via SMBus/I2C) FPGA controlled Link and Activity LED for each port. 2 for each QSFP28 Board status LEDs FPGA Reset via host I2C
Environment	Full height, ½ length 111.28 x 167.65 mm with bracket Storage temperature: -40 – 65°C -40 – 149°F Operating temperature (card inlet): -5 – 50°C, 23 – 122°F Operating humidity: 5 – 85% Hardware compliance: RoHS, FCC, CE
Power	Max 125W, above 75W PCIe AUX power must be used Passive cooling Power and temperature monitoring via SMBus/I2C PCIe AUX power connector available
Manageability Features	Full card BMC solution host communication via SMBus (PLDM & NC-SI) FPGA image remote update capability Full security implementation using MAX10 FPGA as RoT
Networking	A configurable packet processor IP core Extensive configuration API Packet forwarding and bridging across network, main host and SoC Parsing, match and action operations Bandwidth rate limit
Hardware Acceleration	SR-IOV, 256 virtual functions 32 physical functions
Software Support	Open FPGA Stack (IOFS) Contrail OVS SRv6 vFW acceleration 4G and 5G vRAN enablement package DPDK BBDev FlexRAN
