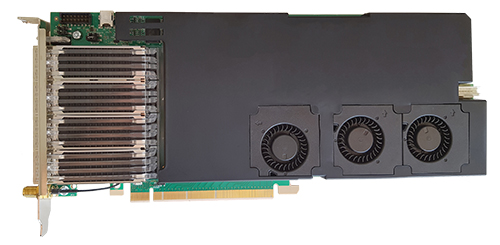

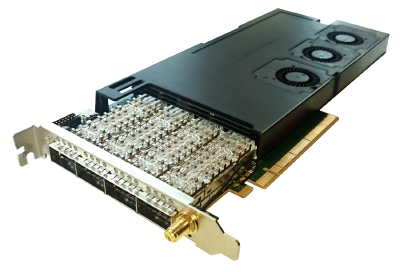

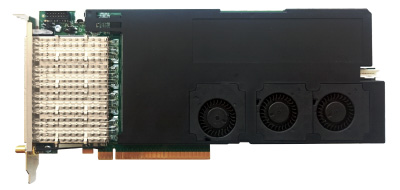

[email protected] series FPGA Card

Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale

The [email protected]/VU+ series is a high performance OEM hardware platform intended for 10/40/25/50/100 Gigabit Ethernet via its quad QSFP28 slots.

The standard configuration is based on the Xilinx® Virtex UltraScale+ VU9P FPGA, to provide ample capacity for the quad QSFP28 interface.
The card is also offered with a variety of different FPGAs to provide flexibility for the intended application – this includes both Virtex Ultrascale and the Virtex Ultrascale+ series from Xilinx.

The card is mounted with 2 x 64-bit DDR4 2400MT/s 4GB for a total of 8 GB. In addition to this it features 2 SODIMM sockets for use with DDR4 or QDRII+ modules for low latency applications.

[email protected] series FPGA Card

Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale

Xilinx® Virtex UltraScale+ VU9P FPGA (standard configuration)
4 x QSFP28 ports
2 x 64-bit [email protected]/s
2 x Optional SODIMM
Configuration flash RAM for boot images
PCIe form-factor: 3/4 length, standard height PCIe
On-board power and temperature sensors
FPGA controlled link and status LEDs
Passive cooling (optional)

[email protected] series FPGA Card

Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale

Network Interface
IEEE standard:	IEEE 802.3 10GE, 40GE, 25GE, 100GE
Interfaces:	Physical interface: 4 x QSFP28 slots 2 port variant available Supports QSFP+/QSFP28 modules: including fan-out modules for 4x10G/4x25GE per slot, Multimode SR4 (850nm), singlemode LR4 (1310nm), singlemode PSM4 (1310nm), multimode LRM4 (1310 nm), or Direct Attached Copper (Twinax) and others Data rate: 16×10, 4×40, 16×25, 4×100 Gbps
Host Interface
PCI bus:	16 lanes PCIe Gen1/Gen2/Gen3 PCIe compliant
General Technical Specifications
Configuration:	16-bit fast parallel programming interface from supporting preprogrammed controller Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails Upload of FPGA configuration to flash via PCIe Support for encrypted FGPA bit file (optional)
On-board Memory:	2 x 64-bit [email protected]/s 4 GB 2 x Optional SODIMM 64-bit DDR4 @2400MT/s 4 GB 36-bit QDRII+ @1266MT/s 288 Mb 8 MB user configurable space in flash RAM for permanent storage 256 MB Configuration flash RAM for boot images
On-board Clock:	PCIe clock: 100 MHz 200 MHz clock 50 MHz clock 161.13 MHz clock
FPGA Details:	FPGA Xilinx® Virtex UltraScale+
Environment:	Physical dimensions: 3/4 length, standard height PCIe Power consumption: <10W with uninitialized FPGA Operating temperature: 0 – 55°C, 30 – 130°F Operating humidity: 20 – 80% Hardware compliance: RoHS, CE Active cooling (heat sink with fan) Passive cooling (optional)
Additional Board Support:	On-board power and temperature sensors Board status LEDs User configurable dual color LED FPGA controlled Link and Activity LED for each port PPS clock synchronization connector PCIe AUX power connector and cable
Additional Intellectual Property Modules:	Flash configuration I/F 2×8 lane PCIe DDR4 Memory controller I2C controller SmartNIC framework (optional) Ultra low latency 10GE MAC (optional) TCP-offload engine (optional)
Ordering Example:	[email protected] 4-port card with the following configuration: VU09P Virtex UltraScale+ FPGA Speedgrade -3 (fastest available) 288 Mb x36 SQIVe RAM mounted in SoDimm slot A 288 Mb x36 SQIVe RAM mounted in SoDimm slot B SMA connector for PPS signal on front panel Heat sink with integrated UL/CE approved fan

[email protected] series FPGA Card

Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale

P/N	Description
[email protected]	Virtex UltraScale VU80-2, No SODIMMs
[email protected]	Virtex UltraScale VU80-2, 2x4GB DDR4 SODIMMs
[email protected]	Virtex UltraScale VU125-2, No SODIMMs
[email protected]	Virtex UltraScale VU125-2, 2x4GB DDR4 SODIMMs
[email protected]	Virtex UltraScale VU190-2, No SODIMMs
[email protected]	Virtex UltraScale VU190-2, 2x4GB DDR4 SODIMMs
[email protected]	Virtex UltraScale+ VU7P-2, No SODIMMs
[email protected]	Virtex UltraScale+ VU7P-2, 2x4GB DDR4 SODIMMs
[email protected]	Virtex UltraScale+ VU9P-2, No SODIMMs
[email protected]	Virtex UltraScale+ VU9P-2, 2x4GB DDR4 SODIMMs
[email protected]	Virtex UltraScale+ VU9P-2, 2xQDRII RAM (x36, 288Mb)
[email protected]	Virtex UltraScale+ VU9P-3, No SODIMMs
[email protected]	Virtex UltraScale+ VU9P-3, 2x4GB DDR4 SODIMMs
[email protected]	Virtex UltraScale+ VU9P-3, 2xQDRII RAM (x36, 288Mb)
