fb4XG@V6240 FPGA Card

Quad Port SFP+ 10 Gigabit Ethernet FPGA Card

The fb4XG@V6240 is a high performance OEM hardware platform for 10G Ethernet with quad port SFP+ network interface.

The standard configuration is based on Xilinx Virtex6 LX240T FPGA. The card is also offered with a variety of different FPGAs to provide flexibility for the intended application.

As an optional feature, the card can be fitted with two SATA connectors which can provide connectivity to a wide range of standard storage devices directly to the FPGA card.

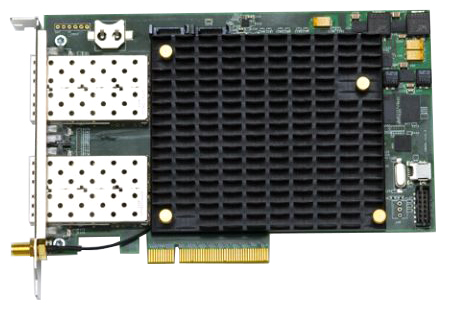

FPGA Ethernet Card fb4XG@V6240
FPGA Ethernet Card fb4XG@V6240 NIC

fb4XG@V6240 FPGA Card

Quad Port SFP+ 10 Gigabit Ethernet FPGA Card

Host Interface:

  • Physical bus connector: 8-lane PCIe
  • PCIe bus type: 1-8 lane PCIe Gen1/Gen2

Network Interface:

  • IEEE standard: IEEE 802.3 10 Gbit/s Ethernet
  • Physical interface: 4 SFP+ ports
  • Supported SFP+ modules: Multimode SR (850 nm), singlemode LR (1310 nm), multimode LRM (1310 nm), singlemode ER (1550 nm) or Direct Attached Copper (Twinax)
  • Data rate: 4 x 10 Gbit/s
  • RXAUI interface between FPGA and quad Ethernet PHY


  • 16 bit fast parallel programming interface from supporting preprogrammed controller
  • Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
  • Support for encrypted FPGA bit file (optional)
  • Upload of FPGA configuration to flash via PCIe

fb4XG@V6240 FPGA Card

Quad Port SFP+ 10 Gigabit Ethernet FPGA Card

General Technical Specifications

On Board Memory:2 x 64 bit DDR3@1066MT/s 4GB. (total 8GB memory)
1 MB user configurable space in flash for permanent storage
On Board Clock:PCIe clock: 100MHz
25MHz oscillator
156.25 MHz oscillator
150 MHz oscillator for SATA connector (optional)
FPGA:fb4XG@V6240: Xilinx Virtex6 LX240T-2
Xilinx Virtex6 LX130T (optional)
Xilinx Virtex6 LX195T (optional)
Xilinx Virtex6 LX365T (optional)
Xilinx Virtex6 SX315T (optional)
Xilinx Virtex6 SX475T (optional)


Physical dimensions:Half length, standard height PCIe
Power consumption:Less than 10 Watts with uninitialized FPGA
Operating temperature:0 – 55 °C, 32 – 131 °F
Operating humidity:20 – 80%
Hardware compliance:RoHS, CE
Passive cooling:no on-board fan required
Active cooling:optional
Additional Board Support:On board temperature sensor
Board status LED
3 user configurable dual color LED
FPGA controlled Link and Activity LED for each port
PPS clock synchronization connector
2 x SATA connector (optional)
Additional Intellectual Property Support:Flash configuration I/F
DDR3 memory controller
8 lane PCIe
MDIO controller (optional)
Ethernet MAC (optional)
I2C controller (optional)
SPI master I/F (optional)
TCP-offload engine (optional)

fb4XG@V6240 FPGA Card

Quad Port SFP+ 10 Gigabit Ethernet FPGA Card




fb4XG@V6240Quad port SFP+ card supporting 4x10GE, optional SATA connectorsRoHS Compliant
