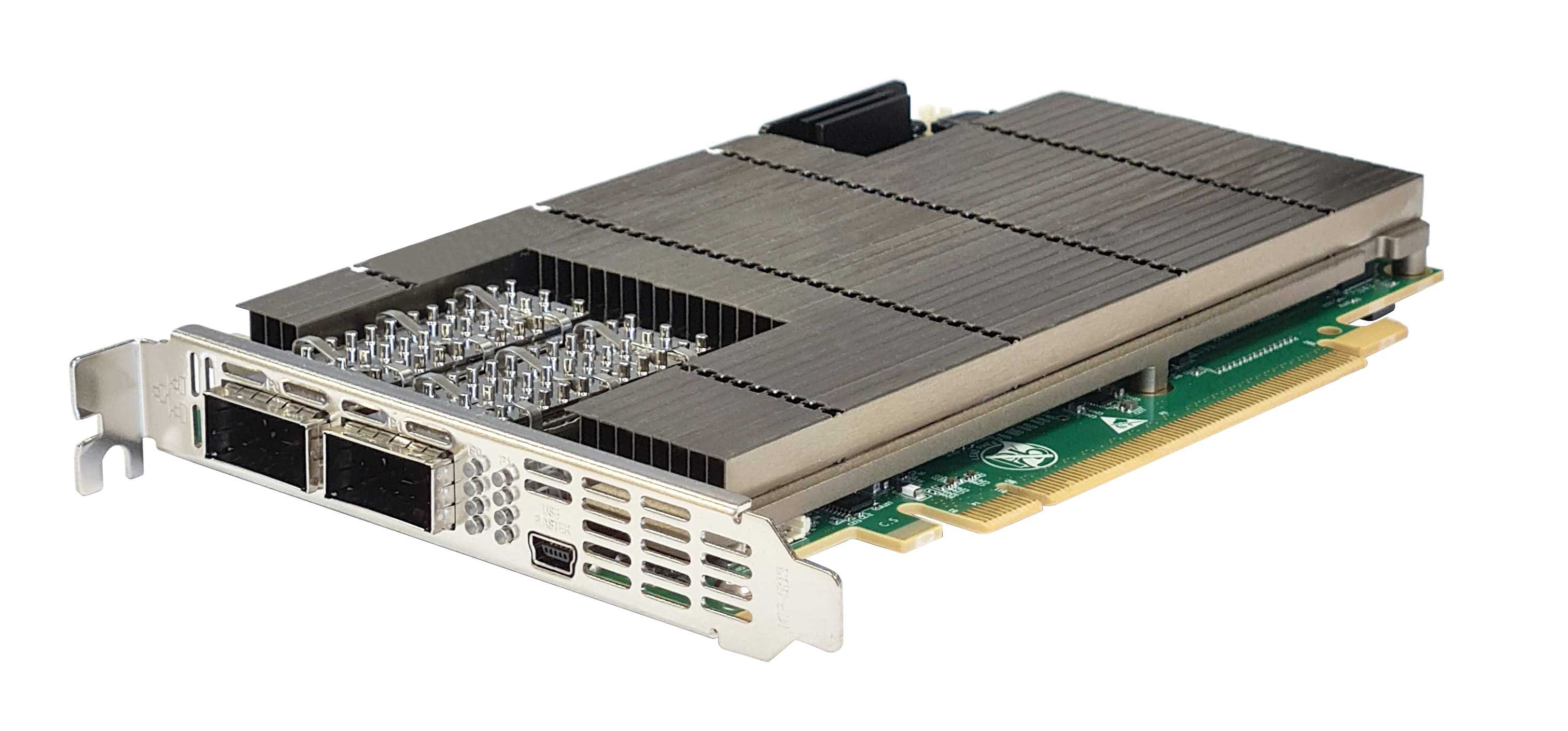

FB1C1XLG@A10T1150E Programmable PCIe NIC

Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based

The card offered with a variety of different FPGAs to provide flexibility for the intended application. The card is mounted with DDR4 devices running up to 2400MT/s*, total memory 8GB, one device DDR4 1Gbx8 running up to 2400MT/s.



FB1C1XLG@A10T1150ENV FPGA Card

For options on alternate hardware configuration see ordering information.

Cardiff2/E-SKU*

– Does not support QDR-IV

– Supports DDR4 with ECC.

– Support 10G SERDES based only on the QSFP interfaces

FB1C1XLG@A10T1150ENV FPGA NIC

FB1C1XLG@A10T1150E Programmable PCIe NIC

Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based

Host Interface:

  • Physical bus connector: 16-lane PCIe
  • PCIe bus type: 2 x 1-8 lane PCIe Gen1/Gen2/Gen3 with bifurcation

Fortville Ethernet Network Controller XL710BM2:

  • Network Virtualization offloads for VXLAN and NVGRE
  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
  • Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
  • Physical Functions – Up to 8 per port, up to 16 per device
  • Support for 128 Virtual Device Queues (VMDq) per port
  • Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
  • Virtualization – Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
  • Receive Side Scaling (RSS)
  • Large Send Offload (LSO)
  • TCP/UDP/IP/SCTP Checksum Offload
  • IPV4, IPV6

Network Interface:

  • IEEE standard: IEEE 802.3 10/40 GE
  • Physical interface: QSFP+
  • Supported QSFP+ modules: including fan-out modules for 4x10G , Multimode SR4 (850nm), Single Mode LR4 (1310nm), Multimode LRM4 (1310nm), or Direct Attached Copper (Twinax)
  • Data rate: 8×10 Gbps or 2×40 Gbps
  • Support Sync-E standard (optional feature depending on FPGA image)

Configuration:

  • Upload of FPGA configuration to flash via PCIe – with supported image and tool.
  • USB Blaster II on Board
  • Serial Configuration EPCQ-L device memory size of 1Gb , using Active Serial x4 configuration mode

On Board Memory:

  • DDR4
    • 8GByte+ECC on ping pong interface ( x12 devices )
    • 1GByte ,(x1 device)

Board Management:

  • Voltage level monitoring
  • Thermal shut-down protection
  • Over current protection on 12V input

FB1C1XLG@A10T1150E Programmable PCIe NIC

Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based

General Technical Specifications Adapters:

Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GTs)
Board Size: Standard height short add-in card 167.65mm X 111.15mm (6.6”X 4.376”)
PCI Express Card Type:

x8x8 Lanes Bifurcation 8-Lanes to Arria 10 GT/GX 8-Lanes to XL710

Note: Can be plug only in 16xPCIe slot

PCI Express Voltage: +12V ± 8% – Limited to 6A
On Board Connector Voltage

+12V ± 8% On board auxiliary power connector to support power over 75W –

*The +12V must be installed when power is over 75W

PCIe Connector: x16 Lanes
FPGA:Intel FPGA Arria 10 900/1150 GT or GX · See ordering information about types Arria 10 GX/GT
Ethernet Controller:Intel Fortville Ethernet Controller XL710-BM2
Memory:Onboard DDR4*, 2400MT, total memory 9GB + 2GB ECC
Holder:Metal Bracket
Weight: 350g (12.34oz) With Passive Heat-Sink and without optical modules
Power Consumption:Maximum 130W Maximum 124W (Without XL710 Fortville device) · The total power consumption of the card is depending on user application
Cooling:

– Passive heat sink, or active heat sink solution

– Built-in thermal protection

Sensors/Monitors:

– Thermal protection

– Voltage monitors

– Current protectio

Operating Temperature:0°C – 45°C (32°F – 113°F)
Air Flow Requirements:Passive heat sink, short PCIe, single slot: 600 LFM. @ 40C, Max PCIe card power 100W, Max FPGA Core Current 60A, FPGA Core Temp 90C
Storage: -40°C–65°C (-40°F–149°F)
Regulation: CE, FCC Class B, ROHS requirements.
MTBF*:

157 years, passive heat sink,

* According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 50°C

LEDs/ Connectors Specifications:

LEDs:Each QSFP Ports has 4 LEDs
LEDs location:LEDs are located on the PCB, indication visible through light pipe.
Connector:

(2) QSFP+ Cages

(1) Auxiliary 12V power supply connector on board

(1) Mini-USB Type B connector located on front of panel for on board USB Blaster II interface

(1) On board right angle JTAG connector 8 pins (custom) for FPGA

FB1C1XLG@A10T1150E Programmable PCIe NIC

Programmable PCI Express Server Adapter Intel® FPGA Arria 10 GX/GT based

P/N

Description

Notes:

FB1C1XLG@A10T1150EProgrammable PCI Express Server Adapter Based on Intel FPGA Arria 10 1150GT, forum factor short size, full height with passive heat sink

PCIe 2×8 Gen 3, mechanical x16 Based on Intel FPGA Arria10 GT1150/ 10AT115S1F45E1SG Passive Heat-Sink. Consists on board: XL710, 13xDDR4, 2xQSFP cages

Generic



2V2
