PEG2BPEMI5

Dual Port Copper Gigabit Ethernet Management PCI Express Bypass Server Adapter Intel® Based

This product has been discontinuedEOL Notification

Silicom’s Dual Port Copper Gigabit Ethernet Management Bypass server adapter (PEG2BPEMI5) is a PCI-Express X4 network interface. It is targeted at inline network system that maintains network connectivity when system fails.

PEG2BPEMI5 supports Normal and Bypass modes. In Normal mode, the ports are independent interfaces. In Bypass mode, all packets received from one port are transmitted to adjacent port.

PEG2BPEMI5 includes two Ethernet controllers: one Dual Port Ethernet controller used for external data Ethernet ports and one single Ethernet Controller is used for bypass management It also includes an on board WDT (Watch Dog Timer) controller.

All bypass management commands and WDT command are transmitted to the onboard watch dog controller via Ethernet management port. This configuration allows controlling the bypass function in a restricted environment. In most Virtual machines the virtual OS does not allow any access to the physical layer aside from network traffic, controlling the WDT by packets enables full control over the card via network traffic.

In Bypass mode, the connections of the Ethernet ports are disconnected from the system and switched over to the other port to create a crossed connection loop-back between the Ethernet ports. Hence, in bypass mode all packets received from one port are transmitted to other port and vice versa. This feature enables to bypass a failed system and provides maximum up time for the network.

Silicom’s Dual Port Copper Gigabit Ethernet Management Bypass server adapter is based on Intel 82575 Dual Ethernet ports Controller for data path and Intel 82573 Single Ethernet port Controller for bypass management.

PEG2BPEMI5

Dual Port Copper Gigabit Ethernet Management PCI Express Bypass Server Adapter Intel® Based

Key Feauters:

  • Bypass management done via Ethernet management port
  • Bypass Ethernet ports on Power Fail, System Hangs, management port fail, Software Application Hangs or user request
  • Software programmable Bypass or Normal Mode
  • On Board Watch Dog Timer (WDT) Controller
  • Software programmable time out interval
  • Software Programmable WDT Enable / Disable counter
  • Software programmable Bypass Capability Enable / Disable. Can be also in Normal mode at power off
  • Built-in Bypass circuitry, which operates in host system fails, Power OFF and programmable software
  • Programmable state (Bypass mode or Normal mode) at awitch and host Power up, switch and host power off
  • Independent Bypass / Normal operation in every two ports
  • Emulates standard NIC

Performance Features:

  • Four Transmit and Receive queues per port
  • Receive Side Scaling minimize CPU utilization across multiple processor systems
  • Support for 16 virtual machine Device Queues (VMDq) per port
  • Support Direct Cache Access (DCA)
  • Support Intel I/O AT 2.0
  • Advanced memory architecture reduces latency
  • Minimized device I/O interrupts using MSI and MSI-X
  • Offload of TCP / IP / UDP checksum calculation and TCP segmentation

Copper Gigabit Ethernet 1000Base-T :

  • Independently copper Gigabit Ethernet channels support six, four, two and one Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T)
  • Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
  • 802.x flow control
  • Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex
  • RJ-45 female connectors

PEG2BPEMI5

Dual Port Copper Gigabit Ethernet Management PCI Express Bypass Server Adapter Intel® Based

Bypass Specification:

WDT Interval (Software Programmable):2530 Sec: Maximum
1 Sec : Minimum
WDT Interval = 1 , 10 sec

Copper Gigabit Ethernet Technical Specifications - (1000Base-T) Adapters:

IEEE Standard / Network topology:Gigabit Ethernet, 1000Base-T
Fast Ethernet, 100Base-TX
Ethernet, 10Base-T
Full duplex / Simplex:Support both Simplex & Full duplex operation in all operating speeds
Auto negotiation:Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s
Data Transfer Rate:1000 Mbit/s, 100 Mbit/s and 10 Mbits/sec in simplex mode per port.
2000Mbit/s 200 and 20 Mbit/s in full duplex mode per port
Cables and Operating distance:10Base-T Category 3, 4, or 5 maximum 50m *
100Base-Tx Category 5 maximum 50m *
1000Base-T Category 5E maximum 50m *
*Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard

Operating Systems Support

Operating system support:Windows
Linux
FreeBSD
VMware

General Technical Specifications

Interface Standard:PCI-Express Base Specification Revision 1.0
Board Size:PCI Short add in card: 167.64mm x 68.91mm 6.6”X 2.713”
PCI Express Card Type:X4
PCI Express Voltage:+3.3V ± 9%,
+12V ± 8%
PCI Connector:Gold Finger: X4
Controller: Intel 82575EB, Intel 82573L
Holder:Metal Bracket: Full Height and Low-Profile, detailed description Appendix B
Operating Temperature:0°C – 50°C (32°F - 122°F)
Storage:-20°C–65°C (-4°F–149°F)
EMC Certifications:FCC Part 15, Subpart B Class B
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998 Amendments A1: 2000; A2: 2003
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000, Class A
Harmonic Current Emissions
CE EN 61000 3-3 1995, Amendment A1: 2001
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per

LEDs

LEDs:(3) LEDs per port
Link/Activity: Turns on any link speed, blinks on activity (green).
100: Turns on 100 Mbit/s link (green).
1000: Turn on 1000 Mbit/s link (green)
Bypass: LED 1000 and LED 100 of port 0 are turn on
LEDs location:LEDs are located on the PCB, visible via holes in the metal bracket holder
Connectors:(2) Shielded RJ-45



Functional Description

Silicom’s Dual Port Copper Bypass adapter supports Normal and Bypass. In Normal mode, the ports are independent interfaces (see Figure 1: Normal mode).

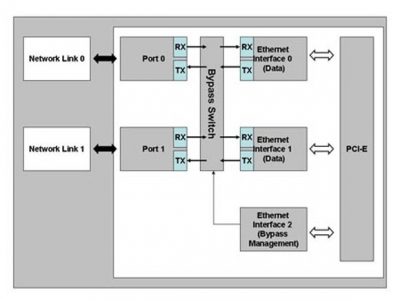

Normal Mode Functional Block Diagram

pe2g2bpemi6_1

In Bypass mode, the connections of the Ethernet network ports are disconnected from the interfaces and switched over to the other port to create a crossed connection loop-back between the Ethernet ports. The connections of the interfaces are left unconnected. (See Figure 2)

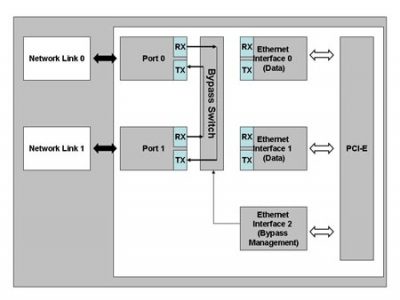

Figure 2: Bypass Mode Functional Block Diagram

pe2g2bpemi6_2

Silicom’s Dual Port Copper Bypass adapter supports software programmable to select Normal or Bypass modes.

Silicom’s Dual Port Copper Bypass adapter supports Disable Bypass; hence, if those adapters receive Disable Bypass capability commands, the adapter does not Bypass its Ethernet ports, The Disable Bypass Capabilities are reserved also after power off. This feature enables to emulate a standard NIC.

Silicom’s Dual Port Copper Gigabit Ethernet supports Disable supports setting the default mode at power up and power off. Those setting are reserved also after power off.

PEG2BPEMI5

Dual Port Copper Gigabit Ethernet Management PCI Express Bypass Server Adapter Intel® Based

P/N

Description

Notes

PEG2BPEMI5-SD-RoHSDual Port Copper Gigabit Ethernet Management PCI Express Bypass Server AdapterRoHS Compliant,
Based on 82575 and 82573,
Low-Profile



Note: Model P/N -SD/-LP/-RoHS
-SD: Side Driver
-RoHS: RoHS Compliant / Lead free adapter.
-LP: Assembled low-Profile Metal Bracket
