PE3IS4CO3

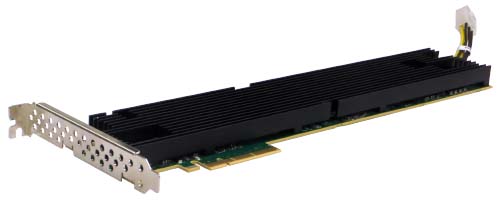

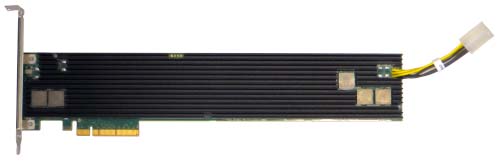

Silicom’s Quad HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
This product has been discontinued – EOL Notification
Silicom’s HW Accelerator PCI Express Server adapters are based on-chip HW accelerator Intel® communincation controller.
Silicom’s PE3IS4CO3 PCI Express Server adapters support Intel QuickAssit Technology for Hardware Ctypto and Compression accelerator engines. The Silicom’s PE3IS4CO3 Encryption Acceleration Card is optimized to Intel Architecture (IA) support.
The Silicom’s PE3IS4CO3 PCI Express Server adapter is based on Intel production process that provides the best industry performance, power and cost.
PE3IS4CO3
Silicom’s Quad HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
Performance Features:
- Intel® QuickAssist Accelerator
- Symmetric Cryptographic Functions
- Cipher Operations
- Hash/Authenticate Operation
- Cipher-Hash Combined Operation
- Key Derivation Operation
- Random Number Generation
- Public Key Functions
- RSA Operation
- Diffie-Helman Operation
- Digital Signature Standard Operation
- Key Derivation Operation
- Elliptic Curve Cryptography: ECDSA* and ECDH*
- Random Number Generation and Prime Number Testing
- Compression/Decompression
- Deflate (Lempel-Ziv 77-Stac)
- Support for 32 SR-IOV Virtual functions
Common Key features:
- PCI Express X8 lanes
- Support PCI Express Base Specification 3.0 (8 GTs)
- High performance, reliability, and low power use in Intel (sku2) DH8950CL / (sku3) DH8955CL PCH controller
PE3IS4CO3
Silicom’s Quad HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
SKU2 / SKU3 performance per a single controller: |
||
| Intel@ chip | Sku2 | Sku3 |
| Intel@ Quick Assist Techinlogoy Capability | 50Gbps | *50Gbps |
| IPSec | 43Gbps | *43Gbps |
| SSL | 50Gbps | *50Gbps |
| Compression | 20G | *23G |
| Kasumi/ Snow3G | 30Gbps | *30Gbps |
| RSA Decrypt 1k-bit | 165K (ops/sec) | 190K (ops/sec) |
| RSA Decrypt 2k-bit | 35K (ops/sec) | 40K (ops/sec) |
*x8/ Gen3 card level will limit the IO performance to 54Gbps
Operating Systems Support |
|
| Operating system support: | Linux |
General Technical Specifications |
|
| Interface Standard: | PCI-Express Base Specification Revision 3.0 ( 8 GTs) |
| Board Size: | Low profile long add-in card: 311.99mm X 68.91mm (12.283”X 2.713”) |
| PCI Express Card Type: | x8 Lane |
| PCI Express Voltage: | +12V +- 8% and external 3x2 connector |
| PCI Connector: | Gold Finger: X8 |
| Controller: | Sku2: Intel DH8950CL Sku3: Intel DH8955CL |
| Holder: | Metal Bracket: Full Height and Low Height |
| Operating Humidity: | 0%–90%, non-condensing |
| Operating Temperature: | 0°C – 45°C (32°F – 113°F) Air flow requirement for this adapter is 200 LFM |
| Storage: | -40°C–65°C (-40°F–149°F) |
| EMC Certifications: | FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |
PE3IS4CO3
Silicom’s Quad HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
P/N |
Description |
Notes |
| PE3IS4CO2 | Quad HW Accelerator sku2 Crypto Compression PCI E G3 ServerAdapter | Gen 3.0 X8, Based on Intel® SKU2 DH8950CL, Low-Profile, RoHS compliant |
| PE3IS4CO3 | Quad HW Accelerator sku3 Crypto Compression PCI E G3 ServerAdapter | Gen 3.0 X8, Based on Intel® SKU3 DH8955CL, Low-Profile, RoHS compliant |
Model P/N -LP
1V5
