PE3IS2CO3

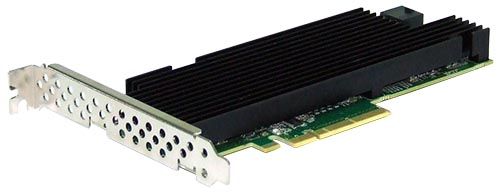

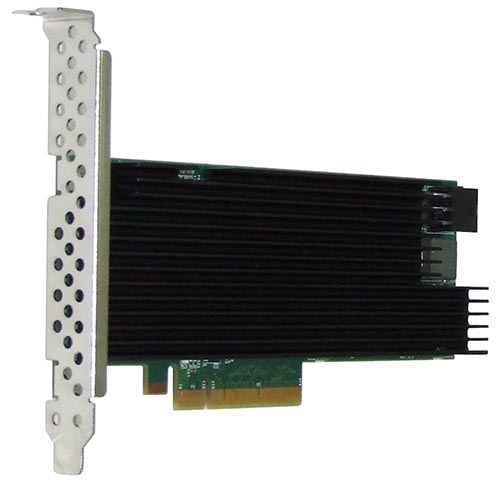

Silicom’s Dual HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
This product has been discontinued – EOL Notification
Silicom’s HW Accelerator Crypto Compression PCI Express Server adapters are based on-chip HW accelerator Intel® comuununcation controller.
Silicom’s PE3IS2CO3 PCI Express Server adapter support Intel QuickAssit Technology for Hardware Ctypto and Compression accelerator engines.
The Silicom’s PE3IS2CO3 PCI Express Server adapter is optimized to Intel Architecture (IA) support.
The Silicom’s PE3IS2CO3 PCI Express Server adapter is based on Intel production process that provides the best industry performance, power and cost.
PE3IS2CO3
Silicom’s Dual HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
Performance Features:
- Intel® QuickAssist Accelerator2
- Symmetric Cryptographic Functions
- Cipher Operations
- Hash/Authenticate Operation
- Cipher-Hash Combined Operation
- Key Derivation Operation
- Random Number Generation
- Public Key Functions
- RSA Operation
- Diffie-Helman Operation
- Digital Signature Standard Operation
- Key Derivation Operation
- Elliptic Curve Cryptography: ECDSA* and ECDH*
- Random Number Generation and Prime Number Testing
- Compression/Decompression
- Deflate (Lempel-Ziv 77-Stac)
- Support for 32 SR-IOV Virtual functions
Common Key features:
- PCI Express X16 lanes
- Support PCI Express Base Specification 3.0 (8 GTs)
- High performance, reliability, and low power use in Intel DH8950CL PCH controller
PE3IS2CO3
Silicom’s Dual HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
PE3IS2CO3 SKU2 / SKU3 performance per a single controller: |
||
| Intel® chip | Sku2 | Sku3 |
| Intel@ Quick Assist Techinlogoy Capability | 50Gbps | *50Gbps |
| IPSec | 43Gbps | *43Gbps |
| SSL | 50Gbps | *50Gbps |
| Compression | 20G | *23G |
| Kasumi/ Snow3G | 30Gbps | *30Gbps |
| RSA Decrypt 1k-bit | 165K (ops/sec) | 190K (ops/sec) |
| RSA Decrypt 2k-bit | 35K (ops/sec) | 40K (ops/sec) |
Operating Systems Support |
|
| Operating system support: | Linux |
General Technical Specifications |
|
| Interface Standard: | PCI-Express Base Specification Revision 3.0 (8 GTs) |
| Board Size: | Low profile add-in card: 218.44mm X 68.91mm (8.6”X 2.713”) |
| PCI Express Card Type: | X16 Lane |
| PCI Express Voltage: | +12V +- 8% and external 3x2 connector |
| PCI Connector: | Gold Finger: X16 |
| Controller: | Sku2: Intel DH8950CL Sku3: Intel DH8955CL |
| Holder: | Metal Bracket: Full Height and Low Height |
| Operating Humidity: | 0%–90%, non-condensing |
| Operating Temperature: | 0°C – 45°C (32°F – 113°F) Air flow requirement for this adapter is 200 LFM |
| Storage: | -40°C–65°C (-40°F–149°F) |
| EMC Certifications: | FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |
PE3IS2CO3
Silicom’s Dual HW Accelerator sku3 Crypto Compression PCI E G3 Server Adapter Intel® Based
P/N |
Description |
Notes |
| PE3IS2CO2 | Dual HW Accelerator sku2 Crypto Compression PCI E G3 ServerAdapter | Gen 3.0 X16, Based on Intel® SKU2 DH8950CL, Low-Profile, RoHS compliant |
| PE3IS2CO3 | Dual HW Accelerator sku3 Crypto Compression PCI E G3 ServerAdapter | Gen 3.0 X16, Based on Intel® SKU3 DH8955CL, Low-Profile, RoHS compliant |
Model P/N -LP Assemble low profile metal bracket
