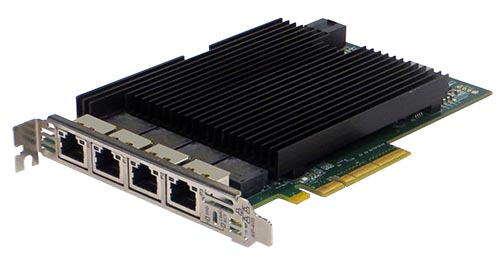

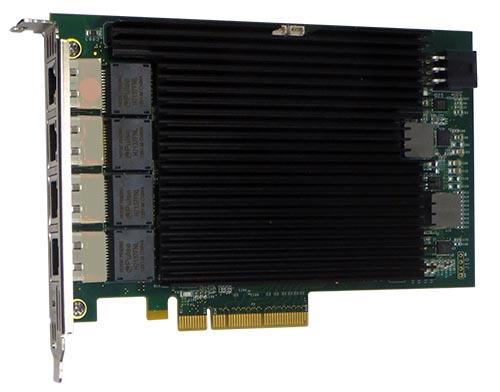

EOL - PE310G4I40-T Ethernet Card
Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® x540 Based
This product has been discontinued – EOL Notification
Silicom’s 10 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end network appliances.
The Silicom 10 Gigabit Ethernet PCI Express Server adapter offers simple integration into any PCI Express X8 to UTP 10GBase-T Gigabit Networks. The Silicom’s 10 Gigabit Ethernet PCI Express server adapters are based on Intel X540.
The Intel X540 10 Gigabit Ethernet controller includes two fully integrated Ethernet Media Access Control (MAC) and two fully integrated 10GBASE-T copper PHYs .
The Intel X540 10 Gigabit Ethernet controllers includes hardware acceleration that can offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
Silicom’s 10 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
EOL - PE310G4I40-T Ethernet Card
Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® x540 Based
| Copper 10Gigabit Ethernet 10GBASE-T: | |
| • | Integrated 10 Gigabit Copper PHY supports 10GBASE-T, 1000 BASE- T and 100BASE- TX |
| • | Triple speed 10Gbps (10GBase-T), 1000Mbps (1000Base-T) and 100 Mbps (100Base-Tx) |
| • | RJ-45 connector supports CAT 6A cable |
| Performance Features: | |
| • | Support for jumbo frame up to 15.5KB |
| • | Statistics management and RMON |
| • | 802.1q VLAN support |
| • | TCP segmentation offload: up to 256KB |
| • | IPV6 Supports for IP/ TCP and IP/UDP Receive Checksum offload |
| • | Fragmented UDP checksum offload for Packet Reassembly |
| • | Message Signal interrupts ( MSI) |
| • | Message Signal interrupts (MSI-X) |
| • | Interrupt throttling control to limit maximum interrupt rate and improve CPU usage |
| • | Multiple Receive Queues ( RSs): 128 (8x8 & 16x4) |
| • | 128 Transmit queues |
| • | Support for 64 Virtual Device Queues (VMDq) per port |
| • | Support Direct Cache Access ( DCA) |
| • | Large on chip receive packet buffer (384 KB) |
| • | Large on chip transmit packet buffer ( 160KB) |
| Host Interface: | |
| • | PCI Express X8 lanes |
| • | Support PCI Express Base Specification 3.0 (8GT/s) |
EOL - PE310G4I40-T Ethernet Card
Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® x540 Based
10GBASE-T Copper Ethernet Adapters Technical Specifications: |
|
| IEEE Standard / Network topology: | Copper 10Gigabit Ethernet, 10GBASE-T, IEEE 802.3an Gigabit Ethernet, 1000Base-T 100 Mb Ethernet: 100BASE- TX |
| Cables and Operating distance: | 100Base-Tx Category 5 maximum 100m 1000Base-T Category 5E maximum 100m 10GBase-T Category 6A maximum 100m |
Operating Systems Support |
|
| Operating system support: | Windows Linux |
General Technical Specifications |
|
| Interface Standard: | PCI-Express Base Specification Revision 3.0 (8GT/s) |
| Board Size: | Standard height half-length add-in card 167.65mm X 111.15mm (6.6”X 4.376”) |
| PCI Express Card Type: | X8 Lane |
| PCI Express Voltage: | +12V +- 8% |
| PCI Connector: | Gold Finger: X8 Lane |
| Controller: | Intel x540 |
| Holder: | Metal Bracket |
| I/O: | RJ45 |
| Operating Humidity: | 0%–90%, non-condensing |
| Operating Temperature: | 0°C – 45°C (32°F – 113°F) |
| Storage: | -40°C–65°C (-40°F–149°F) |
| EMC Certifications: | FCC 47CFR Part 15:2011, Subpart B Class B Conducted emissions Radiated emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendements A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendement A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |
| MTBF*: | 91 (Years) *According to Telcordia SR-332 Issue 2 Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature - 40°C |
LEDs |
|
| LEDs: | (2) LED per port Speed LED(Left): Link of 1Gb/s: Turns on link (yellow) Link of 10Gb/s: Turns on link (green) Link /ACT LED(Right) : Turns on link , blinks on activity (green) |
| LEDs location: | LEDs are located in the RJ45 connector port |
| Connectors: | (4) Shielded RJ-45 |
EOL - PE310G4I40-T Ethernet Card
Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter Intel® x540 Based
P/N |
Description |
Notes |
| PE310G4i40-T | Quad Port Copper 10 Gigabit Ethernet PCI Express Server Adapter | X8 Gen 3.0, Based on Intel X540, RoHS compliant |
1V1
Related Products
-

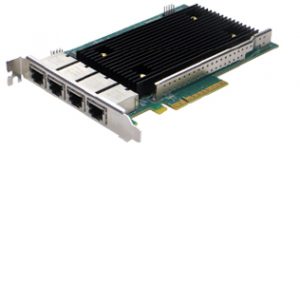

PE310G4I71-T Server Adapter
Quad Port Copper 10 Gigabit Intel® XL710 based
-

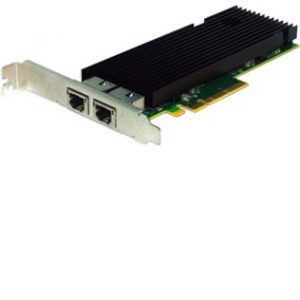

PE310G2T10-T Server Adapter
