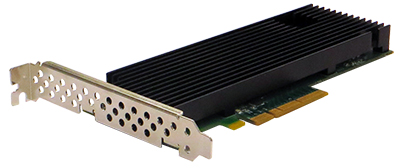

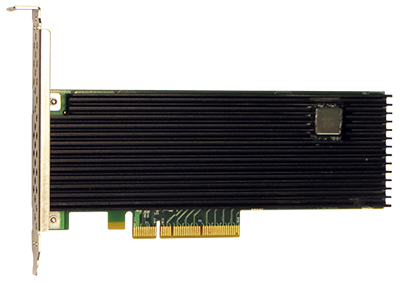

PE2ISCC2 Encryption Server Adapter
HW Accelerator Crypto Compression PCI Express Server Adapter
This product has been discontinued – EOL Notification
Silicom’s HW Accelerator Crypto Compression PCI Express Server adapters are based on standard on-chip HW accelerator Intel Cave Creek controller.
Silicom’s Cave Creek PCI Express Server adapters support Intel QuickAssit Technology for Hardware Ctypto and Compression accelerator engines.
The Silicom’s Cave Creek PCI Express Server adapters are optimized to Intel Architecture (IA) support.
The Silicom’s Cave Creek PCI Express Server adapters are based on Intel production process that provides the best industry performance, power and cost.
PE2ISCC2 Encryption Server Adapter
HW Accelerator Crypto Compression PCI Express Server Adapter
Performance Features:
- Intel® QuickAssist Accelerator2
- Symmetric Cryptographic Functions
- Cipher Operations
- Hash/Authenticate Operation
- Cipher-Hash Combined Operation
- Key Derivation Operation
- Random Number Generation
- Public Key Functions
- RSA Operation
- Diffie-Helman Operation
- Digital Signature Standard Operation
- Key Derivation Operation
- Elliptic Curve Cryptography: ECDSA* and ECDH*
- Random Number Generation and Prime Number Testing
- Compression/Decompression
- Deflate (Lempel-Ziv 77-Stac)
- Support for SR-IOV
- Symmetric Cryptographic Functions
Common Key features:
- Support PCI Express Base Specification 2.0 (5 GTs)
- High performance, reliability, and low power use in Intel 8920CC SKU 4 Quad integrated MAC chip Controller
Performance Features:
- Intel® QuickAssist Accelerator
- Symmetric Cryptographic Functions
- Cipher Operations
- Hash/Authenticate Operation
- Cipher-Hash Combined Operation
- Key Derivation Operation
- Random Number Generation
- Compression/Decompression
- Deflate (Lempel-Ziv 77-Stac)
- Support for 32 SR-IOV Virtual Functions
- Support PCI Express Base Specification 2.0 (5 GTs)
- High performance, reliability, and low power use in Intel DH8926CL (sku11)
Performance Features:
Function |
Cave Creek DH8900CC
|
Cave Creek
|
Cave Creek
|
Cave Creek
|
| Preformance Bulk Crypto only (AES 256-CBC 1150B) | Not supported | 3Gbps | 10Gbps | 20Gbps |
| PKE (RSA1024 w/CRT) | Not supported | 10K Ops/s | 20K Ops/s | 28K Ops/s |
| Compression (Deflate, Stateless, Dynamic, Level 1, 4KB buffers) | Not supported | 3Gbps | 5Gbps | 7Gbps |
| Pattern Matching (Fixed String, Stateless, 5% hit rate, 2KB buffers) | Not supported | 2Gbps @ 1 x20K patterns |
4Gbps @ 2 x20K patterns |
6Gbps @ 2 x20K patterns |
| Max Total Throughput when services used simultaneously | Not supported | 3Gbps | 10Gbps | 20Gbps |
PE2ISCC2 Encryption Server Adapter
HW Accelerator Crypto Compression PCI Express Server Adapter
Operating Systems Support |
|
| Operating system support: | Linux Windows |
PE2ISCC2: General Technical Specifications |
|
| Interface Standard: | PCI-Express Base Specification Revision 2.0 ( 5 GTs) |
| Board Size: | Low profile short add-in card: 167.64mm X 68.91mm (6.60”X 2.713”) |
| PCI Express Card Type: | X4 Lane |
| PCI Express Voltage: | +12V +- 8% |
| PCI Connector: | Gold Finger: X8 |
| Controllers: | Intel DH8903CC (SKU2) |
| Weight: | 170g (6 oz) |
| Power Consumption: | 4.44W, 0.37A at 12V : Typical without data 5.16W, 0.43A at 12V: Typical with data |
| Holder: | Metal Bracket: Full Height and Low Height |
| Operating Humidity: | 0%–90%, non-condensing |
| Operating Temperature: | 0°C – 45°C (32°F - 113°F) |
| Storage: | -40°C–65°C (-40°F–149°F) |
| EMC Certifications: | FCC 47CFR Part 15:2013, Subpart B Class B Conducted emissions Radiated emissions EN 55022: 2010, Class B Conducted disturbance at mains terminals Conducted disturbance at telecommunication port Radiated disturbance EN 61000-3-2: 2006+A1(09)+A2(09) Harmonic current emissions EN 61000-3-3: 2008 Voltage fluctuations and flicker EN 55024: 2010 Immunity to electrostatic discharge (ESD) Radiated immunity to radio frequency electromagnetic field Conducted immunity to electrical fast transients / bursts (EFT/ B) Conducted immunity to voltage surges Conducted immunity to disturbances induced by radio frequency field Conducted immunity to voltage dips and short interruptions |
| MTBF: | 246 years *According to Telcordia SR-332 Issue 2 Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature 25°C. Temperature rise of 15°C above the system ambient temperature was assumed for the cards components. |
PE2ISCC2 Encryption Server Adapter
HW Accelerator Crypto Compression PCI Express Server Adapter
P/N |
Description |
Notes |
| PE2iSCC2 | Network Compression Accelerator PCI Express Server Adapter | X8, Based on Intel 8903CC SKU2, Low-Profile, RoHS compliant |
Order information: Model P/N -LP
1V0
