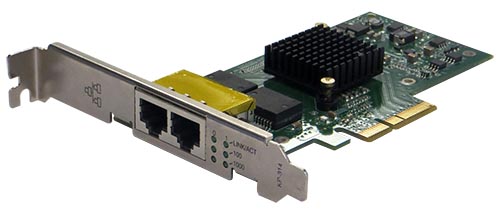

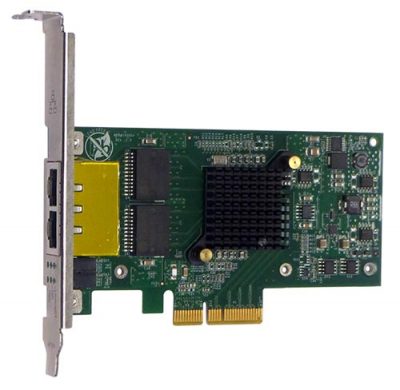

EOL - PE2G2I80 Server Adapter

Dual Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® 82580DB Based

This product has been discontinued – EOL Notification

Silicom’s Dual Port Copper Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 Copper Gigabit Ethernet network interface card that contain Multiple Gigabit ports on a PCI-Express adapter.

Silicom’s Dual Port Copper Gigabit Ethernet PCI Express Server adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.

Silicom’s Dual Port Copper Gigabit Ethernet PCI Express Server adapter enable fault-tolerant via teaming. Traffic from the failed port is routed through other members of the team.

Silicom’s Dual Port Copper Gigabit Ethernet PCI Express Server adapter has an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.

Silicom’s Dual Port Copper Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Silicom’s Dual Port Copper Gigabit Ethernet server adapter is based on Intel 82580 Dual port Gigabit Ethernet MAC+PHY of Intel Controller.

EOL - PE2G2I80 Server Adapter

Dual Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® 82580DB Based

Performance Features:

8 Transmit and Receive queues per port
Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
Support Direct Cache Access (DCA)
Support Intel I/O Acceleration Technology v3.0
TSO interleaving for reduced latency
Minimized device I/O interrupts using MSI and MSI-X
UDP, TCP and IP checksum offload
UDP and TCP transmit segmentation offload (TSO)
SCTP receive and transmit checksum offload
Packet interrupt coalescing timers (packet timers) and absolute- delay interrupt timers for both transmit and receive operation

Copper Gigabit Ethernet 1000Base-T :

Support PCI Express Base Specification 2.0 (5 GTs)
High performance, reliability, and low power use in Intel 82580 Dual integrated MAC + PHY and SERDES chip Controllers
Ultra deep, packet buffer per channel lowers CPU utilization
Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
Server class reliability, availability and performance features:
Link Aggregation and Load Balancing:
- Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
- Switch and NIC Independent
- Failover
Priority queuing – 802.1p layer 2 priority encoding
Virtual LANs –802.1q VLAN tagging
Jumbo Frame (9.5KB)
802.x flow control
Multicast/ broadcast Packet replication
Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
Supports Vital Product Data (VPD)
LEDs indicators for link/Activity/Speed status

EOL - PE2G2I80 Server Adapter

Dual Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® 82580DB Based

Copper Gigabit Ethernet Technical Specifications - (1000Base-T) Adapters:
IEEE Standard / Network topology:	Gigabit Ethernet, 1000Base-T Fast Ethernet, 100Base-TX Ethernet, 10Base-T
Full duplex / Simplex:	Support both Simplex & Full duplex operation in all operating speeds
Auto negotiation:	Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s
Data Transfer Rate:	1000 Mb/s, 100 Mb/s and 10 Mb/sec in simplex mode per port. 2000Mb/s 200Mb/s and 20Mb/s in full duplex mode per port
Cables and Operating distance:	10Base-T Category 3, 4, or 5 maximum 100m 100Base-Tx Category 5 maximum 100m 1000Base-T Category 5E maximum 100m
Operating Systems Support
Operating system support:	Windows Linux FreeBSD VMware
General Technical Specifications
Interface Standard:	PCI-Express Base Specification Revision 2.0 ( 5 GTs)
Board Size:	Low profile short add-in card: 127mm X 68.91mm (5.00”X 2.713”)
PCI Express Card Type:	X4 Lane
PCI Express Voltage:	+3.3V +-9%, +12V +- 8%
PCI Connector:	Gold Finger: X4
Controller:	Intel 82580DB
Holder:	Metal Bracket
I/O:	Dual RJ45 located on edge of the board
Weight:	110g (3.88 oz)
Power Consumption:	3.6W, 0.3A at 12V: Typical all ports operate at 1000Mb/s. 2.88 W, 0.24A at 12V: Typical all ports operate at 100Mb/s. 2.88 W, 0.24 at 12V: Typical all ports operate at 10Mb/s. 2.4 W, 0.2A at 12V: Typical No link at all ports
Holder:	Metal Bracket: Full Height/Low profile Height
Operating Humidity:	0%–90%, non-condensing
Operating Temperature:	0°C – 50°C (32°F - 122°F)
Storage:	-20°C–65°C (-4°F–149°F)
EMC Certifications:	FCC Part 15, Subpart B Class B Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class B Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
MTBF:	310 (Years) *According to Telcordia SR-332 Issue 1 Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature - 25°C. Temperature rise of 15°C above the system ambient temperature was assumed for the cards components
LEDs
LEDs:	(3) Led’s per port Link / Act: Turn on any Link (1000, 100 or 10), Blinks on Activity (green) 100: Turns on 100Mb/s Link (green) 1000: Turns on 1000 Mb/s Link (green)
LEDs location:	Led’s are located on the PCB, visible via holes in the metal bracket holder
Connectors:	(4) Shielded RJ-45

EOL - PE2G2I80 Server Adapter

Dual Port Copper Gigabit Ethernet PCI Express Server Adapter Intel® 82580DB Based

P/N	Description	Notes
PE2G2I80-R	Dual Port Copper Gigabit Ethernet PCI Express Server Adapter	X4, Based on Intel 82580DB, Low-Profile, RoHS compliant
