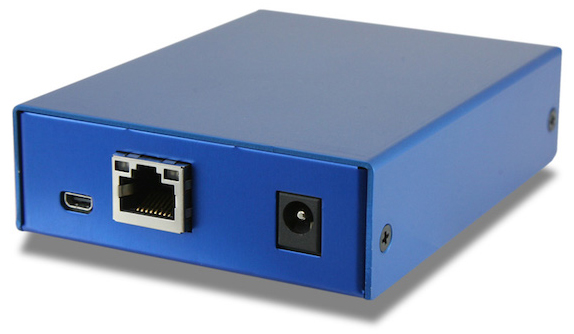

MinnowBoard Turbot
Intel Atom® E3826 Processor MinnowBoard Turbot
This product has been discontinued – EOL Notification
MinnowBoard Turbot is an enhanced MinnowBoard MAX compatible board that brings FCC and CE certification, increased performance, and robustness to MinnowBoard family.
The expandable open sourse hardware design of MinnowBoard Turbot peovides endless possibilities for customization and integration.
With its regulatory compliance and enhanced design, MinnowBoard Turbot is no longer just for developers and makers, but can be confidently deployed by OEMs and across an incredibly deverse range of commercial applications.
MinnowBoard Turbot
Intel Atom® E3826 Processor MinnowBoard Turbot
Key Features:
- Enhanced MinnowBoard for developers, makers, and OEMs
- Intel Atom® E3826 Processor 1.46 GHz Dual Core CPU
- FCC and CE certified, OEM production quality
- Open-source under Creative Commons BY-SA 3.0
- Collateral on minnowboard.org
General Technical Specifications |
|
| Form Factor | MinnowBoard compatible 99x74mm |
| CPU | Intel Atom® E3826 Processor (2 x 1.46 GHz, 1MB cache, 7W, AES-NI) |
| DRAM | 2GB DDR3L 1067MT/s, Memory down (non expandable) |
| Ethernet | 1x 1Gb Ethernet RJ45 |
| Video | Intel HD Graphics 1x micro HDMI output |
| Storage | 1x SATA2 1x MicroSD |
| I/O Connectors | 1x USB 2.0 host 1x USB 3.0 host 8x buffered GPIO |
| Expansion Interface | MinnowBoard Max compatible Lure interface High-speed expansion connector Low-speed expansion connector |
| Console | Serial via FTDI cable |
| Boot Loader | TianoCore UEFI CoreBoot / SeaBIOS |
| Power | 5VDC via coaxial power jack |
| Temperature | Fanless ambient operating temperature: 0-40C (Wider range possible with a larger heatsink than provided with standard boards) |
| Certifications | FCC Part 15 Class A CE Class A IEC-60950 RoHS/WEEE |
| Custom Configurations | Available subject to MOQ - Contact Us for details |
MinnowBoard Turbot
Intel Atom® E3826 Processor MinnowBoard Turbot
P/N |
Description |
| 80500-0125-G00 | – Form Factor: 99×74 mm – E3826 CPU (2 x 1.46 GHz, 1MB cache, 7W, AES-NI) – 2GB DDR3L – 1x Gb Ethernet RJ45 – Micro HDMI output – MicroSD – Serial debug – 1x USB 2.0 host – 1x USB 3.0 host – 1x SATA2 – 8x buffered GPIO – HSE expansion connector – LSE expansion connector – FCC and CE Class B certified |
| 80500-0139-G01 | – Form Factor: 99×74 mm – E3845 CPU (4 x 1.91 GHz, 2MB cache, 10W, AES-NI) – 2GB DDR3L – 1x Gb Ethernet RJ45 – Micro HDMI output – MicroSD – Serial debug – 1x USB 2.0 host – 1x USB 3.0 host – 1x SATA2 – 8x buffered GPIO – HSE expansion connector – LSE expansion connector – FCC and CE Class B certified |
