MinnowBoard Turbot Dual-Ethernet

Intel® Atom™ E3826 or E3845 Processor MinnowBoard Turbot

This product has been discontinued EOL Notification

  • Dual Ethernet MinnowBoard for developers, makers, and OEMs
  • CPU Options: E3826 1.46 GHz Dual Core, E3845 1.91 GHz Quad Core
  • 2x Intel i211 Ethernet ports
  • M.2 slot for SSD, Wi-Fi, or LTE, with Micro-SIM socket
  • FCC and CE certified, OEM production quality
  • Open-source under Creative Commons BY-SA 3.0
  • Collateral will be posted to minnowboard.org

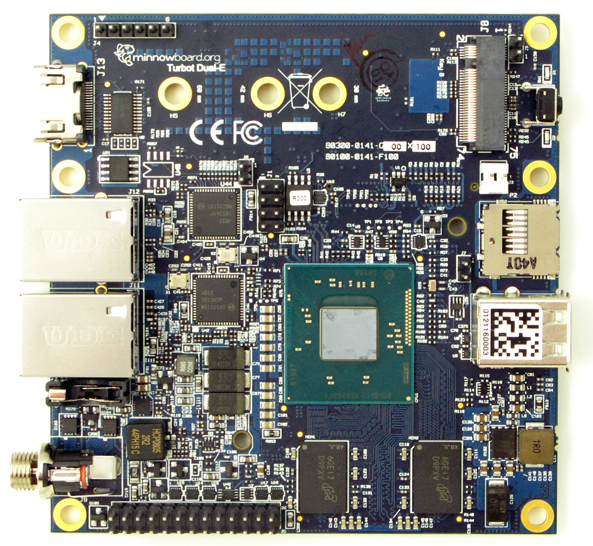

MinnowBoard Turbot Dual-Ethernet

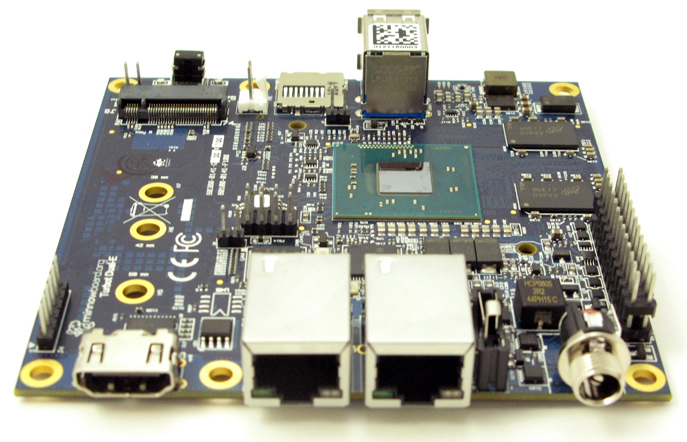

Silicom MinnowBoard Turbot Dual-Ethernet

MinnowBoard Turbot Dual-Ethernet

Intel® Atom™ E3826 or E3845 Processor MinnowBoard Turbot

General Technical Specifications

Form FactorMinnowBoard compatible 99x103mm
CPUIntel® Atom™ E3826 Processor (2 x 1.46 GHz, 1MB cache, 7W, AES-NI)
Intel® Atom™ E3845 Processor (4 x 1.91 GHz, 1MB cache, 10W, AES-NI)
DRAM2GB DDR3L 1067MT/s, Memory down (non expandable)
Ethernet2x 1Gb Ethernet RJ45, based on Intel i211
VideoIntel HD Graphics
1x HDMI output
Storage1x M.2 slot, with Micro-SIM
1x MicroSD
I/O Connectors1x USB 2.0 host
1x USB 3.0 host
8x buffered GPIO
Expansion InterfaceMinnowBoard Max compatible Lure interface
High-speed expansion connector
Low-speed expansion connector
ConsoleSerial via FTDI cable
Boot LoaderTianoCore UEFI
CoreBoot / SeaBIOS
Power5VDC via coaxial power jack (threaded locking connector)
TemperatureFanless ambient operating temperature: 0-40C
CertificationsFCC Part 15 Class A
CE Class A
IEC-60950
RoHS/WEEE
Custom ConfigurationsAvailable subject to MOQ – Contact Us for details

MinnowBoard Turbot Dual-Ethernet

Intel® Atom™ E3826 or E3845 Processor MinnowBoard Turbot

P/N

Description

80300-0141-G00– Form Factor: 99×103 mm
– E3826 CPU (2 x 1.46 GHz, 1MB cache, 7W, AES-NI)
– 2GB DDR3L
– 2x Gb Ethernet RJ45
– 1 x HDMI output
– MicroSD
– Serial debug
– 1x USB 2.0 host
– 1x USB 3.0 host
– 8x buffered GPIO
– HSE expansion connector
– LSE expansion connector
– FCC and CE Class A certified
80300-0141-G01– Form Factor: 99×103 mm
– E3845 CPU (4 x 1.91 GHz, 2MB cache, 10W, AES-NI)
– 2GB DDR3L
– 2x Gb Ethernet RJ45
– 1 x HDMI output
– MicroSD
– Serial debug
– 1x USB 2.0 host
– 1x USB 3.0 host
– 8x buffered GPIO
– HSE expansion connector
– LSE expansion connector
– FCC and CE Class A certified
