IBS10G Bypass Switch

Intelligent 10G Bypass Switch

This product has been discontinued

NXP EOL Notification | Broadcom EOL Notification

Silicom Intelligent Bypass switch (IBS) is an active external Bypass switch that protects network integrity from network failures and network maintenance. The Silicom intelligent Bypass switch (IBS) generates the heartbeat and controls the mode of operation.

The Silicom Intelligent Bypass switch (IBS) supports four modes of operations: Inline, Bypass, Tap and Linkdrop. In Inline mode, the IBS diverts inline network traffic to attached in-line network system. In Bypass mode, the IBS does not divert the traffic to the attached in-line network system and diverts it to other network link. In Tap mode, incoming traffic in port NET0 is mirrored to port MON0 and incoming traffic in port NET1 is mirrored to port MON1.In Linkdrop mode the IBS disables the links on the network ports (NET0, NET1). The IBS simulates switch / router cable disconnection.

The IBS generates the heartbeat packets and transmits the heartbeat packet to the in-line Monitor / Network appliance port, the Monitor Network appliance receives the heartbeat packets and transmits is to its other port (bridges the heartbeat packet). The IBS detects back the heartbeat packet and maintains the Inline mode.

The IBS sets to Bypass, Tap or Linkdrop when it does not receive back the heartbeat packet from the Network / Monitor appliance. When the Network / Monitor appliance recovers, it transmits back the heartbeat packet and the Intelligent switch sets to Inline. The IBS bypasses its Ethernet Monitor ports on event of power failure, Link failure, in-line software application system hang or user request.

The IBS includes Double Bypass Safe architecture. The Silicom Double Bypass safe architecture is based on two Bypass routing circuitry: An Active Bypass circuitry and Passive Bypass circuitry. If the internal active bypass routing circuitry fails, the passive Bypass routing circuitry is activated.

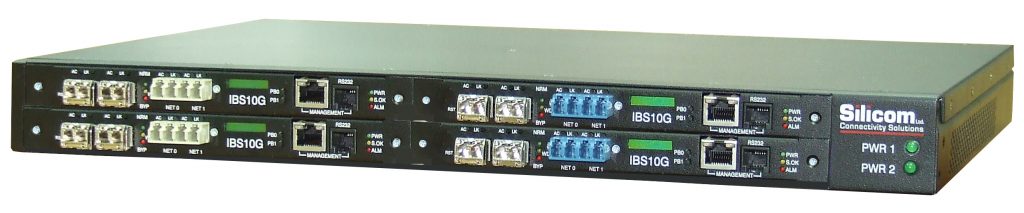

ibsh-new-pic

The IBS can be configured using:

  • Simple CLI configuration management via a serial communication console port, Ethernet port using Telnet or SSH
  • Web interface management interface
  • SNMP

The IBS includes two duplex LC ports for network ports, two 2 SFP+ ports for the attached in-line network system, serial port (RJ-11) and Ethernet port (RJ-45). The IBS support 10 Gigabit Multimode Fiber (10GBase-SR) and 10 Gigabit single mode (10GBase-LR) network standards.

The IBS1U is a 1U host system supports up to four intelligent bypass switches (IBS). The Bypass Switch Host can support up to four intelligent Bypass Switch modules. The Bypass switch host includes two redundant 110 – 220 V AC power supply or two redundant -48 DC power supply.

Figure: 1 – Front panel view of IBS

IBSH1-500

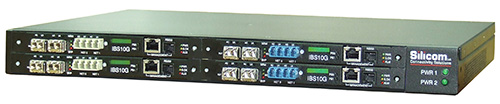

Figure: 2 – Front panel view of IBS with 4 modules

IBS10g2-500

IBS10G Bypass Switch

Intelligent 10G Bypass Switch

Key Features:

  • Self generating heartbeat pulses – No driver or management port is required to generate pulses
  • Sets to Bypass when it detects in-line system failure
  • Sets to Bypass when it detects in-line system link failure
  • Sets to Bypass when it detects in-line software application system hang
  • Sets to Bypass on Power failure
  • Sets to Normal when it detects in-line system recovery
  • Double Safe Bypass architecture with two routing circuitries
  • Two on Board Watch Dog Timer (WDT) Controllers
  • Software programmable time out interval
  • Support Two ports link feature - if one of the network ports link fails it will drop the link on the other network port as well
  • Independent Bypass / Normal / Tap /Linkdrop operation in every module
  • Supports up to four modules in a chassis
  • Supports 6 different TAP mode of operation
  • Simple CLI configuration management via serial port
  • HTTP/HTTPS management interface via network management port
  • Telnet management interface via network management port
  • SSH management interface via network management port
  • Supports SNMP version 1, 2c, 3 (SHA, AES)
  • Support for SNMP multi trap destinations
  • Supports remote log
  • Supports TACACS+
  • Support for TACACS multi users
  • Supports NTP
  • Supports time zone
  • Supports remote save/restore backup configuration
  • Two redundant power supplies
  • Support power supply monitoring
  • Optional -48V DC power supplies

IBS10G-SR

  • Supports Short Range Fiber 10 Gigabit Ethernet (10GBase-SR 62.5um)

IBS10G-SR5

  • Supports Short Range Fiber 10 Gigabit Ethernet (10GBase-SR 50um)

IBS10G-LR

  • Supports Long Reach Fiber 10 Gigabit Ethernet (10GBase-LR)

IBS10G-ERSR

  • Supports Extended Reach Fiber 10 Gigabit Ethernet (10GBase-ER) on the Network Ports
  • Supports Short Range Fiber (10GBase-SR) 10Gigabit Ethernet on the Monitor Ports

IBS10G Bypass Switch

Intelligent 10G Bypass Switch

Bypass Specifications

WDT Interval (Software Programmable) Routing
Transmit heart beat packet every 3mS – 10Sec. Default 5mS Verification packets received every 10mS – 50Sec. Default 20mSec
Double Bypass
Transmit heart beat packet every 300mS – 60Sec. Default 7Sec Verification packets received every 1S – 253Sec. Default 20Sec

Production Default Specifications

Mode at Power up Bypass
Heartbeat Activated
Bypass Switch is ready and in-line device responds to heartbeat Change to Normal
In-line device responds to heartbeat Normal
in-line device does not respond heartbeat Bypass
Mode at Power 0ff Bypass
Heartbeat Packet Internetwork Packet Exchange

IBS1UP: Bypass Switch 1U Host System Technical Specifications

Dockings Front holders
Voltage Input AC: 90-240 VAC Auto-Select
-48 (-75 - -36) VDC
Power Consumption 160W maximum - When 4 IBS modules are installed
Size 444mm x 339.3mm x 44 mm ( 17.48” x 13.358” x 1.732”)
Wide x Depth X Height
Operating Humidity 0%–90%, non-condensing
Operating Temperature 0°C – 50°C (32°F - 122°F)
Storage Temperature -20°C–65°C (-4°F–149°F)
EMC Certifications Class B FCC / CE / VCCI
MTBF* > 150,000 hours

IBS1U: Bypass Switch 1U Host System LEDs / Connector Specifications

LEDs (2) Power LED – Green, Power is on, LED per power supply

IBS10G-SR (62.5um) - Fiber Gigabit Ethernet Technical Specifications - (10GBase-SR) Adapters

IEEE Standard / Network topology Fiber Gigabit Ethernet, 10GBase-SR (850nM)
Data Transfer Rate 20Gbit/s in full duplex mode per port
Cables and Operating distance Multimode fiber:62.5um
137m maximum at 62.5 um
**Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard
Output Transmit Power Typical: -2.6 dBm
Minimum: -3 dBm
Optical Receive Sensitivity Typical: -14.6 dBm
Maximum: -11.1 dBm
Insertion Loss ( Passive: Normal Mode) Typical: 0.8 dB
Maximum: 1.9 dB
Insertion Loss ( Passive: Bypass Mode) Typical: 0.8 dB
Maximum: 1.9 dB
Voltage 12V +/-5%
Power Consumption 23.64W 1.97 A at 12V: Typical all ports operate at 10Gbit/s
Size 173.3mm x 164.9mm x 20 mm ( 6.822” x 6.73” x 0.787”) Wide x Depth X Height
Operating Humidity 0%–90%, non-condensing
Operating Temperature 0°C – 40°C (32°F - 104°F)
Storage Temperature -20°C–65°C (-4°F–149°F)
EMC Certifications Class B / FCC / CE / VCCI
Safety UL
MTBF* > 150,000 hours

IBS10G-SR: LED and Connector Specifications

LEDs: Network / Monitor ports:
Link LED – (Green) On Link partner is detected.
Activity LED – (Yellow) Blinks on activity.
Power - Green power is on
Normal – Green, Switch in Normal mode.
SysOK – Yellow when Sys is OK,
WDT – Blink Yellow when WDT is activated
Light Yellow WDT time out
Off: WDT is disable
Bypass - Red when bypass, off on Normal
Alarm – Red on system alarm
Connectors: Network: 2 LC Duplex
Monitor: 2 SFP+
Management
RJ-11 serial port
RJ-45 Ethernet // optional for future use

IBS10G–SR5 (50um) - Fiber Gigabit Ethernet Technical Specifications - (10GBase-SR5) Adapters:

IEEE Standard / Network topology: Fiber Gigabit Ethernet, 10GBase-SR (850nM)
Data Transfer Rate: 20Gbit/s in full duplex mode per port
Cables and Operating distance: Multimode fiber:50um
50um, 400MHz/Km 33m
50um, (OM2)500 MHz/Km 41m
50um, (OM3)2000MHz/Km 150m
Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard
Output Transmit Power: Typical: -2.6 dBm
Minimum: -3 dBm
Optical Receive Sensitivity: Typical: -14.6 dBm
Maximum: -11.1 dBm
Insertion Loss ( Passive: Normal Mode) Typical: 0.8 dB
Maximum: 1.9 dB
Insertion Loss ( Passive: Bypass Mode) Typical: 0.8 dB
Maximum: 1.9 dB
Voltage: 12V +/-5%
Power Consumption: 23.64W 1.97 A at 12V: Typical all ports operate at 10Gbit/s
Size: 173.3mm x 164.9mm x 20 mm ( 6.822” x 6.73” x 0.787”)
Wide x Depth X Height
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 50°C (32°F - 104°F)
Storage Temperature: -20°C–65°C (-4°F–149°F)
EMC Certifications: Class B / FCC / CE / VCCI
Safety: UL
MTBF*: > 150,000 hours

IBS10G-SR5: LED and Connector Specifications

LEDs:

Network / Monitor ports:
Link LED – (Green) On Link partner is detected.
Activity LED – (Yellow) Blinks on activity.

Power - Green power is on
Normal – Green, Switch in Normal mode

SysOK – Yellow when Sys is OK,
WDT – Blink Yellow when WDT is activated
Light Yellow WDT time out
Off: WDT is disabled
Bypass - Red when bypass, off on Normal
Alarm – Red on system alarm

Connectors: Network: 2 LC Duplex
Monitor: 2 SFP+
Management
RJ-11 serial port
RJ-45 Ethernet // optional for future use

IBS10GP-LR - Fiber 10Gigabit Ethernet Technical Specifications - (10G Base-LR) Adapters

IEEE Standard / Network topology Fiber Gigabit Ethernet, 10GBase-LR (1310nM)
Data Transfer Rate 20Gbit/s in full duplex mode per port
Network ports Cables and Operating distance Single mode fiber:
5000m maximum at 9 um **
10.3dbm
Output transmit power: (-8.2 to 0.5) dbm
Insertion Loss ( Passive: Normal Mode) Typical: 1.2 dB
Maximum: 1.6dB
Insertion Loss ( Passive: Bypass Mode) Typical: 1.2 dB
Maximum: 1.6dB
Voltage 12V +/-5%
Power Consumption 24.6W 2.07 A at 12V: Typical all ports operate at 10Gbit/s
Size 173.3mm x 164.9mm x 20 mm ( 6.822” x 6.73” x 0.787”)
Operating Humidity 0%–90%, non-condensing
Operating Temperature 0°C – 40°C (32°F - 104°F)
Storage Temperature -20°C–65°C (-4°F–149°F)
EMC Certifications Class B FCC / CE / VCCI /
Safety UL
MTBF* > 150,000 hours

IBS10GP-LR: LED and Connector Specifications

LEDs

Network / Monitor ports:
Link LED – (Green) On Link partner is detected.
Activity LED – (Yellow) Blinks on activity.

Power - Green power is on
Normal – Green, Switch in Normal mode.

SysOK – Yellow when Sys is OK,
WDT – Blink Yellow when WDT is activated
Light Yellow WDT time out
Off: WDT is disabled
Bypass - Red when bypass, off on Normal
Alarm – Red on system alarm

Connectors

Network: 2 LC Duplex
Monitor: 2 SFP+

Management
RJ-11 serial port
RJ-45 Ethernet // optional for future use

IBS10GP-ER - Fiber 10Gigabit Ethernet Technical Specifications - (10G Base-ER) Adapters:

IEEE Standard / Network topology: Fiber Gigabit Ethernet, 10GBase-ER (1550nM) on Netowrk Ports.
Data Transfer Rate: 20Gbit/s in full duplex mode per port
Network ports Cables and Operating distance: Single mode fiber:
20000m maximum at 9 um **,
**Defined as half of the total link. 40,000m total link
Voltage: 12V +/-5%
Size: 173.3mm x 164.9mm x 20 mm ( 6.822” x 6.73” x 0.787”)
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 40°C (32°F - 104°F)
Storage Temperature: -20°C–65°C (-4°F–149°F)
EMC Certifications: Class B FCC / CE / VCCI /
MTBF*: > 150,000 hours

IBS10GP-ER: LED and Connector Specifications

LEDs:

Network / Monitor ports:
Link LED – (Green) On Link partner is detected.
Activity LED – (Yellow) Blinks on activity.

Power - Green power is on
Normal – Green, Switch in Normal mode.

SysOK – Yellow when Sys is OK,
WDT – Blink Yellow when WDT is activated
Light Yellow WDT time out
Off: WDT is disabled

Bypass - Red when bypass, off on Normal
Alarm – Red on system alarm

Connectors: Network: 2 LC Duplex
Monitor: 2 SFP+
Management
RJ-11 serial port
RJ-45 Ethernet // optional for future use

Fiber 10Gigabit Ethernet Technical Specifications - (10G Base-ER/SR) Adapters:

IEEE Standard / Network topology: Fiber Gigabit Ethernet, 10GBase-ER (1550nM) on Netowrk Ports.
Fiber Gigabit Ethernet, 10GBase-SR (850nM) on Monitor Ports
Data Transfer Rate: 20Gbit/s in full duplex mode per port
Netowrk ports Cables and Operating distance: Single mode fiber:
20000m maximum at 9 um **,
**Defined as half of the total link. 40,000m total link
Voltage: 12V +/-5%
Size: 173.3mm x 164.9mm x 20 mm ( 6.822” x 6.73” x 0.787”)
Operating Humidity: 0%–90%, non-condensing
Operating Temperature: 0°C – 40°C (32°F - 104°F)
Storage Temperature: -20°C–65°C (-4°F–149°F)
EMC Certifications: Class B FCC / CE / VCCI
MTBF*: > 150,000 hours

IBS10GP-ERSR: LED and Connector Specifications

LEDs: Network / Monitor ports:
Link LED – (Green) On Link partner is detected.
Activity LED – (Yellow) Blinks on activity.
Power - Green power is on
Normal – Green, Switch in Normal mode
SysOK – Yellow when Sys is OK,
WDT – Blink Yellow when WDT is activated
Light Yellow WDT time out
Off: WDT is disabled
Bypass - Red when bypass, off on Normal
Alarm – Red on system alarm
Connectors: Network: 2 LC Duplex
Monitor: 2 SFP+
Management
RJ-11 serial port
RJ-45 Ethernet // optional for future use



Functional Description

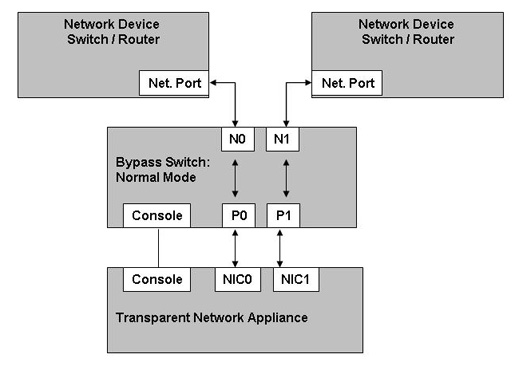

Figure: 3 - Normal Mode Functional Block Diagram

bs series_3

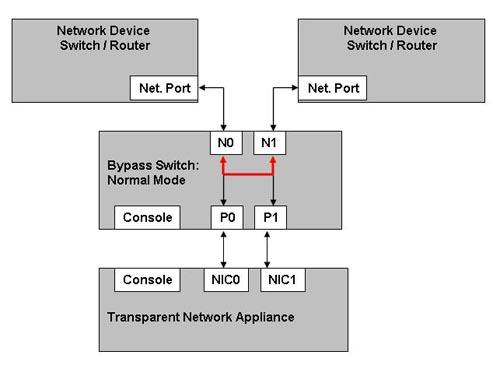

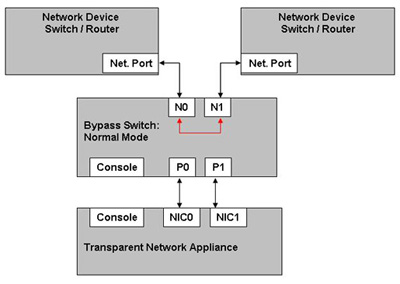

Figure: 4 - Bypass Mode Functional Block Diagram

bs series_4_500

Figure : 5- Tap Mode Functional Block Diagram

IBSGPT3

Figure : 6- Linkdrop Mode Functional Block Diagrama

IBSGPT4

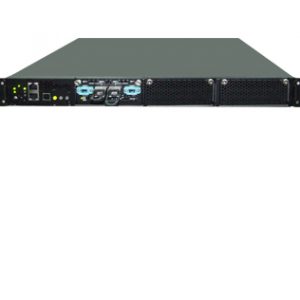

IBS10G Bypass Switch

Intelligent 10G Bypass Switch

IBS

System Format

Media

Media Type

Power Cord

-R

IBSP: Intelligent Bypass Switch 1U: 1U 10G: 10Gb SR: Short Range
LR: Long Reach
ER: Extended Reach
-US
-EU
-CN
-48V
ROHS



P/N

Description

Notes

IBS10GP-SR 10 Gigabit (SR) fiber Intelligent Bypass Switch 10G - Multimode fiber:62.5um
IBS10GP-SR5 10 Gigabit (SR) fiber Intelligent Bypass Switch 10G – Multimode fiber:50um
IBS10GP-LR 10 Gigabit (LR) fiber Intelligent Bypass Switch 10G – Singlemode
IBS10GP-ER 10 Gigabit (ER) fiber Intelligent Bypass Switch 10G – ER on the Network and Monitor ports
IBS10GP-ERSR 10 Gigabit (ER) fiber Intelligent Bypass Switch 10G – ER on the Network ports, SR on the Monitor ports
IBS1UP-US Intelligent Bypass Switch 1U host system 1U host system,(90-240 VAC Auto-Select), US cable
IBS1UP-EU Intelligent Bypass Switch 1U host system 1U host system,(90-240 VAC Auto-Select), EU cable
IBS1UP-CN Intelligent Bypass Switch 1U host system 1U host system,(90-240 VAC Auto-Select), CN cable
IBS1U-48 Intelligent Bypass Switch 1U host system 1U host system,(-75 - -36) VDC
IBS10G1UP-1SR-EU 1U w/ 10 Gigabit Fiber (SR) Intelligent Bypass Switch Multimode fiber:62.5um
1U host, EU cable
IBS10G1UP-1SR5-EU 1U w/ 10 Gigabit Fiber (SR) Intelligent Bypass Switch Multimode fiber:62.5um
1U host, EU cable
IBS10G1UP-1LR-US 1U w/ 10 Gigabit Fiber (LR)Intelligent Bypass Switch Single mode, 1U host, US cable
IBS10G1UP-1LR-CN 1U w/ 10 Gigabit Fiber (LR) Intelligent Bypass Switch Single mode, 1U host, CN cable
IBS10G1UP-1LR-48 1U w/ 10 Gigabit Fiber (LR)Intelligent Bypass Switch Single mode, 1U host, -48V redundant power supply
IBS10G1UP-1ER-EU 1U w/ 10 Gigabit Fiber (ER)Intelligent Bypass Switch 10G – ER on the Network and Monitor ports, 1U host, EU cable
IBS10G1UP-1ERSR-US 1U w/ 10 Gigabit Fiber (ER)Intelligent Bypass Switch 10G – ER on the Network ports, SR on the Monitor ports
1U host, US cable
IBS10G1UP-2SR-EU 1U w/ Two 10 Gigabit (SR) Intelligent Bypass Switch 2 x Multimode fiber:62.5um , 1U host, EU cable
IBS10G1UP-2SR-48 1U w/ Two 10 Gigabit (SR) Intelligent Bypass Switch 2 x Multimode
fiber:62.5um
1U host, -48V
redundant power supply
IBS10G1UP-2SR5-EU 1U w/ Two 10 Gigabit (SR) Intelligent Bypass Switch 2 x Multimode fiber:50um
1U host, EU cable
IBS10G1UP-1LR-1SR 1U w/ Two 10 Gigabit Intelligent Bypass Switch. One (LR) and one (SR) 1 x Single mode, 1x Multimode, 1U host, EU cable



Note: Model P/N
--US: Includes US power cables, redundant power supply (90-240 VAC Auto-Select)
-EU: Includes EU power cables, redundant power supply (90-240 VAC Auto-Select)
-CN: Includes CN power cables, redundant power supply (90-240 VAC Auto-Select)
-48: redundant power supply (-75 - -36) VDC

1V1

FacebookTwitterLinkedIn
YouTube Channel
