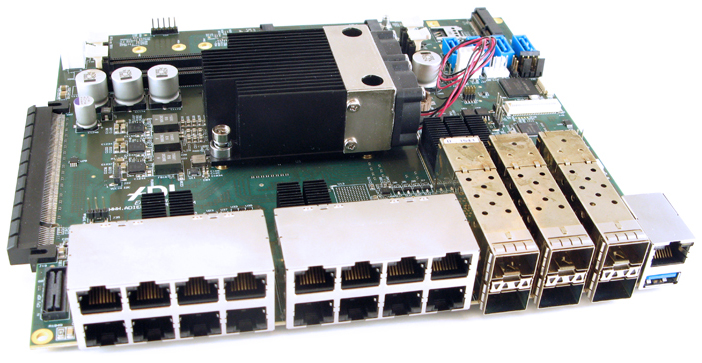

BCC-VE Network Board
Intel Xeon® D Processor x86 Network Board
This product has been discontinued
- Next-Generation NFV, SDN Appliance based on Intel Xeon® D Processor SoC
- 6x 10Gb Ethernet + 16x 1Gb RJ45
- Dual On-board Marvell AlleyCat switches
- Co-Planar PCIe slot for Optional Intel 8955 accelerator, HBA, or Bypass NIC
- Optional – new Open-Source MicroBMC (based on pfSense)
- In limited beta sampling now, Production Q4 2016
BCC-VE Network Board
Intel Xeon® D Processor x86 Network Board
General Technical Specifications |
|
| Form Factor | 215 x 167.65mm, 1U |
| CPU | Intel Xeon® D Processor (Codename Broadwell-DE) Up to 65W TDP |
| DDR4 DRAM | Dual channel DDR4 2400 MT/s DIMM, 1 DIMM per channel Support for unbuffered and registered DIMMs, ECC or non-ECC Up 64GB total DDR4 size |
| Ethernet | Up to 6x SFP+ 10Gb Up to 16x RJ45 1Gb via dual Marvell AlleyCat switches on-board Up to 2x SFP 1Gb Ethernet via Intel i210 1x RJ45 1Gb via Intel i210 for management. Two operating modes: (1) Dedicated management port, or (2) Shared extra payload port + in-band management, via dedicated 3-port switch |
| Storage | eMMC on-board: 16, 32, or 64GB 1x M.2 Key-M SATA3 slot (2242 or 2280 modules supported) 1x M.2 Key-B SATA3 slot (2230, 2242, and 3042 modules supported) Both M.2 slots also support PCIe Gen2, USB2, and USB3 SATA3 host (x4) |
| I/O Connectors | USB 3.0 host Type A connector (1x) PCIe Gen3 x16 co-planar slot for optional accelerator, HBA, bypass NIC, or other expansion MiniPCI Express 1x (with micro-SIM slot), also supports USB 2.0 |
| Trusted Platform Module (TPM) | TPM v2.0 on board, Infineon SLB9665 |
| Console | Serial over Mini-USB |
| Management | Slot for new ADI open-source MicroBMC module Two initial MicroBMC modules, one based on TI Sitara, one based on Intel Quark X1000 New open-source BMC firmware based on pfSense security gateway software 1x RJ45 1Gb via Intel i210 for management. Two operating modes: (1) Dedicated management port, or (2) Shared extra payload port + in-band management, via dedicated 3-port switch |
| Boot Loader | CoreBoot / SeaBIOS |
| Boot Flash | Dual redundant 16MB SPI boot flash Known good boot image support with failover |
| Power | ATX 8-pin 12V power input connector Optional power-OR'ing board for dual redundant power inputs |
| Fan Control | On-board temperature controlled fan controller Supports up to two independent fans |
| Temperature | Operating: 0-55C Storage: -20-85C |
