Edge Networking Solutions

Tenerife Networking Appliance Series

1U Network Appliance based on Intel® Xeon® 6 SoC HCC

Tenerife 1U Networking Appliance features a next-gen Intel® Xeon® 6 SoC processor designed to deliver server-class computing, advanced cybersecurity, and high-bandwidth performance. Tailored for today’s demanding network environments, Tenerife combines built-in AI acceleration, Deep Learning Boost, and real-time processing capabilities.

Silicom’s Tenerife enables scalable infrastructure deployment across edge, core, and hybrid networks. It is available in configurations with ranging from 12 to 42 cores, offering flexible performance options suited for compute-intensive and latency-sensitive workloads.

With integrated Intel® QAT Gen 5, Tenerife accelerates encryption (up to 200GB), compression (up to 80GB), and decompression (up to 160GB), delivering secure and efficient throughput for high-performance applications.

Additional capabilities include BMC management, TPM 2.0 secure boot, redundant 1100W power supplies, and flexible NVMe storage options – making Tenerife a robust, future-ready platform for next-gen WAN optimization, network security, and AI-driven infrastructure.

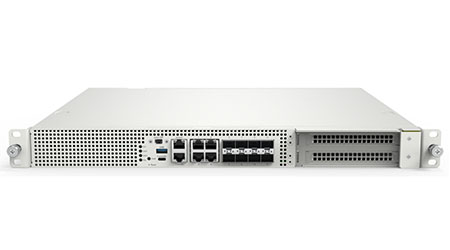

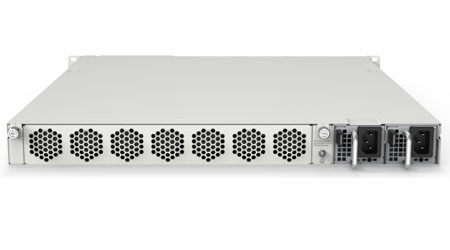

Silicom Tenerife Networking Appliance

Tenerife Networking Appliance Series

1U Network Appliance based on Intel® Xeon® 6 SoC HCC

  • Intel® Xeon® 6 SoC HCC Processor, FCBGA 77.5mm x 50 mm, TDP 125W-235W
  • Up to 4 channels DDR5, up to 2 DIMMS/ Channel, DDR5 speeds 4800-6400 MT/s
  • Ethernet/ SOC/ Up to 200Gbps: Up to 8x 25/10GbE, front IO connectivity
  • Ethernet/ 4x 10GbE port copper, front IO connectivity
  • Intel QAT/SOC Gen 5.
    • Crypto up 200GB
    • Compression (up to 80GB)
    • Decompression (up to 160GB)
  • 2x PCIe x16 PCIe 5.0 Full-Height, Full length (FHFL) front IO connectivity
  • Supports a Dual x4 PCIe NVMe
  • Redundant 1+1 1100W slim AC Power Supplies, RPS Slim Max 54.5mm
  • 1x USB2.0 front-panel I/O ports
  • 1x USB3.0 Internal
  • BMC Management
  • TPM support for Secure Boot
  • 1U/ 19’’/ 430mm
  • Slide Rails Rackmount kit

Tenerife Networking Appliance Series

1U Network Appliance based on Intel® Xeon® 6 SoC HCC

General Technical Specifications

Form Factor
  • 1U/1S, Rackmount, short depth, ≤430mm
CPU
  • 1 x Intel® Xeon® 6 SoC HCC
  • Processor, up to 42C
  • TDP up to 235W
  • FCBGA 77.5 mm x 50 mm
PCIe
  • 2 x FH/FL PCIe Gen 5.0 x16 slot, Full-Height ¾-Length, 75W
  • Support for an additional 75W for one of the PCIe add-in cards by 12V AUX power connector.
Memory
  • Up to 8 DDR5 (Gen5) DIMMs, up to 4 channels
  • Up to 2DIMMs per channel
  • Speed 1DPC 6400MT/s, 2DPC 5200MT/s,
  • Max. 96GB/DIMM, (Maximum 768GB)
Networking
  • CPU/SoC LAN 8x 25GbE SFP28
  • 4x 10GbE RJ45, Intel® E610-XAT2- with NCSI connection to BMC
Storage
  • 2x NVMe x4 2242/2280 SSD
Ethernet Controller
  • 2x Intel E610-XAT2 (Dual Port 10G)
BMC
  • AST2600
PFR
  • AST1060 Service Processor
TPM
  • TPM 2.0, Infineon SLB9672
Console
  • RJ45 Cisco format
  • USB Type C
Ethernet Management
  • 1GbE, RJ45, RT8211
  • 1GbE, RJ45, TI MAX3243
Display
  • Mini-DP video display port
USB
  • USB3.0 type A Host
Buttons
  • 1x momentary Power button
  • 1x recessed Reset button
Telemetry
  • Voltage monitoring via BMC
  • Temperature monitoring via BMC
  • Input power monitoring via BMC
System LEDs
  • Front Panel system Status LEDs: System/Storage/PSU
LTE
  • Optional via M.2
WiFi
  • Optional via M.2
Networking LEDs Two LEDs per networking port:

  • Link Leds (right):
    • Full speed – Green
    • Link not at full speed – Amber
    • No Link – OFF



  • ACT Led (left, looking at the system)
    • Blinks on activity
Debug
  • JTAG Support for single-chain scan for all JTAG components.
  • ICE Debugger for Aspeed BMC
Power Supply
  • Redundant 1+1, 90-230VAC 1100AC slim Power Supply
Fans
  • Support for 6+1 fans at the rear, easy replacement, 7th fan for redundancy
Environmental
  • Standard:  0°C – 40°C, 3000ft, 90% humidity 
  • Extended: -20°C – 55°C, 3000ft, 90% humidity
Dimensions
  • 1U, 438 x 430 x 43.9mm (W x D x H)

Tenerife Networking Appliance Series

1U Network Appliance based on Intel® Xeon® 6 SoC HCC

P/N

Description

90500-0200-G00 Tenerife/42C/128GBDDR4/480GBNVMe / Network Edge Server
90500-0200-G01 Tenerife/38C/128GBDDR4/480GBNVMe/ Network Edge Server
90500-0200-G02 Tenerife/24C/128GB/480GB/Server/ Network Edge Server
