Intel Atom® C2000 Processor x86 Network Board with 4 or 6 RJ45 GbE Ports

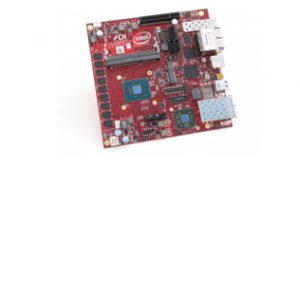

silicom rcc ve network board

Silicom’s RCC-VE is a low cost Mini-IXT edge device based on the Intel Atom® C2000 Processor for OEMs taking intelligent, virtualized CPE, security, small cell, or other edge products to market.

With the support of the Intel Edge Cloud SDK, RCC-VE offers a comprehensive environment for rapid development of innovative virtualized applications and services at the network edge with reduced time to market.

RCC-VE Network Board

Intel Atom® C2000 Processor x86 Network Board with 4 or 6 RJ45 GbE Ports

Key Features

  • Intel Atom® C2000 Processor (2758) Board for NFV Edge, CPE, Wireless
  • Mini-ITX Form Factor (170x170mm)
  • 6x Intel 1Gb Ethernet
  • 2x mPCIe
  • mSATA
  • eMMC flash storage on board
  • Robust and Low Cost, Rapid OEM Customization

General Technical Specifications

Form Factor Mini-ITX 170x170mm
CPU Intel Atom® C2358 Processor (2x 1.7 GHz, 1MB cache, 7W, QuickAssist, AES-NI)
Intel Atom® C2558 Processor (4x 2.4 GHz, 2MB cache, 15W, QuickAssist, AES-NI)
Intel Atom® C2758 Processor (8x 2.4 GHz, 2MB cache, 20W, QuickAssist, AES-NI)
DRAM 2GB, 4GB, 8GB or 16GB DDR3L up to 1600MT/s, Memory down (not user expandable), optional ECC
Ethernet 2x RJ45 via Intel i211 + 4x RJ45 via Intel i354 on-chip (All SKUs except VE-xxx1)
2x RJ45 via Intel i211 + 4x SFP via Intel i354 on-chip (VE-xxx1 only)
Storage eMMC on-board: 4, 8, 16, 32, or 64GB
mSATA slot for expansion
I/O Connectors USB 2.0 host (2x)
Up to 2x SATA3
Up to 3x SATA2
MiniPCI Express 2x (1x with micro-SIM slot) (Not present on VE-xxx1 SKUs)
Console Serial over Mini-USB
Management On-board IPMI + NC-SI based board management controller (VE-xxx1 only)
Boot Loader CoreBoot / SeaBIOS
Power 12VDC via 2.5mm coaxial plug
Single ATX power input (VE-4860 and VE-8860)
Dual redundant 12V power inputs with automatic on-board failover switching (VE-xxx1 only)
20W max for board only, 40W including max peripheral power
Temperature Fanless operating temperature: 0-65C (2-core), 0-45C (4-core)
Fansink required for 8-core CPUs
Storage: -20-85C
Certifications FCC Part 15 Class B
CE Class B
IC Class A
IEC-60950
RoHS/WEEE

RCC-VE Network Board

Intel Atom® C2000 Processor x86 Network Board with 4 or 6 RJ45 GbE Ports

P/N

Description

80300-0095-G02 – C2358 CPU (2x 1.7 GHz + QuickAssist, AES-NI)
– 4GB DDR3L
– 4x Gb Ethernet RJ-45
– 2x mPCIe
– 4GB eMMC
– Mini-USB console
– mSATA
– 2x USB 2.0 host
– 2.5mm power input jack
80300-0095-G13 – C2358 CPU (2x 1.7 GHz + QuickAssist, AES-NI)
– 4GB DDR3L
– 4x Gb Ethernet RJ-45
– 2x mPCIe
– 32GB eMMC
– Mini-USB console
– mSATA
– 2x USB 2.0 host
– 2.5mm power input jack
80300-0095-G03 – C2558 CPU (4x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L
– 6x Intel Gb Ethernet RJ-45
– 2x mPCIe
– 32GB eMMC
– Mini-USB console
– mSATA
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– ATX power input connector
80300-0095-G08 – C2558 CPU (4x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L
– 6x Intel Gb Ethernet RJ-45
– 2x mPCIe
– 32GB eMMC
– Mini-USB console
– mSATA
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– 2.5mm power input jack
80300-0095-G04 – C2758 CPU (8x 2.4 GHz + QuickAssist, AES-NI)
– 8GB DDR3L
– 6x Intel Gb Ethernet RJ-45
– 2x mPCIe
– 64GB eMMC
– Mini-USB console
– mSATA
– 2x SATA3
– 2x USB 2.0 host
– Fan controller
– ATX power input connector
