Industrial Ibiza Edge Network Appliance

Rugged Fanless Industrial / Automotive Universal CPE Based on Intel® Atom® x7000RE

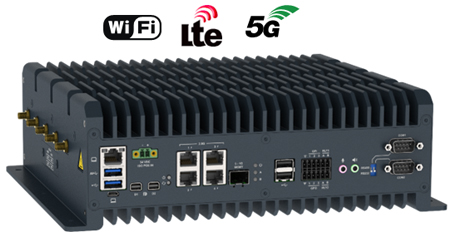

Industrial Ibiza Edge Networking Appliances Automotive

Silicom’s Industrial Ibiza series based on the Intel® Atom® x7000RE processor (Amston Lake) is a ruggedized, fanless uCPE platform designed to address harsh industrial and automotive environments. The platform provides a flexible feature set which allows it to scale and be configured for the specific use case.

Support for 2, 4, or 8 CPU cores with internal GPU for AI acceleration. Memory support up to 32GB of LPDDR5. Ethernet connectivity includes 2.5GbE with optional support for PoE++ (60W per port) and 1GbE RJ45 or SFP. Optional wireless support for up to three 4G LTE/ 5G Sub6 cellular cards and Wi-Fi.

Industrial Ibiza adds a wide array of I/O and power options specific to the industrial and automotive markets. These features including selectable RS-232/485 COM ports, digital GPIO, alarm contacts (relays), audio, and CAN bus.

Multiple wide-range DC power input options are available to support 12, 24, or 48 VDC site power and automotive 12 or 24 VDC power. All industrial I/O and power inputs are isolated and heavily protected against dangerous lightning surge events.

A Lights-Out Management (LOM) processor can optionally be included for remote management of the uCPE and Intel host CPU. The LOM has access to the 1G copper/fiber port, as well as an optional dedicated LTE uplink.

The rugged, fanless metal enclosure is designed for rough mechanical shock events, high vibration conditions, and wide temperature range environments.

Industrial Ibiza Edge Network Appliance

Rugged Fanless Industrial / Automotive Universal CPE Based on Intel® Atom® x7000RE

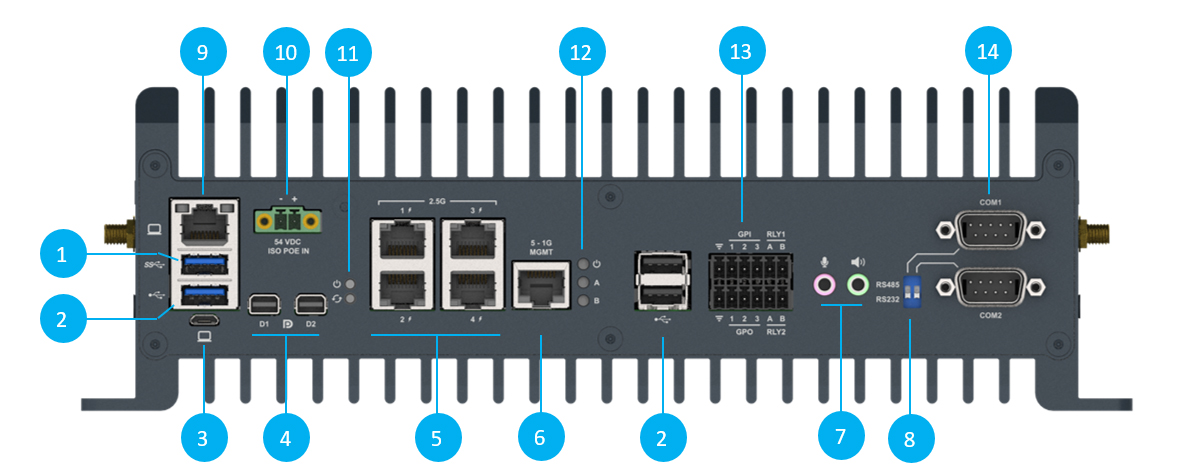

Front Panel Features

Port	Description	Port	Description
1	USB 3.0	8	COM port mode switches
2	USB 2.0	9	Console: Cisco RJ-45
3	Console: micro-USB	10	PoE power input
4	D1-D2: Mini-DisplayPort	11	Pushbuttons
5	Ports 1-4: 2.5G Ethernet	12	LEDs
6	Port 5: 1G Ethernet	13	GPIO / alarm contacts
7	Audio: mic in/line out	14	COM 1-2: RS-232 / 485

Ports 1-4 can optionally have PoE++ power output (SKU-dependent)
Port 5 can be RJ-45 or SFP (SU-dependent). Optional management access (LOM) on port 5
Up to 8x SIM card slots located on the enclosure sides (not shown)
Mini-DisplayPort outputs support up to 4k video resolution at 60 Hz

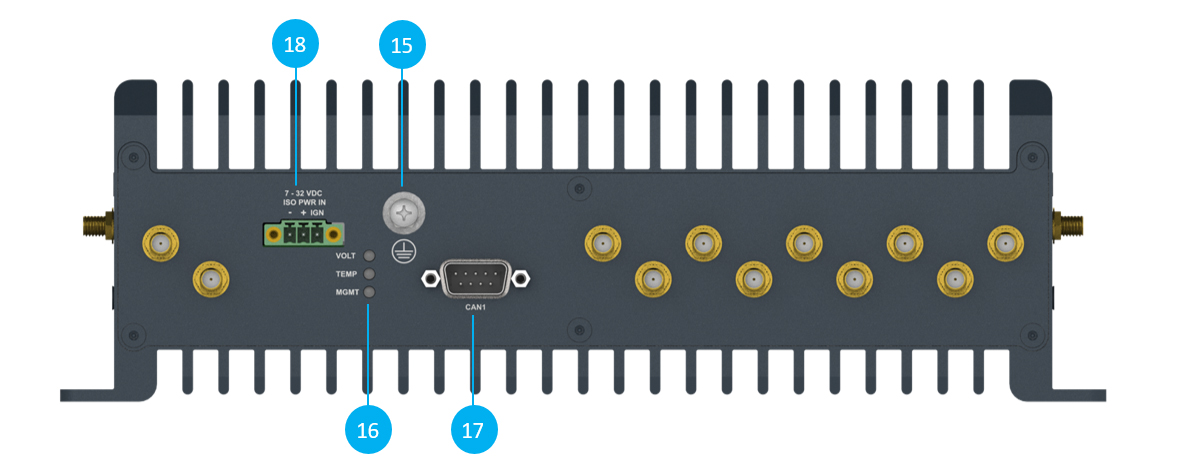

Rear Panel Features – Dual Redundant Mains Power Inputs or Single Automotive Power Input

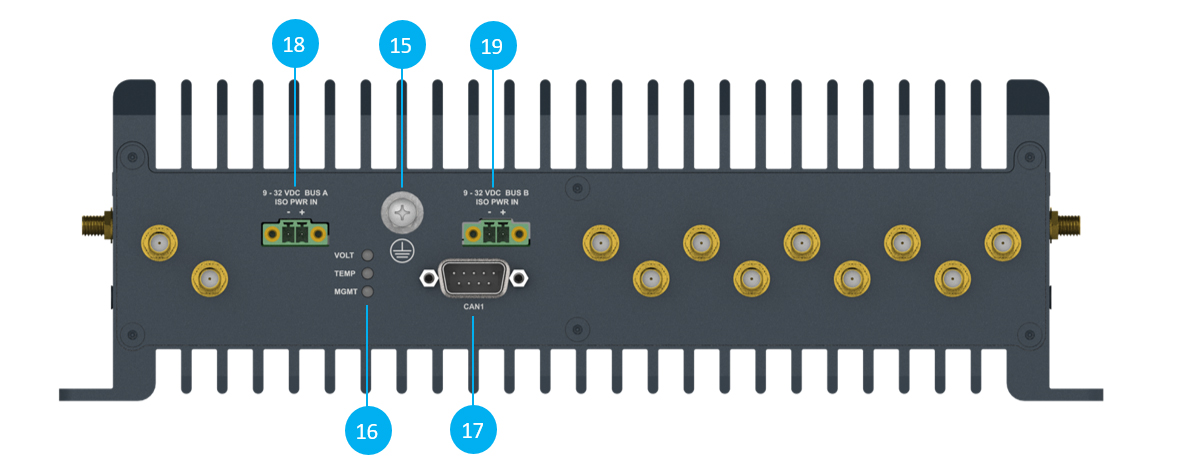

Rear Panel Features

Port	Description	Port	Description
15	Chassis/earth ground	18	Mains power input 1
16	LEDs	19	Mains power input 2
17	CAN bus

Rear Panel Features Industrial Edge Networking Appliance

Dual mains power inputs 1 and 2 are redundant
Automotive mains power input includes third ignition sense pin

Industrial Ibiza Edge Network Appliance

Rugged Fanless Industrial / Automotive Universal CPE Based on Intel® Atom® x7000RE

Standard uCPE Features
CPU	2, 4, and 8 core Intel® Atom® x7000RE (Amston Lake industrial) Built-in GPU for AI acceleration
Memory	LPDDR5-4800 memory down, 4 to 32 GB total w/ECC
Storage	1x eMMC HS400 v5.1 SSD down Optional NVMe SSD card(s)*
Ethernet	1x 1 Gbps copper RJ-45/fiber SFP port (BOM option) 4x 2.5 Gbps RJ-45 ports
Power over Ethernet	Optional PoE++ (max 60W/port) on 2.5 Gbps RJ-45 ports
WLAN	Optional Wi-Fi AP/Client card, dual-band / dual-concurrent (DBDC)
WWAN	Optional up to 3x 4G LTE radio cards, dual SIM slots per card Optional up to 2x 5G sub-6 radio cards, dual SIM slots per card* Dual uSIM per slot or optional soldered down eSIM
Display	Optional 2x mini-DisplayPort up to 4K resolution at 60 Hz
Local access	Cisco RJ-45 and micro-USB console port (auto-detect) 1x USB-A 3.2 gen1 host port (5 Gbps) 2x USB-A 2.0 host port (480 Mbps)
Security (software)	TPM 2.0 Optional Intel® Secure Boot Optional Intel® Boot Guard Optional Verified Boot
Buttons	1x protruding button, programmable function and filter time 1x recessed button, programmable function and filter time
LED	3x front panel multicolor RGBA LED’s, software configurable Management (LOM) LED
BIOS	Embedded Slim Bootloader UEFI
Management	Optional Lights-Out Management (LOM) processor Network uplink via wired 1 Gbps RJ-45/SFP port and/or dedicated wireless LTE card Telemetry, host CPU ACPI control, Serial over LAN (SoL), Virtual Media
Telemetry	Voltage monitoring Temperature monitoring Input power monitoring Ignition sense monitoring (automotive power input SKUs)

Each optional NVMe SSD card occupies 1x M.2 card slot (shared with radio cards)
Thermally limited to 2x 5G cards, even though there are 3x M.2 slots with 5G support

Additional Industrial / Automotive Features
Audio In/Out	1x 3.5 mm jack for microphone input 1x 3.5 mm jack for line-out (preamp)
CAN Bus	1x DB9 (M) port 1x CAN 2.0B/CAN FD node via onboard controller/transceiver Max speed 1 Mbps (CAN 2.0B), 5 Mbps (CAN FD)
COM Ports	2x DB9 (M) ports Individually configurable RS-232 mode or RS-485 mode via front panel DIP switches (no BIOS/software manual settings required)
GPIO	3x digital TTL inputs (max 35 VDC) 3x digital OD outputs (external pullup max 30 VDC, sink current max 140 mA)
Alarm Contacts (relays)	2x sets of Normally Open (NO) relay contacts 2 A rating @ 250 VAC or 28 VDC, resistive load
Accelerometer	3-axis monolithic silicon accelerometer
LED	Fault LEDs (over/under temperature, over/under mains voltage input)

Power, Physical, Environmental
Mains Power Inputs (industrial redundant)	SKU option: 9 to 32 VDC in, bus A and bus B (separate 2-pin terminal blocks) SKU option: 20 to 60 VDC in, bus A and bus B (separate 2-pin terminal blocks)
Mains Power Input (automotive)	SKU option: 7 to 32 VDC in (3-pin terminal block with ignition sense pin)
PoE Power Input	SKU option: 54 VDC in (2-pin terminal block separate from mains inputs)
Security (physical)	Tamper-resistant external enclosure screws Tamper detection (intruder switch) Tamper detection (accelerometer)
Cooling	Fanless
Environmental	-40 to +70C operating temperature 10 to 95% non-condensing operating humidity
Mounting options	Wall mount: Integral part of uCPE enclosure (side flanges) DIN rail: Separate accessory kit
Enclosure IP Rating	IP51: Dust protected, vertically dripping water
Unit Dimensions	291 x 243 x 90 mm (W x D x H) including mounting flanges

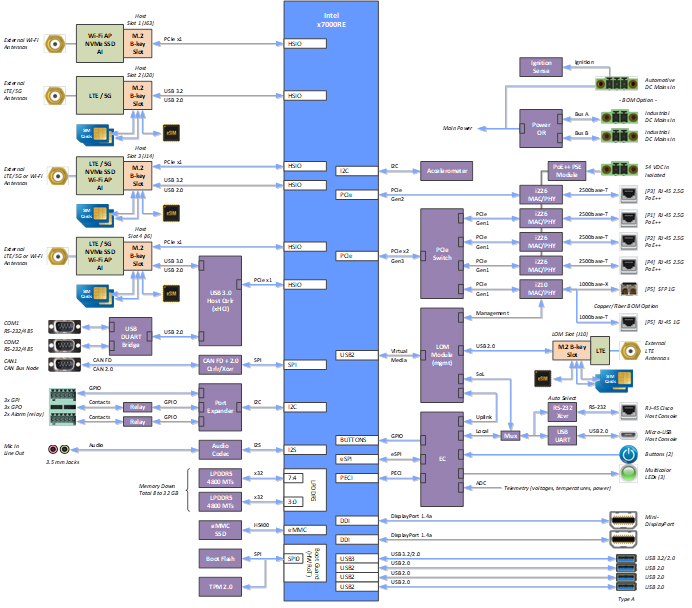

Block Diagram

Block Diagram Ibiza Edge Networking Appliance

There are 3x M.2 slots with 5G support, however the design is thermally limited to 2x 5G cards
Linux platform driver is available for I/O support
uCPE features (CPU, memory, I/O, etc.) are configurable and customizable at customer request.
OEM-specific SKUs, preloaded OS/application images, and custom branding options are available.
