Edge Networking Solutions

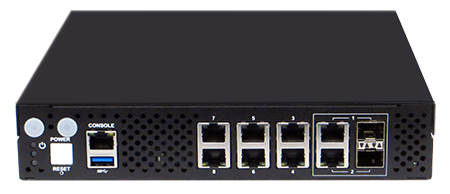

uCPE Madrid Desktop

uCPE Based on Intel Atom® C3000 Processor

FWA Network Edge Device

Silicom’s uCPE are based on the Intel Atom® C3000 Processor product line is a highly flexible network edge device that brings the agility of modular LAN, WAN, management, and compute to cost-sensitive applications in SD-WAN, uCPE, security, small cell, and IoT. The Madrid platform has two form factors: Desktop and 1U. The 1U support PCIe add in card.


Use Cases:

  • Fixed Wireless Access (FWA)
  • Secure Access Service Edge (SASE)
  • WAN Edge gateway

uCPE Madrid Desktop

uCPE Based on Intel Atom® C3000 Processor

General Technical Specifications – Madrid uCPE Desktop Specification

CPUIntel Atom® C3958 Processor/16C/2.0 GHz/TDP 31W
Intel Atom® C3858 Processor/12C/2.0 GHz/TDP 25W
Intel Atom® C3758 Processor/8C/2.2 GHz/TDP 25W
Intel Atom® C3558 Processor/4C/2.2 GHz/TDP 16W
Intel Atom® C3338 Processor/2C/1.5 GHz/TDP 8.5W
BIOS FlashSPI – Dual redundant
Operating SystemLinux
MemoryTwo Channels, Memory Down, SODIMM, Up to 32GB, ECC Support, 2400 MTs
StorageSoldered down eMMC,
M.2 M-Key SATA (supports for 2230/42/60/80), J13
M.2 B-Key SATA or PCIe x1G3( HSIO config) / USB2 and USB3 (support for 2230/42/60/80), J22
1xSATA for 2.5” SSD/HDD: J17
1xSATA DOM ( SATA DOM supports +5V): J16
Ethernet portsUp to 8 ports:
2 x1GbE RJ45 x via C3000 through Marvell 88E1514P,
4x 1GbE RJ45 via i350AM4 (with optionaal +2x1GbE (POE+), or 2x 1GbE RJ45 w/ i350AM2 no POE+.
2x 1GbE Combo (UTP or SFP), 2x via C3000 through Marvell 88E1543, SFP slots support 3W each.
Supports for SR-IOV
ConsoleRS232 RJ45 (Cisco pinout) on front panel
USB 3.01x USB 3.0 on front panel
mPCIe2x mini PCIe expansion slots
PCIe ExpansionNot supported
LTEmini-PCIe Slot. PCIe x1G3 or USB 3.0 and USB 2.0. Externally accessible SIM slot on CS/ PCB. J9
M.2 LTE Slot (B-Key). USB 3.0 USB 2.0 Externally accessible SIM sloton PS/ PCB J30
WiFiSupport for 2x mini-PCIe slots which supports simultaneous dual-band
ButtonsReset Button (programmable through 8051 MCU)
Short tap (<7 seconds) will cause platform reset.
Long tap (>7 seconds) will be used for resetting to defaults.
Power Button (programmable through 8051 MCU)
Very short tap filter (< 2 seconds) – tap shorter than 2 second will be filtered
Short tap (>2 seconds ) – initiate graceful shutdown to host CPU
Long tap (>13 seconds) – hard shutdown for immediate power off
LED’sTri-color Power LED
Tri-color Status LED (programmable)
LED’s integrated in RJ45’s
Other HardwareBattery for RTC
Programmable FAN controller
Form FactorDesktop Form Factor, (WxDxH) = 222x241x44mm
Rack Mount option
Wall Mount option
OEM branding option
Power12V@90W External Power Adapter with locking connector.
Optionional addition 12V@90W External Power Adapter with locking connector for redundency.
Optional: 54V@65W External Power Adapter with locking connector for POE+ ports
Optional: Dying Gasp
CoolingNumber of Fans TBD, Design supports 2 FAN
Sensors/MonitorsThermal protection
Critical Error Detection
Voltage monitors
Current protection
Operating Temperature0°C – 40°C
Storage Temperature-20°C – 70°C
RegulationEC Class A
FCC Class A
Compliance with European directives for EMC, Low Voltage, RoHS and WEEE
EMC-Compliance and test report for ETSI ES 201 468 Level2, EN55022, EN55024, EN 300 386
Compliance and test report for IUT-K21 enhanced
Safety: compliance and test report for EN 60950-1
* According to Telcordia SR-332 Issue 2. Environmental condition – GB (Ground, Fixed, and Controlled). Ambient temperature 40°C

uCPE Madrid Desktop

uCPE Based on Intel Atom® C3000 Processor

uCPE Desktop






90500-0151-G03uCPE, Desktop/C3758(8C)/16GB DDR4 w/ECC/ 128GB M.2/6x1GbEIA3001IA3001.01w/o Dying Gasp, including +12V Power supply
90500-0151-G01uCPE, Desktop/ C3558(4C)/8GB DDR4 w/ECC/ 64GB EMMC/6x1GbEIA3001IA3001.02w/o Dying Gasp, including +12V Power supply
90500-0151-G04uCPE, Desktop/C3338(2C)/4GB DDR4 w/ECC/ 32GB EMMC / 6x1GbEIA3001IA3001.03w/o Dying Gasp, including +12V Power supply
90500-0151-G14uCPE, Desktop/C3338(2C)/ 4GB DDR4 w/ECC/32GB M.2 /8x1Gb (2- POE ports)IA3001IA3001.04w/o Dying Gasp, including +12V Power supply, including +54V Power supply
