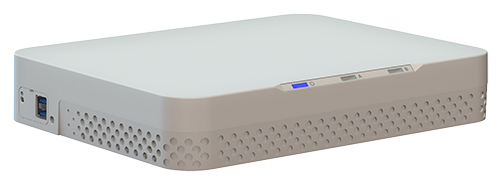

Cordoba Edge Gateway CPE

Compact Intel® Atom® C3000-Based Universal CPE for SD-WAN and SD-Branch Applications

Maximizing Site Installation Flexibility with Silicom’s Cordoba Series and Intel® Atom® C3000 Processor

Silicom’s Cordoba series based on the Intel® Atom® C3000 processor replaces traditional purpose-built CPE hardware with a wide array of wired and wireless WAN options for maximum site installation flexibility while still maintaining a small desktop footprint and optimum price point.

LAN connectivity includes dual-band 802.11ax Wi-Fi 6 with internal antennas, as well as 2.5 Gbps RJ-45 ports supporting external 802.11ax access points at full bandwidth.

WAN connectivity includes 1 Gbps auto media copper/fiber ports to align with site-specific needs, 10 Gbps ports supporting fiber Ethernet and xgsPON installations, single or dual 4G LTE uplinks, or 5G sub-6 uplink.

Maximize Performance and Flexibility with Silicom’s Multi-WAN/LAN Options and Intel® CPU Virtualization Technology for SD-WAN and SD-Branch

Multiple WAN and LAN options, combined with multicore Intel® CPU Virtualization Technology (Intel® VT), enable flexible and powerful SD-WAN and SD-Branch solutions. Optional Intel® QuickAssist Technology (Intel® QAT) acceleration offloads application software, making integrated security features practical while minimizing CPU footprint.

Use Cases:

Fixed Wireless Access (FWA)
Secure Access Service Edge (SASE)
WAN Edge gateway

Cordoba Edge Gateway CPE

Compact Intel® Atom® C3000-Based Universal CPE for SD-WAN and SD-Branch Applications

Scalable performance with CPU options (2 – 16 cores) and memory options (4 – 32 GB)
Native 2.5G copper ports and 10G fiber ports
Native 1G copper/fiber combo ports (auto-detect media type)
Support for single/dual 4G or single 5G cellular cards
Support for Wi-Fi 6 DBDC AP card
Support for high performance AI cards

Cordoba Edge Gateway CPE

Compact Intel® Atom® C3000-Based Universal CPE for SD-WAN and SD-Branch Applications

Feature	Description
CPU	2, 4, and 8 core Intel® Atom® C3000, optional QAT
Memory	1-channel, dual-rank DDR4 down, 2 to 32 GB total, optional ECC
Storage	Onboard eMMC SSD 8 GB to 256 GB Optional NVMe SSD card*
WAN	Optional up to 2x 4G LTE radio cards, external antennas, dual SIM slots per card Optional 5G sub-6 radio card, external antennas, dual SIM slots 2x auto media detect 1 Gbps copper RJ-45/fiber SFP ports 2x 10 Gbps ports for PON or SFP+ transceivers*
LAN	Optional 802.11ax Wi-Fi 6 AP, dual-band / dual-concurrent, internal antennas 4x 2.5 Gbps RJ-45 ports
Local access	Cisco RJ-45 and micro-USB console port (auto-detect) 2x USB-A 3.0 host ports
Security	TPM 2.0 Optional Secure Boot Optional Hardware Root of Trust
Buttons	Protruding button, default CPU power button (programmable) Recessed button, default CPU reset button (programmable)
LED	3x front panel tricolor RGB LED’s, user configurable
Bootloader	Embedded Blinkboot UEFI
Power input	+12 VDC locking barrel jack, external desktop PSU, regional AC cord options
Environmental	0 to +40C operating temperature
Mounting options	Default desktop feet; rackmount kit and wall-mount kit available
Dimensions	256 x 200 x 44 mm W x D x H (10.1 x 7.9 x 1.7 in)
Environmental:	ESTI EN 300 019-2-1 V2.3.1 (2017-11) ESTI EN 300 019-2-2 V2.4.1 (2017-11) ESTI EN 300 019-2-3 V2.5.1 (2020-10) IEC 60068-2-41:76 +A1:83 TIA-968-A:2002 ASTM D5276-19 ASTM D5445-21
Acoustic:	ETSI EN 300 753 V1.3.1
RoHS:	EN 50581: 2012
EMC:	FCC 47CFR part 15: 2021, subpart B, Class B ICES-003: 2020 Issue 7, Class B ICES003 CISPR 32: 2015 + A1(19), Class B CISPR 35: 2016 VCCI-CISPR 32: 2016, Class B AS/NZS CISPR 32: 2015+A1(20), Class B EN 55032: 2015 + A1(20) + A11(20), Class B EN 55035: 2017 + A11(20) EN 300 386: V2.1.1: 2016, equipment operating in locations other than telecommunication centers, Class B EN 300 386: V1.6.1: 2012, equipment operating in locations other than telecommunication centers, Class B EN 301 489-52: V1.2.1: 2021, Class B EN 301 489-17: V1.2.1: 2020, Class B EN 301 489-1: V2.2.3: 2019, Class B EN 301 489-17: V3.2.4 (2020-09) Class B EN 61000-3-3 : 2013 + A1(19)/A2:2021 EN 61000-3-2 : 2019 +A1(21) BS EN55032 BS EN55035
Radio (Wi-Fi – AX210NGW):	EN 300 440 V2.2.1 (2018-07) EN 301 893 V2.1.1 (2017-05) EN 300 328 V2.2.2 (2019-07) AS/NZS 4268:2017 + Amendment 1_2021 EN IEC 62311: 2020 BS EN IEC 62311: 2020 AS/NXS 2772.2 :2016_A1_2018
Safety:	IEC 62368-1:2014 (Second Edition) IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013 CSA C22.2 NO. 62368-1-14, 2nd Ed., Issue Date: 2014-12-01 UL 62368-1, 2nd Ed., Issue Date: 2014-12-01
Mobile Carriers (LTE – Quectel EM06-A):	PTCRB AT&T
GMA (Global Market Access – Non-Radio):	RCM (Australia) PSE, VCCI (Japan) BSMI(Taiwan) UKCA KC (S. Korea) BIS (India)

* Optional NVMe SSD card occupies 1x radio card slot
* 10G PON/SFP+ available only on 4 and 8-core SKU’s

Cordoba Edge Gateway CPE

Compact Intel® Atom® C3000-Based Universal CPE for SD-WAN and SD-Branch Applications

P/N	RMN	RTN	Cooling	Options
80500-0214-G02-SL00A 8-core Base Model	IA3003	IA3003.02	Fan	Intel® Atom® C3758, 8-core @ 2.2 GHz w/QAT 16 GB memory with ECC 128 GB NVMe SSD WAN: 2x 1 Gbps auto media 2x 10 Gbps SFP+ cages (can also be PON) LAN: 4x 2.5 Gbps RJ-45 Preloaded Ubuntu Linux
80500-0214-G02-SL01A 8-core LTE / Wi-Fi 6	IA3003	IA3003.02A	Fan	Intel® Atom® C3758, 8-core @ 2.2 GHz w/QAT 16 GB memory with ECC 128 GB NVMe SSD WAN: 2x 1 Gbps auto media 2x 10 Gbps SFP+ cages (can also be PON) WWAN: 1x 4G LTE Cat12 radio LAN: 4x 2.5 Gbps RJ-45 WLAN: 1x Wi-Fi 6 AP radio (DB/DC) Preloaded Ubuntu Linux
80500-0214-G03-SL00A 4-core Base Model	IA3003	IA3003.03	Fanless	Intel® Atom® C3558, 4-core @ 2.2 GHz w/QAT 8 GB memory with ECC 64 GB eMMC SSD WAN: 2x 1 Gbps auto media 2x 10 Gbps SFP+ cages (can also be PON) LAN: 4x 2.5 Gbps RJ-45 Preloaded Ubuntu Linux
80500-0214-G03-SL01A 4-core LTE / Wi-Fi 6	IA3003	IA3003.03A	Fan	Intel® Atom® C3558, 4-core @ 2.2 GHz w/QAT 8 GB memory with ECC 64 GB eMMC SSD WAN: 2x 1 Gbps auto media 2x 10 Gbps SFP+ cages (can also be PON) WWAN: 1x 4G LTE Cat12 radio LAN: 4x 2.5 Gbps RJ-45 WLAN: 1x Wi-Fi 6 AP radio (DB/DC) Preloaded Ubuntu Linux
80500-0214-G05-SL00A 2-core Base Model	IA3003	IA3003.05	Fanless	Rackmount Intel® Atom® C3338R, 2-core @ 1.8 GHz w/QAT 4 GB memory with ECC 32 GB eMMC SSD WAN: 2x 1 Gbps auto media LAN: 4x 2.5 Gbps RJ-45 Preloaded Ubuntu Linuxkit
80500-0223-G00				Rackmount accessory kit
32800-0014-G01				Wall-mount accessory kit
