C2316 Processor based Entry-level customer premises equipment

Intel Atom® C2000 Processor based CPE

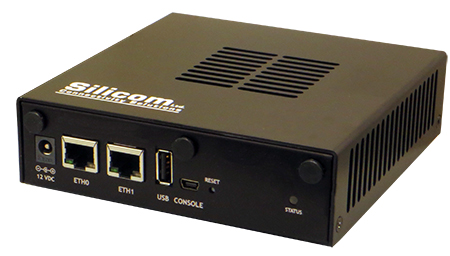

Silicom’s Intel Atom® C2000 Processor based CPE is a low cost Nano-ITX edge device based on the Intel® Atom™ C2000 for OEMs taking NFV-enabled CPE, security, small cell, or other edge products to market.

With the support of the Intel® Edge Cloud SDK, C2316 based CPE offers a comprehensive environment for rapid development of innovative virtualized applications and services at the network edge with reduced time to market.

C2316 Processor based Entry-level customer premises equipment

Intel Atom® C2000 Processor based CPE

Key Features:

  • Intel® Atom™ C2000 Processor Board for NFV Edge, CPE, Wireless
  • Fanless
  • mPCIe
  • eMMC Flash Storage On Board
  • 2x 1Gb Ethernet

C2316 Processor based Entry-level customer premises equipment

Intel Atom® C2000 Processor based CPE

General Technical Specifications

Form Factor Board: Nano-ITX 120x120mm
Enclosure: 134.5 x 138.0 x 44.0 mm
CPU Intel Atom® C2000 Processor (2316) (2 Core, 1.50GHz, 1MB Cache, 7W, QuickAssist, AES-NI)
DRAM 1GB, 2GB or 4GB DDR3L 1333MT/s, memory down (non-expandable)
Ethernet 2x 1Gb Ethernet RJ45 ports
Storage eMMC on-board 4GB to 64GB
I/O Connectors USB 2.0 host (1x)
MiniPCI Express full-length (with micro-SIM slot)
Console Serial over Mini-USB
Boot Loader CoreBoot / SeaBIOS
Power 12VDC via 2.5mm barrel style connector
Temperature Fanless Operating temperature: 0-40C
Storage -20 to 85C
Certifications FCC Part 15 Class B
CE Class B
IEC-60950
RoHS/WEEE

C2316 Processor based Entry-level customer premises equipment

Intel Atom® C2000 Processor based CPE

P/N

Description

80500-0118-G02 C2316 CPU, 2GB DDR3L, 8GB eMMC
80500-0118-G03 C2316 CPU, 4GB DDR3L, 64GB eMMC
