Armada 3700 Based CPE and Network Appliance

Armada 3700 Based CPE and Network Appliance

Silicom’s CPE and Network Appliance based on the Marvell Armada 3700 SoC is a low-cost yet feature rich network white box for OEMs taking CPE, NFV, security or wireless edge devices to market.

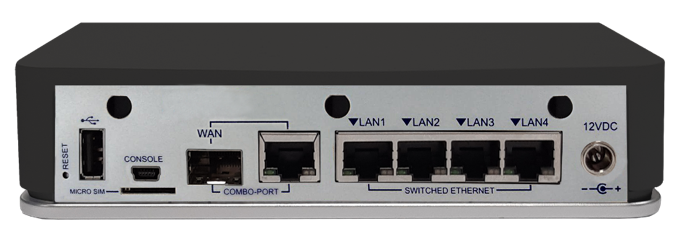

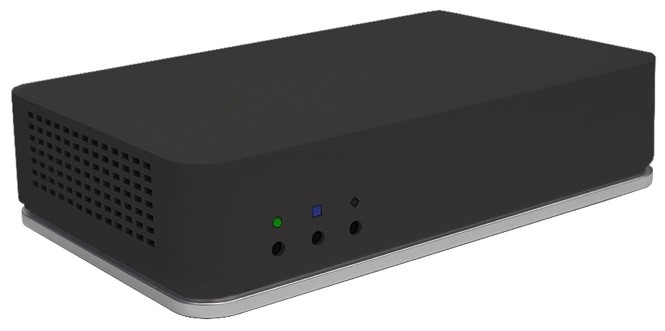

Silicom CPE Network Appliance

With a comprehensive open source software environment and built-in security offload capabilities, this appliance is an ideal platform for rapid deployment of innovative network edge applications and services with reduced time to market and distinct advantages in functionality, performance, and cost.

Armada 3700 Based CPE and Network Appliance

Armada 3700 Based CPE and Network Appliance

  • Marvell Armada 3700 Dual-Core 1.2 GHz SoC
  • Fanless Desktop
  • 1x 1GbE RJ45/SFP Combo and 4x 1GbE RJ45 Switched
  • M.2 Card option for Cellular or SSD
  • Mini-PCIe Card option for Wi-Fi
  • eMMC onboard
  • 1x USB2
  • 1x Console Mini-USB
  • Optional TPM
  • 1GB, 2GB, or 4GB DDR4
  • Ready for OEM branding and rapid mass productio





Armada 3700 Based CPE and Network Appliance

Armada 3700 Based CPE and Network Appliance

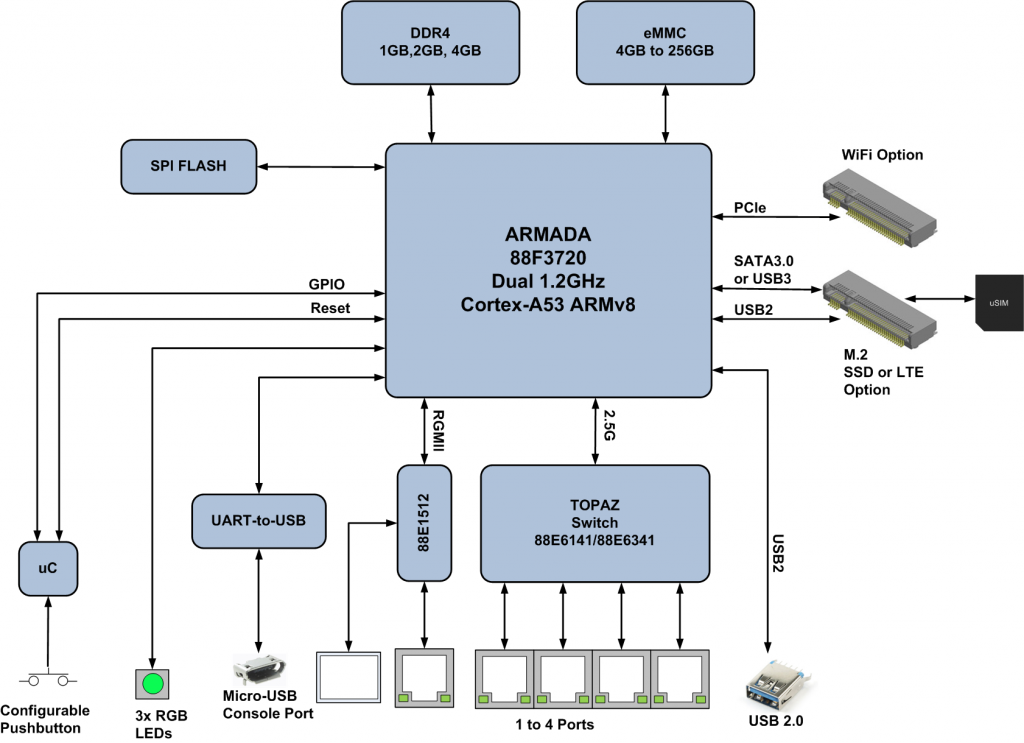

General Technical Specifications

CPU: Marvel Armada 3700 (88F3720) Dual Cortex-A53, ARMv8, 1.2GHz
Memory: 1GB, 2GB, or 4GB DDR4
Storage:
  • eMMC onboard (4GB to 256GB options)
  • M.2 SSD option
  • SPI Flash
Networking:
  • 1x 1GbE RJ45/SFP Auto-Detect Port via Marvell 88E1512
  • 4x 1GbE RJ45 Switched via Marvell 88E6141
Wireless:
  • M.2 cellular radio card slot with Micro-SIM slot
  • mPCIe Wi-Fi
I/O Interfaces:
  • 1x USB 2.0 port
  • Serial Console over mini-USB
Miscellaneous:
  • Programmable button (Reset or GPIO)
  • Three programmable RGB LED’s
  • RTC with Battery
  • Optional TPM
Form Factor:
  • Desktop Appliance (Fanless)
  • (WxDxH) = 172.5 x 108 x 44mm
Power:
  • 24W, 12VDC, External Power Adapter with Locking Connector
  • 100Vac ~ 240Vac 50/60Hz Input
Environmental:

Temperature:

  • 0°C – 45°C Operating
  • -20°C – 70°C Non-Operating

Humidity:

  • 5 – 90% Operating
  • 5 – 95% Non-Operating
Certifications

Emissions/Immunity

  • European standards EN55022, EN 61000-3-3, EN 610000-3-2, EN55024, CISPR 32
  • FCC Part 15 subpart B

Safety

  • IEC/UL 62368-1
  • CE Mark (Covered by above certification)

RoHS-6 (Pb-free) and REACH Compliant

Armada 3700 Based CPE and Network Appliance

Armada 3700 Based CPE and Network Appliance

P/N

Description

RMN:

Notes

80500-0205-G10

88F3720, 4GB DDR4, 16GB eMMC

MA3001 M.2 configured for LTE (not SSD)
