Burgos 2U Networking Appliance Series
2U Dual Socket Intel® Xeon® Gen5th/4th based Networking Appliance
Burgos is a High-performance 2U rackmount network security appliance, powered by Dual Sockets of the 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids), or by 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids). Burgos delivers optimized network traffic management and enhanced virtualized network security capabilities.
Burgos provides front connectivity, using 4x PCIe slot, thus providing the largest number of ports/networking standards (leveraging the wide offering of Silicom’s PCIe server adapters, including NICs, and Bypass NICs.
- 2U Dual Socket (2U 2S), Flexible Front IO network appliance
- Powered by the 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids), or by 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids)
- Delivers optimized network traffic management and enhanced virtualized network security capabilities.
- Using 4x PCIe slot, Burgos provides the largest number of ports/networking standards, by using Silicom’s PCIe server adapters, including NICs, and Bypass NICs
- Optimized to Network applications (uCPE, Security, SD-WAN, Load balancers, CDN, Bypass Appliances)
Burgos 2U Networking Appliance Series
2U Dual Socket Intel® Xeon® Gen5th/4th based Networking Appliance
- 2S 4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors (LGA4677 socket)
- Intel’s C741 chipset
- 2U Rackmount form factor
- 16x DIMM slots with DDR5 4800 memory support (8 DIMM slots per CPU)
- 2 PCIe Gen 5.0 x16 + 2 PCIe Gen 5.0 x8 slots
- 1 PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot

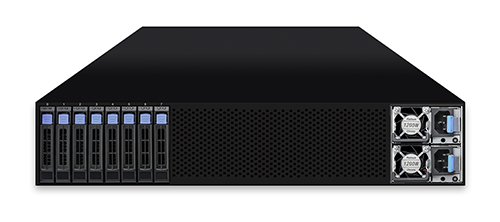

- 6x NVMe U.2 bays (rear)
- 2x NVMe M.2 (x4 PCIe) internal
- 1x dedicate 1000Base-T IPMI port
- AST2600 BMC with IPMI 2.0 & Redfish support
- Front panel network connectivity (using Silicom’s PCIe cards):
- 8x 50 GbE / SFP56
- 4x 100 GbE / QSFP28
- 1+1 PSU, 1200W
Burgos 2U Networking Appliance Series
2U Dual Socket Intel® Xeon® Gen5th/4th based Networking Appliance
General Technical Specifications |
|
| Form Factor | 2U Rackmount |
| Dimension (D x W x H) | 680 x 438.5 x 88mm |

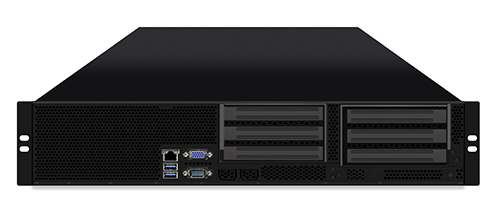

Front Panel- System |
|
| Buttons | 1x PWR / 1x Reset |
| LEDs | 1x PWR / 1x Reset |
| I/O Ports | 2x USB 3.0 1x COM port (DB-9) 1x VGA (D-Sub 15-pin) |
| Console | 1x RJ45 |
| Networking | 8x 50G/SFP56 4x 100G/QSFP28 |
Drive Bays |
|
| Q’ty / Type | 6x NVMe U.2 bays (rear) 2x NVMe M.2 (x4 PCIe) internal Note: For SKU without accessible hard drives bays, contact Silicom |
System Cooling Configuration |
|
| FAN | 4x fans, hot swap, internal |
Power Supply |
|
| Type | RPSU |
| Input Range | AC 100~240V/12~6A |
| Efficiency | 80 plus Platinum |
| Output Watts | 1200Watts (rear) |
| Redundancy | 1+1 |
Processor |
|
| Q’ty / Socket Type | 1x LGA4677 |
| Supported CPU Series | 4th / 5th Gen. Intel® Xeon Scalable Processors |
| Thermal Design Power wattage | 125-350W (TDP) – each CPU |
Chipset |
|
| PCH | Intel C741 |
Memory |
|
| Supported DIMM Qty | 8x + 8x DIMM slots |
| DIMM Type / Speed | RDDR5 4800 w/ ECC (1.1V), 1DPC / 3DS RDIMM DDR5 4800 w/ ECC (1.1V), 1DPC |
| Capacity | Up to 2,048GB RDIMM / 3DS RDIMM DDR5 4800 |
| Memory Channel | 8 Channels per CPU |
| Memory Voltage | 1.1V |
| Compatible DIMMs Examples | Samsung: 16GB: M321R2GA3BB0-CQKEG, 1.1V, 1Rx8, RDIMM ECC, RoHS 32GB: M321R4GA3BB0-CQKVG, 1.1V, RDIMM Reg/ECC, RoHS Micron: 16GB: MTC10F1084S1RC48BA1NGCC, 1.1V, 1R, Reg/ECC, RoHS 32GB: MTC20F1045S1RC48BA2NHCC, 1.1V, 1R, Reg/ECC, RoHS |
Expansion Slots |
|
| PCIe | 2x PCIe Gen.5 x16 slot – FHHL 2x PCIe Gen.5 x8 slot – FHHL 1x PCIe Gen.5 x4 slot – FHHL |
| OCP 3.0 | 1x PCIe Gen.5 x16 OCP 3.0 slot |
Networking |
|
| 1 GbE | 1x GbE dedicated for IPMI, Realtek RTL8211F (front) |
| 50 GbE | 8x 50 GbE SFP56, 2x Intel E830-CCAM1 (front), by Silicom standard PCIe cards |
| 100 GbE | 4x 100 GbE QSFP28, Intel E830-CCAM1 (front), by Silicom standard PCIe cards |
Storage |
|
| NVMe Connector (M.2) | 2x 2280/22110 (Internal, by PCIe 5.0 interface) |
| NVMe Connector (U.2) | 8x MCIO x4 (rear) |
Graphic |
|
| Connector type | D-Sub 15-pin |
| Resolution | Up to 1920×1200 |
| Chipset | Aspeed AST2600 |
Input / Output |
|
| USB | 2x USB3.0 ports (front) |
| COM | 1x DB-9 COM port (front) |
| VGA | 1x D-Sub 15-pin port (front) |
| RJ-45 | 1x GbE port dedicated for IPMI (front) |
| SFP56 | 8x 50 GbE (front), by Silicom standard PCIe cards |
| QSFP28 | 4x 100 GbE (front), by Silicom standard PCIe cards |
TPM (Optional) |
|
| TPM | Yes |
| Interface | SPI |
System Monitoring |
|
| Chipset | Aspeed AST2600 |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply |
| Temperature | Monitors temperature for CPU & memory & system environment |
| LED (On system front panel) | Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator |
| Other | Watchdog timer support |
Server Management |
|
| Onboard Chipset | Onboard Aspeed AST2600 |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
BIOS |
|
| Brand / ROM size | AMI / 64MB |
| Feature | Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.0 / ACPI sleeping states S0, S5 |
Operating System |
|
| Supported OS | Linux |
Regulations |
|
| FCC (SDoC) | Class A |
| CE (DoC) | Class A |
| VCCI | Class A |
| RCM | Class A |
| CB/LVD | Yes |
Operating Environment |
|
| Non-operating Temp. | – 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity | 90%, non-condensing at 35° C |
RoHS |
|
| RoHS 6/6 Complaint | Yes |
Burgos 2U Networking Appliance Series
2U Dual Socket Intel® Xeon® Gen5th/4th based Networking Appliance
P/N |
Description |
| Burgos 2U Networking Appliance Series | Universal CPE 2U Dual Socket Intel® Emerald Rapids based |
