TAPs
TAPSF-M
10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit

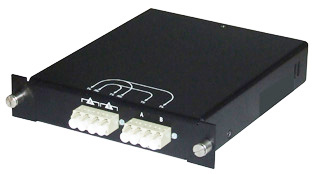

The Silicom TAPSF is external passive TAP for 10 /1 fiber Gigabit Ethernet networks.
The Silicom TAPSF captures both sides of the Network links and transmits a copy on to the monitor port, this feature enables full duplex monitoring of all packets transmitted between the Network ports.
The Silicom TAPSF does not require power; The Silicom TAPSF can be optionally installed in a rack mount frame.
TAPSF-M
10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit
- Supports Fiber Gigabit Ethernet (1000Base-SX)
- Supports Short Range Fiber 10 Gigabit Ethernet (10GBase-SR)
- Passive TAP enables full duplex monitoring for 10 /1 fiber Gigabit Ethernet networks
- Transparent to the network
- Does not require power
- No IP address is needed
- Optional 19-inch rack frame holds up to 3 taps
TAPSF-M
10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit
Fiber Ethernet General Technical Specifications: | |
| IEEE Standard / Network topology: | Fiber 10Gigabit Ethernet, 10Base-SR (850nM) Fiber Gigabit Ethernet, 1000Base-SX (850nM) |
| Fiber core: | Multimode fiber: 50uM |
| Insertion loss ratio: | -70/30: 70% – Network ports to Monitor port 30% – Network port to network port |
| Insertion loss: (Typical) | Network Port: 2.5 dB Monitor Port: 5.5dB |
| Insertion loss: (Measure) | Network Port: 3.25 dB Monitor Port: 5.0 dB |
General Technical Specifications | |
| Size: | x 120.5mm ( wide) x 148mm (depth) x 27.7mm (height) (4.744" x 5.827" x 1.07") |
| Weight | 610 gram (21.52 oz) |
| Operating Humidity: | 0%–90%, non-condensing |
| Operating Temperature: | 0°C – 50°C (32°F - 122°F) |
| Storage Temperature: | -20°C–65°C (-4°F–149°F) |
| EMC Certifications: | Class B |
| MTBF*: | > 50 years |
Figure: 2 - TAP Mode Functional Block Diagram
TAPSF-M
10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit
P/N | Description | Notes |
| TAPSF-M-R | 10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit | 50uM, Fiber core, splitter ratio 70/30 |
| TAPSF-M-64-R | 10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit | 50uM, Fiber core, splitter ratio 60/40 |
| TAPSF-M-55 | 10 /1 Gigabit (MM) Fiber TAP Stand Alone Unit | 50uM, Fiber core, splitter ratio 50/50 |
| RK-1U-3-PBSS | Rack mount frame for Silicom stand alone units | Optional for 19” / 1U frame mount |
 | ||
Note: Model P/N /-RoHS
-RoHS: RoHS Compliant / Lead free adapter.
1V2
