TAPSF-S

400/200/100/50/25/10/1 Gigabit (SM) Fiber TAP Stand Alone Unit

The Silicom TAPSF is external passive TAP for 400 / 200 / 100/ 50 /25 /10 /1 fiber Gigabit Ethernet networks. The Silicom TAPSF captures both sides of the Network links and transmits a copy on to the monitor port, this feature enables full duplex monitoring of all packets transmitted between the Network ports.

The Silicom TAPSF does not require power; The Silicom TAPSF can be optionally installed in a rack mount frame.

TAPSF-S

400/200/100/50/25/10/1 Gigabit (SM) Fiber TAP Stand Alone Unit

Supports 1Gbase-LX, 10Gbase-LR, 25Gbase-LR, 40Gbase-LR4, 50Gbase-LR, 100Gbase-LR4, 200Gbase-LR4 and 400Gbase-LR8
Passive TAP enables full duplex monitoring for 400 / 200 / 100 / 50 / 25 / 10 / 1 fiber Gigabit Ethernet networks.
Transparent to the network.
Does not require power.
No IP address is needed.
Optional 19-inch rack frame holds up to 3 taps.

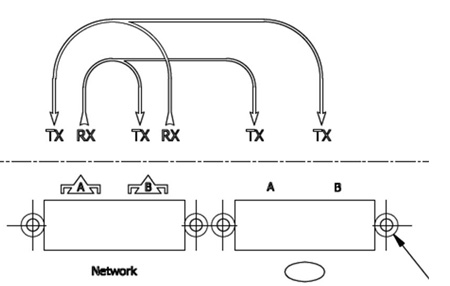

Figure: 1- TAPSF: Front panel and connections diagram

TAPSF-S

400/200/100/50/25/10/1 Gigabit (SM) Fiber TAP Stand Alone Unit

Fiber Ethernet General Technical Specifications
IEEE Standard / Network topology:	Fiber 1Gbase-LX, 10Gbase-LR, 25Gbase-LR, 40Gbase-LR4, 50Gbase-LR, 100Gbase-LR4, 200Gbase-LR4 and 400Gbase-LR8 (1310nM)
Fiber core:	Single-Mode fiber: 9um
Insertion loss ratio:	-70/30: 70% – Network ports to Monitor port 30% – Network port to network port
Insertion loss: (Typical)	Network Port: 1.8 dB Monitor Port: 5.8 dB
Insertion loss: (Measure)	Fabry-Perot laser: Network Port: 1.73 dB Monitor Port: 5.54 dB DFB laser: Network Port: 1.57 dB Monitor Port: 5.57dB
Size:	x 120.5SM ( wide) x 148SM (depth) x 27.7SM (height) (4..744″ x 5.827″ x 1.07″)
Weight:	610 gram (21.52 oz)
Operating Humidity:	0%–90%, non-condensing
Operating Temperature:	0°C – 50°C (32°F – 122°F)
Storage Temperature:	-20°C–65°C (-4°F–149°F)
EMC Certifications:	Class B
*MTBF:**	> 50 years

TAPSF-S

400/200/100/50/25/10/1 Gigabit (SM) Fiber TAP Stand Alone Unit

P/N	Description	Notes
TAPSF-S-R	400 / 200 / 100 / 50 / 25 / 10 / 1 Gigabit (SM) Fiber TAP Stand Alone Unit	9uM, Fiber core, splitter ratio 70/30
TAPSF-S-64-R	400 / 200 / 100 / 50 / 25 / 10 / 1 Gigabit (SM) Fiber TAP Stand Alone Unit	9uM, Fiber core, splitter ratio 60/40
TAPSF-S-55	400 / 200 / 100 / 50 / 25 / 10 / 1 Gigabit (SM) Fiber TAP Stand Alone Unit	9uM, Fiber core, splitter ratio 50/50
RK-1U-3-PBSS	Rack mount frame for Silicom stand alone units	Optional for 19” / 1U frame mount
