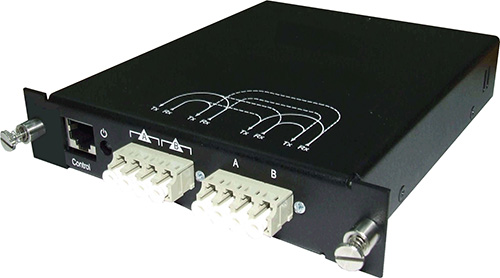

PBSSF-M50 Bypass Switch Stand Alone

10 /1 Gigabit (MM) Fiber Bypass Switch Stand Alone Unit

Silicom PBSSF-M50 is external Bypass switches for 10 /1 fiber Gigabit Ethernet networks. The Silicom Bypass switch protects from network failures and Network maintenance by ensuring network integrity during power loss. Silicom Bypass switch includes Network ports, Monitor ports and control port.

The Network ports are used to connect to Switch / Router Network connections. The Monitor ports are used for an in-line networking device.

The control port is used to control the mode of the Bypass switch. On power on, the mode of the Bypass switch is set to Normal, on power lose, the mode of the Bypass switch is set to Bypass.

Functional Description

In Normal mode, the Bypass switch diverts the data from the Network ports data to the Monitor ports.

Figure: 1 – Normal Mode Functional Block Diagram

BSSF-P1

In Bypass mode, the Network data traffic routed directly to the other Network portand the Monitor data traffic routed directly to the other Monitor port

Figure: 2 – Bypass Mode Functional Block Diagram

BSSF-P2-400

PBSSF-M50 Bypass Switch Stand Alone

10 /1 Gigabit (MM) Fiber Bypass Switch Stand Alone Unit

Bypass:

Bypass Ethernet ports on Power lose
Reliable Passive solution
High speed switching
Low insertions loss
Throughput not affected and no added delay

PBSSF-M50:

Supports Fiber Gigabit Ethernet (1000Base-SX)
Supports Short Range Fiber 10 Gigabit Ethernet (10GBase-SR)

PBSSF-M50 Bypass Switch Stand Alone

10 /1 Gigabit (MM) Fiber Bypass Switch Stand Alone Unit

Fiber Gigabit Ethernet General Technical Specifications - (1000BaseSX)
IEEE Standard / Network topology	Fiber Gigabit Ethernet, 1000Base-SX (850nM)
Cables and Operating distance	Multimode fiber: 550m at 50 um Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard
Insertion loss (Normal)	Typical: 0.97 dB Maximum: 1.8 dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.3+1.2+0.3=1.8dB) Minimum: 0.9dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.1+0.7+0.1=0.9dB)
Insertion Loss (Bypass)	Typical: 1.69 dB Maximum: 1.8 dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.3+1.2+0.3=1.8dB) Minimum: 0.9dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.1+0.7+0.1=0.9dB)
Fiber 10Gigabit Ethernet Technical Specifications - (10GBase-SR) Adapters
IEEE Standard / Network topology	Fiber Gigabit Ethernet, 10GBase-SR (850nM)
Data Transfer Rate	20Gbit/s in full duplex mode per port
Cables and Operating distance	Multimode fiber:50um 50um, 400MHz/Km 66m 50um, (OM2)500 MHz/Km 82m 50um, (OM3)2000MHz/Km 300m ** Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard
Insertion Loss (Normal)	Typical: 0.97 dB Maximum: 1.8 dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.3+1.2+0.3=1.8dB) Minimum: 0.9dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.1+0.7+0.1=0.9dB)
Insertion Loss (Bypass)	Typical: 1.69 dB Maximum: 1.8 dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.3+1.2+0.3=1.8dB) Minimum: 0.9dB (Sum of insertion losses: LC/LC+ fibers and optic switch+LC/LC=.0.1+0.7+0.1=0.9dB)
PBSSF-M50 : General Technical Specifications
Size	x 152mm x 120.5mm x 24mm (6" x 4.75" x 1")
Voltage	+5V
Weight	690 gram (24.4 oz)
Power Consumption	(0.184W) 40mA at 4.6V
Operating Humidity	0%–90%, non-condensing
Operating Temperature	0°C – 50°C (32°F - 122°F)
Storage Temperature	-20°C–65°C (-4°F–149°F)
EMC Certifications	ClassB
MTBF*	> 50 years
PBSSF-M50 : LED Connector Specifications
LEDs	(1) LED Blue LED indicating Power /Bypass
Connectors	(2) Quad LC per segment RJ45 Control connector – Pin 5 5v, Pin 4 GND, pin 1 and pin 2 are shorted
