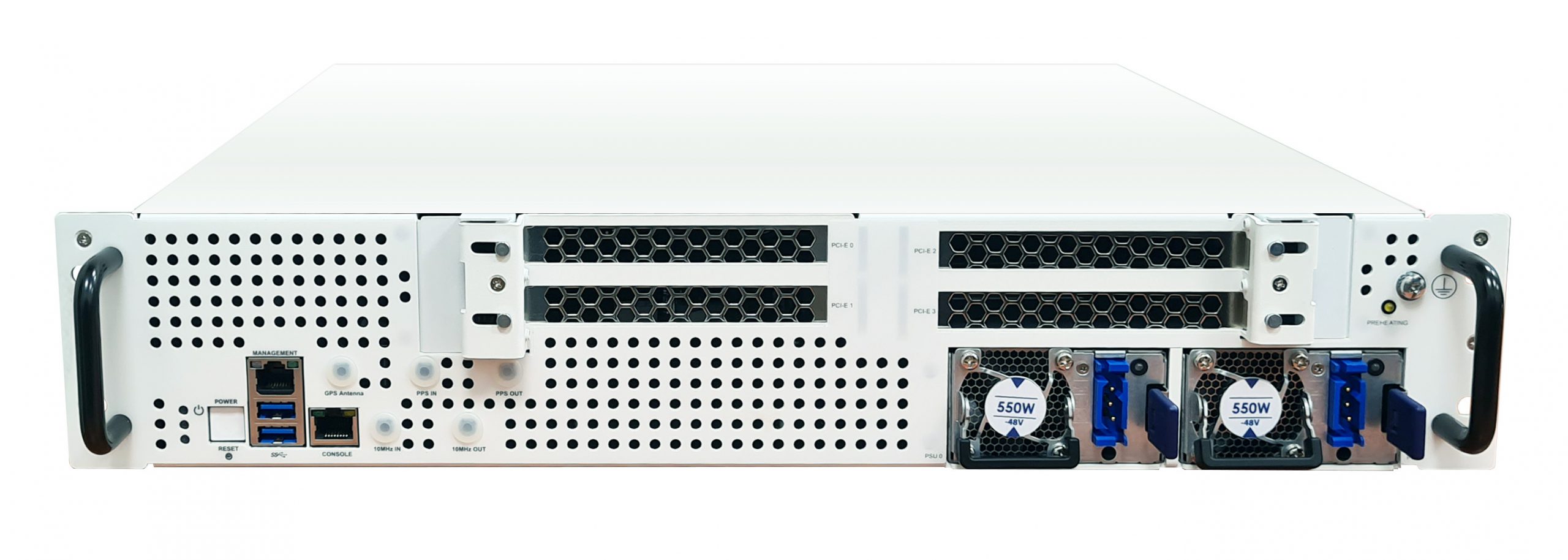

2U Vigo DU

Vigo DU 2U offers Edge Services for the Wireless 4G/5G market, the ability to host virtualize RAN (Radio Access Network) with a focus on L1 High-Phy and L2 MAC/RLC. Vigo design is optimized for the Disaggregated RAN market as a virtualized Distributed Unit (vDU) with acceleration to High-Phy and specifically FEC. Vigo also enables hosting a virtualized Central Unit (vCU) service that processes the L2.

Vigo design was designed in light of TIP and O-RAN recommendations and include capabilities dedicated for 5G market, such as nanosecond accurately time sync network interface cards and FEC offload.

Vigo DU 2U Intel® Xeon-D D2100

Vigo DU 2U Intel® Xeon-D D2100

General Technical Specifications

CPU: Intel Xeon D-2183IT/16C/2.2GHz/22MB/100W
BIOS: Insyde UEFI BIOS
BIOS Flash: SPI
Operating System: Linux/ CentOS
Memory: 4x 8GB DIMMs DDR4 with ECC
Storage: 120GB M.2 NVME
PCIe #1: x16, G3, FH ¾ Length, Dual slot, 225W slot
PCIe #2: x16, G3, FH ¾ Length, Dual slot, 225W slot
Host Mgmt.: • (1) 1GbE RJ45 on Management Card, Shared with BMC.
• (1) In line management via TimeSync NIC
USB 3.0: 2xFront, 2x Internal Vertical
Serial Console: RJ45 connector using RS232 signaling
BMC: µBMC
Power Supply: Dual redundant DC -48V hot swappable power supply 550W
Power Supply voltage rate: (-36v) – (-75v) DC
Power Consumption: Max: 350W, 7.3A@ -48VDC
Form Factor: • 2U rackmount Form Factor EIA 19”,
• Depth: 389/385mm, including mountings/ without mounting ears
Cooling: 5 FANs
Sensors/Monitors: Thermal protection
Critical Error Detection
Voltage monitors
Current protection
Operating Temperature: -20°C – 55°C (-4°F – 131°F)
Storage: -40°C–65°C (-40°F–149°F)
Operating Altitude: 10000 ft (3048 m)
Certificates: EMC:
EN55032: 2012 + AC (13)
FCC 47 CFR part 15 subpart B
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 55024: 2010
Safety
CB Scheme 62368-1
CB Scheme 60950-1
CE 62368-1
CE 60950-1
ROHS

Vigo DU 2U Intel® Xeon-D D2100

Vigo DU 2U Intel® Xeon-D D2100

P/N

Description

Notes

90500-0168-G05

DU, 2U,19″,D2183IT/16C/2.2GHz/100W,
DDR4/32GB/ECC,2xPSU

Includes:
2xDC power cable
