Palma Distributed Unit
2U Ice-Lake-SP (ICX-SP) Based

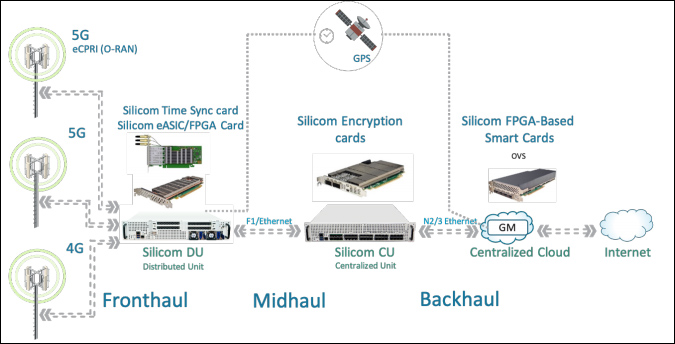

Designed for Edge computing services with a focus on 4G/5G DUs (Distributed Units), the Palma platform’s features a front panel IO for RU (Radio Unit) connectivity, together with Silicom Time Sync (STS) Technology, 5G L1 Acceleration, and Remote Management capabilities such as ZTP.
The Palma platform offers up to 32 cores per socket and higher performance per core than the previous generation.
It offers expanded memory bandwidth, with 16DIMMs per socket and PCIe-Gen 4.0 connectivity.
Palma’s I/O interface supports PTP (1588) and SyncE for Time Synchronization, with 1G/10G/25G and 100G connectivity as ordering options. Palma’s design also enables hosting of multiple eASIC / FPGA cards for service acceleration in both wireline and wireless deployments.
Palma Distributed Unit
2U Ice-Lake-SP (ICX-SP) Based
Palma’s special features include:
- Thermally optimized solution for E-temp
- DU-optimised: features TimeSync and FEC Accelerator on main board
- Simplest and most reliable design
Palma Distributed Unit
2U Ice-Lake-SP (ICX-SP) Based
General Technical Specifications |
|
| CPU: | Intel Xeon Ice Lake (ICX-SP), Socket P+, 4189 pin, Single Socket 32C/2.2GHz/270W/ XCC, Intel QDF Code QVM7 |
| Chipset: | LBG-R, C621A |
| Memory: | 128GB, with ECC 8x16GB@3200 installed Supports up to 16 DIMMs/ DDR4 with ECC,8 DDR channel controllers DDR Maximum Speed 3200MT/s |
| Storage: | 2TB 2.5” SATA HDD |
| PCI#1, 3: | PCIe x16G4 |
| PCI#2, 4: | PCIe x8G3 |
| BIOS: | UEFI(Vendor: American Megatrends Inc.|Version: 0312) |
| Operating System: | Linux/ CentOS |
| Host Eth. Ports: | 4 x I350 copper |
| Host Mgmt.: | (1) 1GbE RJ45 Management via BMC. Web interface(admin/admin) |
| USB 3.0: | 2x Front, 2xInternal |
| Host Serial Console: | Not Supported |
| Remote Host Access: | Access to Host video output via Eth. BMC (Web interface) |
| BMC: | AST2600 |
| TPM: | TPM 2.0 |
| Power Supply: | 1x AC power supply 1600W |
| Power Supply voltage rate: | 90 -220VAC |
| Form Factor: | 2U rackmount Form Factor EIA 19”, 670mm x 447mm x88mm•Depth: 670mm, Chassis does not include mounting ears |
| Weight: | ~20kg |
| Cooling: | 4FANs |
| Sensors/Monitors: |
Thermal protection Critical Error Detection Voltage monitors Current protection |
| Operating Temperature: | 10°C –35°C (50°F -95°F) |
| Storage: | -40°C–65°C (-40°F–149°F) |
SKU1 Features: |
|
| Time Sync SKU1: |
P410G8TS81-SR STS2 installed at Slot 3 Single slot, x8G4 at x16 mechanical connector 8Ports, 8x10G, 1xQSFP+, 4x SFP+ QSFP+: 10GBase-SR, 10GBase-LR SFP+: 10GBase-SR, 10GBase-LR |
| TimeSync SMA: | x5 SMAs: PPS in, PPS out, 10MHz in, 10MHz out, GNSS antenna |
| Profile: IEEE-1588 ( 2008) ( Annex-J.3 Delay Request-Respond Default Profile |
Ordinary Clock –Server Ordinary Clock-Client ( including slave only OC) Boundary Clock |
| Profile: IEEE-1588 ( 2008) Annex-J.4 Peer-to-Peer |
Ordinary Clock –Server Ordinary Clock-Client ( including slave only OC) Boundary Clock |
| Profile: ITU-T G.8265.1 Telecom Profile for Frequency Synchronization |
Telecom Grandmaster Telecom Slave |
| Profile: ITU-T G.8275.1 PTP Telecom Profile for Phase with Full timing Support |
Telecom Grandmaster ( T-GM) Telecom Boundary Clock ( T-BC) Telecom Time Slave Clock ( T-TSC) |
| Profile: ITU-T G.8275.2 PTP Telecom Profile for Phase with Partial timing Support |
Telecom Grandmaster ( T-GM) Assisted / Partial Telecom Boundary Clock ( T-BC) Assisted / Partial Telecom Time Slave Clock ( T-TSC) |
| Device Types: |
Ordinary Clock Boundary Clock Transparent Clock (peer-delay-message exchange) |
| References: | Default BMCA (Best Master Clock Algorithm) |
| Selection: | Alternate BMCA based on ITU G.781 -Synchronization layer functions for frequency synchronization based on the physical layer |
| On board FEC Accelerator: | Silicom PML 5G/4G FEC HW accelerator x16G3, P3IMB-M-P2 installed at slot 1 |
SKU2 Features: |
|
| Time Sync SKU2: |
Silicom TimeSync SKU2, 12 ports P425G410G8TS81-XR STS4 installed at Slot 3-4 Dual slot, x16G4 |
| Network Ports: |
12Ports, 1xQSFP+ , 4xSFP+, 1xQSFP28 QSFP+: 10GBase-SR, 10GBase-LR SFP+: 10GBase-SR, 10GBase-LR QSFP28: 25/10GBase-SR, 25/10GBase-LR |
| On board FEC Accelerator: | Silicom PML 5G/4G FEC HW accelerator x16G3, P3IMB-M-P2 installed at slot 1, same as SKU1 |
Palma Distributed Unit
2U Ice-Lake-SP (ICX-SP) Based
P/N |
Description |
Notes: |
| 90500-0169-E01 | DU, Palma A0, 2U,19″, 32C/2.2Ghz/270w, DDR4/128GB/ECC, 1xPSU, SKU1 | Includes:1xACpower cable, SKU1, 8 ports TimeSync |
| 90500-0169-E00 | DU, Palma A0, 2U,19″, 32C/2.2Ghz/270w, DDR4/128GB/ECC, 1xPSU, SKU2 | Includes:1xACpower cable, SKU2, 12 ports TimeSync |
